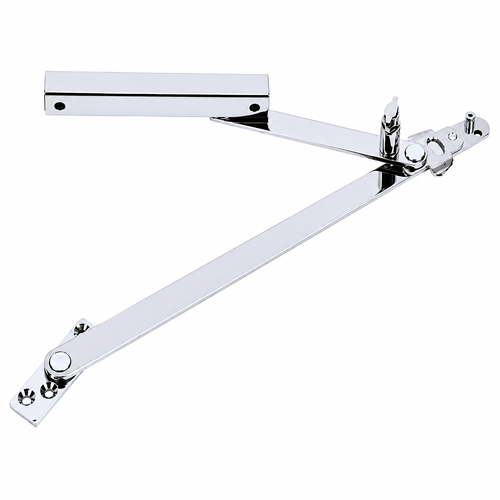

Glynn-Johnson 81 Series - Heavy Duty Surface Overhead Door Holders/Stops
Model: GLY-81
The 81 Series are surface-mounted holders and stops that offer the most effective shock-absorbing capacity, helping protect doors, frames and hardware. They provide rugged, heavy-duty door control...
Glynn-Johnson
Starting at
$437.00
$284.74
Glynn-Johnson 90 Series - Heavy Duty Surface Overhead Door Holders/Stops
Model: GLY-90
The 90 Series holders and stops are extremely versatile and can be used in conjunction with most surface-applied door closers. All models incorporate a heavy-duty channel/slide-arm design and offset...
Glynn-Johnson
Starting at
$323.00
$183.56
Glynn-Johnson 100 Series - Heavy Duty Concealed Overhead Door Holders/Stops
Model: GLY-100
The 100 Series concealed holders and stops provide the most attractive and reliable heavy-duty door control available. They are designed for installation on virtually all types of doors mounted on...
Glynn-Johnson
Starting at
$487.00
$316.84

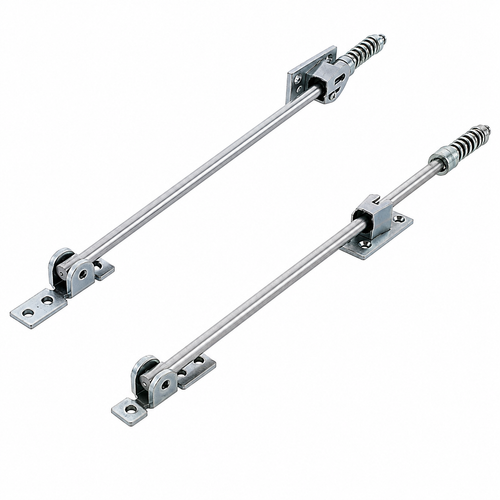

Glynn-Johnson 70 Series - Heavy Duty Surface Overhead Door Holders/Stops
Model: GLY-70
The 70 Series and 79 Series surface-mounted holders and stops are designed to meet the demands of high-traffic industrial applications. Compatible with various door closers, the models come with...
Glynn-Johnson
Starting at
$349.00
$227.08
Hager 7000 Series Grade 1 Heavy Duty Overhead Door Holders and Stops
Professional Concealed Mount Door Control Solution
The Hager 7000 Series delivers Grade 1 heavy duty performance for overhead door holding and stopping applications. These concealed mount units accommodate door thicknesses from 1-3/8" to 2-1/4" with adjustable opening angles from 85° to 110°. Available in five sizes from 27" to 52" door openings, each unit features BHMA and ANSI 156.8 compliance with UL/cUL listing for up to 3-hour fire rating applications.
Professional Features & Benefits
- Adjustable Opening Range: Fully adjustable from 85° to 110° opening angles to adapt to changing facility needs and door configurations.
- Door Thickness Compatibility: Standard 1-3/4" thick doors with optional accommodation for 1-3/8" to 2-1/4" door thickness range.
- Size Range Coverage: Five sizes available from Size 3 (27" to 30" opening) through Size 7 (44" to 52" opening) for comprehensive door width compatibility.
- Heavy-Duty Shock Absorption: Heavy shock absorber spring provides 5° to 7° compression before dead stop for controlled door operation and reduced impact stress.
- Concealed Installation Design: Slide track design with adjustable arms provides easy installation while maintaining clean door appearance.
- Fire Rating Compliance: UL/cUL listed for up to 3-hour fire rating with UL10C positive pressure and UL10B neutral pressure ratings for stop function.
- Grade 1 Certification: BHMA and ANSI 156.8 compliant construction ensures heavy duty performance for high-traffic commercial applications.
- Manufacturer Warranty: Five year warranty coverage for added confidence and protection in demanding applications.
Technical Specifications
- ADA Compliant: t: No
- ANSI/BHMA: BHMA & ANSI156.8 Compliant
- Certifications: BHMA and ANSI 156.8 Compliant
- Commercial/Residential: Commercial
- Door Thickness: 1-3/4" (44 mm) thick door - standard
- Duty Level: Heavy Duty
- Fasteners: Standard screw packet included for wood or metal door and frame applications
- Features: Commercial Applications Ideal for these Closers Include Schools, Medical Facilities, Institutions and Hospitals as Well as Office Buildings and any Entrance Door with High Foot Traffic
- Finishes: US10B, US32D (for stainless steel)
- Grade: Grade 1
- Handing: Non-handed
- Material: Steel, stainless steel
- Mounting Style: Concealed/Surface Mount
- Notes: Adjustable arms provide easy installation
- Size: Size 3 (SZ3) = 27" opening to less than 30"
- Subcategory: Door Closers
- Warranty: Five years
Installation & Operation
- Review manufacturer specifications and verify door preparation requirements including door thickness (1-3/4" standard, 1-3/8" to 2-1/4" optional) and opening width for proper size selection.
- Use manufacturer-provided templates or request special templating to mark mounting hole locations accurately on door and frame surfaces for concealed installation.
- Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions for slide track mounting system.
- Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications using provided standard screw packet.
- Adjust operational components including opening angle (85° to 110° range) and shock absorber spring tension for proper alignment and controlled stopping action.
- Test device operation to verify proper function throughout the full range of motion and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.
Professional Applications
- Educational Facilities and Schools
- Healthcare Institutions and Hospitals
- Medical Facilities and Clinics
- Commercial Office Buildings
- Institutional Buildings
- High-Traffic Entrance Doors
- Fire-Rated Door Assemblies
Why Choose Hager Quality?
Hager 7000 Series door holders and stops deliver professional-grade reliability with steel and stainless steel construction rated for Grade 1 heavy duty performance. BHMA and ANSI 156.8 compliance combined with UL/cUL fire rating certification ensures dependable operation in demanding commercial applications. Five year manufacturer warranty provides added confidence for installations requiring long-term performance and code compliance.
Door stop and holder designed to protect walls and doors while controlling door position in commercial and institutional openings.Support Resources
Manufacturer Resources
Product Specs
- Subcategory:
- Door Closers
- Fasteners:
- Standard screw packet included for wood or metal door and frame applications
- Grade:
- Grade 1
- ADA Compliant:
- No
- ANSI/BHMA:
- BHMA & ANSI 156.8 Compliant
- Features:
- Commercial Applications Ideal for these Closers Include Schools, Medical Facilities, Institutions and Hospitals as Well as Office Buildings and any Entrance Door with High Foot Traffic
- Product Group:
- Door Controls
- Product Subgroup:
- Door Closers
- Product Type:
- Door Closers
- Commercial/Residential:
- Commercial
- Duty Level:
- Heavy Duty
- Product Model:
- 7015/7016/7017
- Product Substrate:
- Steel, Stainless Steel
- Product Category:
- Door Controls
- Department:
- Door Hardware
