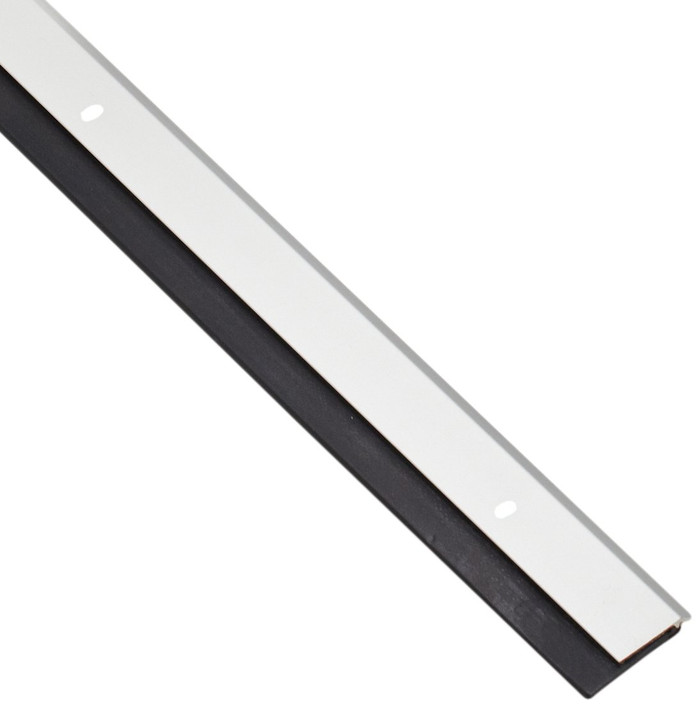

Hager 750S Door Bottom Sweep, Neoprene Insert

Hager 750S Door Bottom Sweep with Neoprene Insert 1/2" x 1/4"

(No reviews yet) Write a Review

Model: 750SN 36 CLR
$31.24
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$31.24
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Hager 750S Door Bottom Sweep with Neoprene Insert 1/2" x 1/4"

Professional Door Sealing Solution

The Hager 750S Door Bottom Sweep provides effective sealing for commercial door applications with a durable neoprene insert measuring 1/2" height by 1/4" width. This UL Listed door bottom sweep features multiple finish options including DBA, GLD, CLR, and BLA to match various door hardware configurations. The sweep includes #6 x 5/8" pan head sheet metal screws for secure installation and comes with a comprehensive five-year warranty for long-term reliability.

Professional Features & Benefits

  • Precise Insert Dimensions: 1/2" (13 mm) height and 1/4" (6 mm) width neoprene insert provides effective sealing against air infiltration and moisture.
  • UL Listed Fire Rating: Meets stringent fire safety requirements for commercial door applications and code compliance.
  • Multiple Finish Options: Available in DBA, GLD, CLR, and BLA finishes with coordinated fasteners to complement existing door hardware.
  • Quality Insert Materials: Neoprene (EDPM) and silicone insert options provide durability and weather resistance for demanding applications.
  • Complete Installation Hardware: Includes #6 x 5/8" pan head sheet metal screws with finish-matched plating for professional appearance.
  • Coordinated Fastener System: Mil finish includes zinc plated screws, color anodized versions include matching plated screws, and stainless steel versions include stainless steel screws.
  • Five-Year Warranty: Comprehensive warranty coverage provides confidence and protection for commercial installations.

Technical Specifications

  • Commercial/Residential: Commercial
  • Fasteners: #6 x 5/8" Pan head sheet metal screws furnished
  • Finishes: DBA, GLD, CLR, BLA
  • Fire Rating: UL Listed
  • Height: 1/2" (13 mm)
  • Inserts: Neoprene (EDPM), Silicone
  • Notes: Mil finish weatherstripping is supplied with zinc plated screws
  • Subcategory: Door Thresholds
  • Warranty: Five-Year Warranty
  • Width: 1/4" (6 mm)

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness and bottom clearance for proper sweep installation.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door bottom surface.
  3. Prepare door by drilling required holes as specified in manufacturer instructions for the provided #6 x 5/8" pan head sheet metal screws.
  4. Install mounting hardware and secure the sweep to door bottom per manufacturer torque specifications using the included fasteners.
  5. Adjust sweep position for proper contact with threshold or floor surface while maintaining smooth door operation.
  6. Test door operation to verify proper function and sealing effectiveness. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Hager Quality?

Hager door bottom sweeps deliver professional-grade sealing performance with UL Listed fire rating and durable neoprene insert construction. The comprehensive five-year warranty and multiple finish options ensure reliable performance and aesthetic compatibility in demanding commercial applications. Engineered with coordinated fastener systems and quality materials for dependable long-term service.

Product Specs

Product Group:
Door Trim and Accessories
Product Subgroup:
Door Thresholds
Product Type:
Door Bottom Sweeps
Commercial/Residential:
Commercial
Subcategory:
Door Thresholds
Product Category:
Door Trim and Accessories
Department:
Door Hardware

Hager 750SN 36 CLR – Frequently Asked Questions

1) Will the Hager 750S door sweep fit a 36 inch wide door?
The 750S comes in 36 inch and 48 inch lengths, so a standard 3-0 door takes the 36 inch part as-is. For a 48 inch opening, order the 48 inch. Sweeps of this style are cut to length on site with a hacksaw if the door is narrower than the stock size, so buying the next size up and trimming is the normal approach for an odd width.
2) What is the difference between the 750S sweep options with and without TEK screws?
Each length of the 750S is sold two ways: with TEK screws included or without. The sweep itself already ships with #6 x 5/8 inch pan head sheet metal screws, which are what you use into a wood or hollow metal door. Add the TEK screw option when you are fastening into heavier gauge metal and want self-drilling fasteners instead of pilot-drilling for the pan heads.
3) How big a gap under the door will the Hager 750S neoprene insert close?
The neoprene insert on the 750S measures 1/2 inch (13 mm) in height and 1/4 inch (6 mm) in width, so it takes up a modest gap between the door bottom and the threshold or floor. It is a surface-applied sweep that mounts to the face of the door bottom, and the mounting position is adjusted at install so the insert makes contact without dragging. If your undercut is well over half an inch, a sweep with this insert profile will not reach and you need a deeper-drop sweep or a raised threshold.
4) Can a door sweep be used on a fire rated door opening?
The Hager 750S is UL Listed, so it can be applied to fire rated door assemblies in commercial buildings. It is specified for commercial use rather than residential.
5) Do I need anything else to install a Hager 750S door bottom sweep?
Everything to mount it is in the box: the sweep with its neoprene insert plus #6 x 5/8 inch pan head sheet metal screws. You supply a drill for the pilot holes and a hacksaw if the sweep needs trimming to the door width. Hager publishes weatherstripping installation instructions covering the drilling and positioning steps.
6) Neoprene or silicone insert for a door sweep, which should I use?
The 750S line offers neoprene (EPDM) and silicone inserts. Neoprene is the general purpose choice and is what the 750S ships with here: it handles weather, air infiltration and moisture on exterior and corridor doors. Silicone is the one to specify when the opening sees higher heat or you want the seal to stay flexible at temperature extremes over long service.
7) Will one door sweep model work across a whole building's doors?
For a fleet of commercial openings the 750S standardizes well: two lengths cover 36 inch and 48 inch doors, the insert profile is the same 1/2 by 1/4 inch across them, and the finish is consistent at 689 aluminum painted. That means one part number pair and one install method for corridor, office, and exterior doors, which is what keeps a maintenance stock simple. Doors with unusually large undercuts are the exception and need a different sweep.
8) Is a door bottom sweep the same thing as a door shoe or an automatic door bottom?
No. The 750S is a surface-applied sweep: it screws to the face of the door near the bottom and its neoprene insert wipes the floor or threshold. A door shoe wraps the bottom edge of the door and needs the door removed or undercut to fit. An automatic door bottom is mortised or surface-mounted with a plunger that drops the seal only when the door closes, which is what you want when floor dragging is unacceptable. The sweep is the fastest retrofit of the three because nothing about the door itself changes.
9) What finish does the Hager 750S sweep come in, and do the screws match?
The 750S is stocked in 689 aluminum painted. Hager coordinates the fasteners to the finish: mil finish weatherstripping ships with zinc plated screws, color anodized versions ship with matching plated screws, and stainless versions ship with stainless screws, so the heads do not stand out against the sweep once it is on the door.
