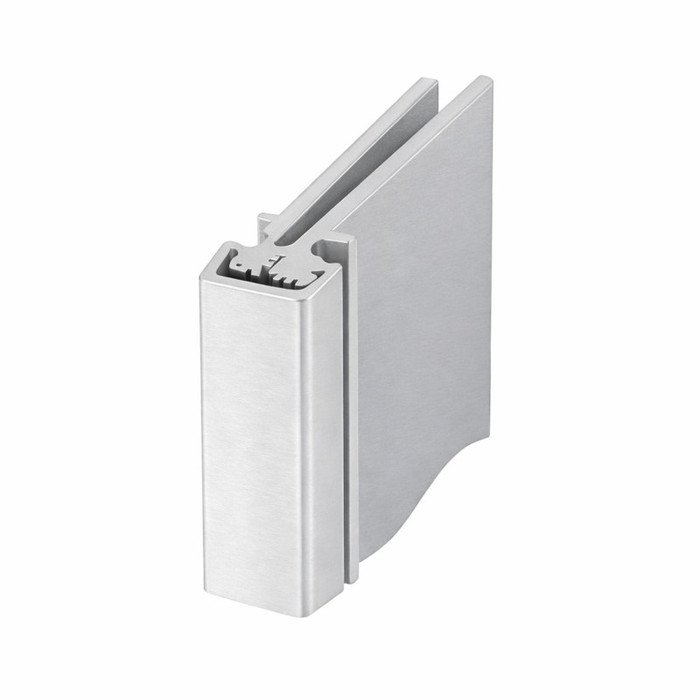

Hager 780-111LL Concealed Leaf Continuous Geared Hinge - Lead Lined for X-Ray Room Doors

Hager 780-111LL Concealed Leaf Continuous Geared Hinge - Lead Lined for X-Ray Room Doors

(No reviews yet) Write a Review

Model: HAG-780-111LL-83-CLR
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$290.40
$195.86
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Hager 780-111LL Concealed Leaf Continuous Geared Hinge - Lead Lined for X-Ray Room Doors

Specialized Hospital-Grade Continuous Hinge for Lead-Lined X-Ray Room Applications

The Hager 780-111LL concealed leaf continuous geared hinge is specifically engineered for hospital x-ray room doors requiring lead-lined construction. This heavy-duty aluminum hinge features a double row of fasteners designed to straddle lead lining, with 1/8" (3 mm) inset and 5/16" (8 mm) hinge side clearance. Constructed from aluminum 6063-T6 material, this hinge supports doors up to 1-3/4" (44 mm) thick and carries up to 3-hour fire rating for metal doors and 90-minute rating for wood composite doors with studs.

Professional Features & Benefits

  • Lead-Lined Door Compatibility: Double row of fasteners specifically designed to straddle lead lining in hospital x-ray room doors for secure mounting without compromising radiation protection.
  • Precision Clearances: 1/8" (3 mm) inset with 5/16" (8 mm) hinge side clearance plus standard lockside clearance for proper door operation and alignment.
  • Heavy-Duty Construction: Aluminum 6063-T6 material provides exceptional durability for high-frequency door applications while maintaining lightweight performance.
  • Fire Rating Compliance: Up to 3-hour fire rating for metal doors and 90-minute rating for wood composite doors with studs for critical safety applications.
  • Frame Alignment System: Integrated frame and door leaf alignment ribs ensure proper hinge and door location during installation and operation.
  • Flexible Length Options: Available in 79", 83", 85", 95", and 119" lengths to accommodate various door heights and applications.
  • Electric Modification Ready: Compatible with Power Transfer Preparation (EPT 2 or EPT 10), Electric Through-Wire (ETW), Electric Monitoring (EMN), and other electrical modifications for access control integration.
  • Lifetime Warranty: All Roton products have a lifetime warranty with one-year coverage on electric portions for added confidence and protection.
  • Standard duty for medium frequency doors. Heavy duty for high frequency doors or heavy, medium frequency doors. All for doors 1-3/4” (44 mm) thick;

Technical Specifications

  • Applications: Lead lined model for hospital x-ray room doors with double row of fasteners to straddle lead (specify "LL").
  • Clearance: 5/16" (8 mm) hinge side.
  • Commercial/Residential: Commercial
  • Door Reinforcement: None required to 200 lbs. Heavier weight use 16-gauge channel.
  • Electric Modifications: Power Transfer Preparation (EPT 2) or (EPT 10);
  • Fasteners: Standard: Dril-Kwik® – #12-24 X11/16" Flat Head Screws ;
  • Features: Standard duty for medium frequency doors. Heavy duty for high frequency doors or heavy, medium frequency doors. All for doors 1-3/4” (44 mm) thick ;
  • Finishes: CLR, DBZ, BLK;
  • Fire Rating: Up to 3-hour metal and 90 minute wood composite (with studs);
  • Length: 7 9", 83", 85", 95", 119"
  • Material: Aluminum 6063-T6
  • Notes: EPD: Roton Continuous Hinges Environmental Product Declaration
  • Options: Hospital Tip
  • Subcategory: Continuous Geared Hinges
  • Warranty: Wll Roton products have a lifetime warranty. When ordering electric Roton, the electric portion of the hinge has a one-year warranty ;

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness up to 1-3/4" (44 mm) and lead-lined door construction compatibility.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately, ensuring double row fastener pattern properly straddles lead lining material.
  3. Prepare door and frame by drilling required holes for Dril-Kwik #12-24 X 11/16" flat head screws or optional fastener configurations as specified.
  4. Install hinge using frame and door leaf alignment ribs to ensure proper positioning and secure with appropriate fasteners per manufacturer torque specifications.
  5. Verify 1/8" (3 mm) inset and 5/16" (8 mm) hinge side clearance plus standard lockside clearance for proper door operation.
  6. Test hinge operation throughout full range of motion and verify smooth operation without binding. Refer to manufacturer documentation for complete installation details and electric modification procedures if applicable.

Professional Applications

  • Hospital X-Ray Room Doors
  • Medical Imaging Facility Access Points
  • Radiation Therapy Treatment Rooms
  • Diagnostic Imaging Centers
  • Healthcare Facility Lead-Lined Barriers
  • Nuclear Medicine Department Doors
  • Veterinary Radiology Facilities

Why Choose Hager Quality?

Hager continuous geared hinges deliver professional-grade reliability with aluminum 6063-T6 construction and specialized lead-lined door compatibility for demanding healthcare applications. All Roton products carry a lifetime warranty with ANSI/BHMA A156.26 C compliance and up to 3-hour fire rating capability. Engineered specifically for hospital x-ray room requirements where radiation protection and dependable door operation are essential.

Hager's Roton® continuous geared hinge distributes door weight along the full hinge length, minimizing lateral wear in high-traffic applications.

Product Specs

Subcategory:
Continuous Geared Hinges
Warranty:
All Roton products have a lifetime. When ordering electric Roton, the electric portion of the hinge has a one Year.
Product Group:
Door Hinges and Pivots
Product Subgroup:
Continuous Hinges
Product Type:
Concealed Hinges
Commercial/Residential:
Commercial
Product Model:
780-111LL
Product Category:
Door Hinges and Pivots
Product Substrate:
Aluminum
Department:
Door Hardware

Hager HAG-780-111LL-83-CLR – Frequently Asked Questions

1) What makes the Hager 780-111LL different from a standard continuous geared hinge?
The LL suffix means lead lined. The 780-111LL uses a double row of fasteners that straddles the lead lining in an x-ray room door, so you can anchor the hinge without driving through and compromising the radiation barrier. Everything else about it is a standard concealed leaf Roton geared hinge: aluminum 6063-T6, full-length weight distribution, 1/8 inch inset. If the door has no lead in it, you do not need the LL version.
2) Will the Hager 780-111LL work on a door thicker than 1-3/4 inches?
No. The 780-111LL is built for doors 1-3/4 inches (44 mm) thick, and that is the only thickness it covers, standard duty or heavy duty. Lead-lined doors sometimes run thicker than that, so measure the actual leaf before you order rather than assuming a nominal 1-3/4.
3) What clearances do I need to cut in for a 780-111LL concealed leaf hinge?
Allow 5/16 inch (8 mm) on the hinge side plus your standard lockside clearance, and the hinge sets with a 1/8 inch (3 mm) inset. Frame and door leaf alignment ribs on the hinge locate it during install, so if the clearances are right the door hangs where it should without shimming.
4) Is the lead-lined Hager continuous hinge fire rated for an imaging suite corridor door?
Rated up to 3 hours on metal doors and 90 minutes on wood composite doors with studs. The 780-111LL also carries ANSI/BHMA A156.26 Grade C compliance. Confirm the rating on your door and frame assembly matches, since the assembly label governs the opening, not the hinge alone.
5) What lengths does the 780-111LL come in, and how do I pick one for my door height?
Five lengths: 79, 83, 85, 95 and 119 inches. Continuous hinges are sized to the door, not the frame, so pick the length that suits the door leaf height for your opening (79 and 83 cover typical 7 foot openings, 95 and 119 cover tall doors). Each length is offered in all three finishes.
6) Can I run access control wiring through the 780-111LL?
Yes. The hinge can be ordered with Power Transfer Preparation (EPT 2 or EPT 10), Electric Through-Wire (ETW), or Electric Monitoring (EMN) for card readers, electric strikes, or door position monitoring. Those are ordering modifications, so they have to be specified up front, not added in the field.
7) What screws come with the Hager Roton 780-111LL, and do I need anything else?
Standard fasteners are Dril-Kwik #12-24 x 11/16 inch flat head screws. Install with the manufacturer template so the double fastener rows land clear of the lead, and drill the door and frame to suit. A Hospital Tip is available as an option if the opening needs one.
8) Standard duty or heavy duty on a 780-111LL, which do I specify?
Standard duty covers medium frequency openings. Heavy duty is for high frequency doors, or for heavy doors at medium frequency, which is where most lead-lined x-ray doors land because of the lining weight. Both options are for 1-3/4 inch thick doors.
9) Will a continuous geared hinge hold up better than butt hinges on a heavy imaging room door?
That is the reason to use one. The Roton geared hinge carries the door weight along the entire length of the leaf instead of concentrating it at three or four butt hinges, which cuts the lateral wear and sag that heavy lead-lined doors cause on conventional hinges. It also runs concealed leaf, so the barrel is not exposed on the pull side.
10) What finishes does the Hager 780-111LL come in for matching other hardware in a healthcare facility?
Three: clear aluminum (CLR), dark bronze (DBZ), and black (BLK). All three are offered across every length from 79 to 119 inches, so you can standardize one finish across openings of different heights.
