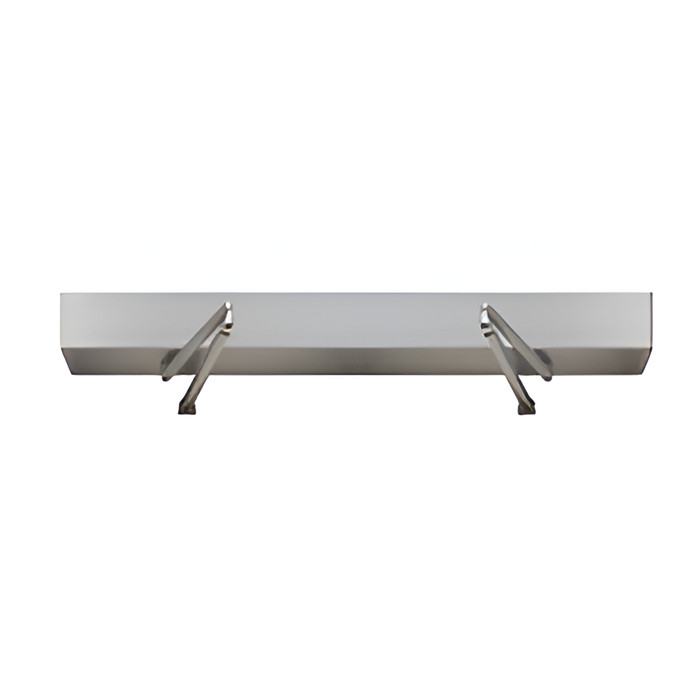

Hager 8300 Series 8321 36" Low Energy Power Push/Pull Double Egress

Hager 8300 Series 8321 36" Low Energy Power Push/Pull Double Egress

Adjustable Opening/Closing Speeds

Yes - Exceeds all ADA requirements.

Adjustable Swing Degree

80° to 140°

Applications

• For use on fire-rated and non-fire-rated openings
• Exterior Doors: Yes (Interior side only)
• Works on both outswing or inswing doors
• Adjustable Opening Angle: Max Degree of Swing Powered -180 degrees (push), 140 (pull)
• Opening Force: <15 lbs. - Exceeds all ADA requirements
• Closing Force: >8 lbs.

Box Quantity

1

Certifications

• ANSI Meets A156.19
• Complies with all U.S. and Canada ADA requirements for low energy operators
• UL/cUL (Fire rating) Listed for up to 3 hours
• UL10C Positive Pressure Rated
• UL325 Listed

Closing Force

>8 lbs.

Door Width

72", 84", 88", 96" (Non-Standard Sizes Available)

Electrical Specifications

• Power Requirements: 115 VAC 60 HZ
• Current Draw: 0.4 A to 1.2 A (Max) (Each Motor)
• Onboard Power Supply: 24 VDC 1 A (Each Motor)
• Electric Lock Relay Type: Form "C" SPDT (Each Motor)
• Lock Relay Rating: 5.0A @ 28 VDC (Each Motor)
• Fused Protection: 3.15A fuse (Each Motor)

Features

• Non-handed
• Operates as a manual closer with or without power
• Onboard power supply for accessories i.e. electric and magnetic locks, sensors, etc.
• Built-in adjustable door stop for protection against wind or abusive environments
• Blow open function for for smoke ventilation (alarm contacts)
• Equipped with cycle count
• Factory setting for ANSI 156.19 speed requirements AND hold time delay
• Night mode allows the exterior actuator to be deactivated by a rocker switch on the side of the operator
• On/Off/Hold Open Switch: Standard
• Fire Alarm input shunts swing activations until FACP is manually reset
• Memory is flash upgradeable

Finishes

• ALM, BLK (priced same as DBZ), DBZ (ships with black arm)
• Ships with ALM arms

Fire Rating

UL/cUL (Fire rating) Listed for up to 3 hours

How To Order

How to order form located in related files

Includes

Appropriate door signage included with each operator

Installation

Single person installation using pre-drilled mounting holes

Maximum Door Length

5'

Maximum Door Weight

350 lbs.

Notes

• Order form required for all Hager low energy operators. Order form can be found under Related Files. Please complete and submit with purchase order.
• For High usage openings or abusive environments, Hager recommend using a 7000 Series Overhead Stop.

Operating Temperature

-4°F to + 131°F

Product Description

Low Energy Auto Operator for Double Egress Door Openings. Simultaneous or Independent Applications.

Product Name

Double Egress Simultaneous/Independent Pair Operator

Product Number

8321

Programmable Functionality

• Boost on close - selectable power assist and additional force for the last 10 degrees of closing
• Adjustable Opening Force Limitation
• Adjustable Opening and Closing Speeds
• Adjustable Hold Open Time for Door Activators

Reveal

Double Egress Arm: 4"

Size

5" H x 4-1/2" D x Length equals opening width plus 3"

Warranty 2 Year

	Name	Download	File type

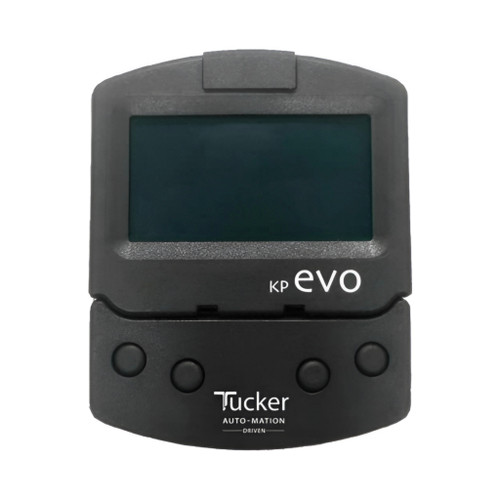

	8300 Series Programmer Instructions - I-EA00273-Rev0.pdf	2687 KB	.pdf
	8300 Series Quick Start Guide - I-EA00259-Rev01.pdf	329 KB	.pdf
	8300 Installation Instructions - I-EA00257-Rev2.pdf	989 KB	.pdf
	8300 Series Door Arm Assembly - S-EA00261-Rev1.pdf	263 KB	.pdf
	8300 Series Door Prep Drawing - S-EA00258-Rev2.pdf	455 KB	.pdf
	8300 Firmware Instructions - I-EA00397 - Rev 0.pdf	119 KB	.pdf

Related Files

	Name	Download	File type
	8302 Series Ordering Form - S-EAa00260-Rev3.pdf	168 KB	.pdf

Videos

	Name	Download	File type
	8300 Series Installation Video		Youtube
