Hager 8318 Low Energy Power Op...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$2,875.00
$2,100.42

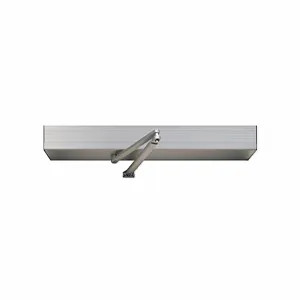

Hager 8318 Low Energy Power Operator for 36" Single Door Non-Handed

Hager 8318 Low Energy Power Operator for 36" Single Door Non-Handed

(No reviews yet) Write a Review

Model: 8318 PULL DBZ 36
Selected Finish is
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$2,875.00
$2,100.42
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Hager 8318 Low Energy Power Operator for 36" Single Door Non-Handed

Professional Automatic Door Operation Solution

The Hager 8318 Low Energy Power Operator provides reliable automatic door operation for 36" single doors with non-handed configuration. This single operator unit features a complete single cover design with included push arms (35mm spindle) and pull track arms (20mm spindle) for versatile installation options. Engineered for commercial applications requiring ADA-compliant low energy automatic door operation.

Professional Features & Benefits

  • Door Width Compatibility: Specifically designed for 36" single doors for precise fit and optimal performance.
  • Non-Handed Configuration: Universal design eliminates handing requirements for simplified ordering and installation flexibility.
  • Complete Operator Package: Single unit with integrated single cover provides streamlined installation and clean appearance.
  • Dual Arm Configuration: Includes both push arms with 35mm spindle and pull track arms with 20mm spindle for comprehensive door operation options.
  • Low Energy Operation: Meets ADA compliance requirements for safe automatic door operation in commercial environments.
  • Professional Construction: Engineered for reliable performance in demanding commercial door applications.

Technical Specifications

  • Subcategory: Door Trim & Accessories

Installation & Operation

  1. Verify electrical requirements match available power supply and confirm current capacity before proceeding with installation.
  2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
  3. Mount the operator unit in the specified location ensuring adequate clearance for arm movement, wiring access, and future service requirements.
  4. Install push arms with 35mm spindle and pull track arms with 20mm spindle according to door configuration and operational requirements.
  5. Route and connect wiring according to manufacturer wiring diagrams. Use appropriate wire gauge and connectors for the application.
  6. Configure operational settings including opening/closing speeds and hold-open timing per ADA requirements and application needs.
  7. Restore power and test all functions including normal operation, safety features, and integration with activation devices.
  8. Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.

Professional Applications

  • Commercial Office Building Entrances
  • Healthcare Facility Access Points
  • Educational Institution Doorways
  • Retail Store Entrances
  • Government Building Access
  • ADA Compliance Installations
  • Assisted Living Facilities

Why Choose Hager Quality?

Hager automatic door operators deliver professional-grade reliability with precision engineering designed for demanding commercial applications. The 8318 model provides dependable low energy operation that meets ADA compliance requirements while offering the flexibility of non-handed configuration for simplified installation and inventory management.

Low energy automatic door operator for ADA-compliant power-assisted door applications. Certified to ANSI A156.19.

Manufacturer Resources

Installation Instructions

Product Specs

Subcategory:
Door Trim & Accessories
Product Group:
Sensors, Switches, Relays, Timers
Product Subgroup:
Door Trim & Accessories
Product Type:
Touchless Actuators
Product Model:
8229
Product Category:
Sensors, Switches, Relays, Timers
Department:
Door Hardware

Hager 8318 PULL DBZ 36 – Frequently Asked Questions

1) Will the Hager 8318 low energy operator work on a 36 inch single door?
That is exactly what the 8318 is built for: a 36 inch single door. It ships non-handed, so one unit covers a left or right hand opening and you do not specify handing on the order. For openings wider than 36 inches or for a pair of doors, this is not the right unit.
2) Do I order the Hager 8318 as a push side or pull side operator?
Model is one of the two things you pick, PUSH or PULL, and it has to match which side of the door the operator sits on. Push side uses the push arm with a 35mm spindle. Pull side uses the pull track arm with a 20mm spindle. Walk the opening first: if the operator header lands on the side the door swings away from you, order PUSH; if the door swings toward you from the operator side, order PULL.
3) Does the Hager 8318 meet ADA requirements for an automatic entrance?
The 8318 is a low energy power operator certified to ANSI A156.19, which is the standard that governs low energy power operated doors and the one specified for ADA compliant power assist entrances. Opening and closing speeds and hold open time are set during commissioning to the values that standard requires.
4) Does the Hager 8318 come with the arms, or do I order those separately?
Arms are included. The 8318 ships as a single operator unit with a complete single cover, push arms with the 35mm spindle and pull track arms with the 20mm spindle in the package. What is not part of the operator is the activation side of the job: you still need to spec your actuators, whether wall push plates or touchless, plus the wiring to them.
5) What spindle size do the Hager 8318 arms use?
Two spindle sizes are in play on the 8318, and they are not interchangeable between arm types. The push arm runs a 35mm spindle; the pull track arm runs a 20mm spindle. If you are replacing an arm or ordering a spare, match the spindle to the arm type you have mounted, not to the operator model number.
6) What finishes does the Hager 8318 operator cover come in?
Two: 689 aluminum painted and dark bronze. Both are offered in the push and the pull configuration, so the finish choice does not restrict which arm setup you can order. Pick 689 to blend with clear anodized aluminum storefront, dark bronze to match bronze anodized frames.
7) Should I use a low energy operator like the Hager 8318 or a full power automatic operator?
Low energy is the right call when the door is activated by a person pressing a wall switch or touchless actuator, and traffic is moderate: office and healthcare entries, restrooms, classroom and assisted living doors. It opens slowly enough that it does not need the guide rails and presence sensors a full power automatic entrance requires under its own standard. If you have a high traffic storefront where the door must open on approach with no one touching anything, that is a full power application, not an 8318.
8) Where do I find the mounting dimensions and wiring diagram for the Hager 8318?
Hager publishes installation instructions for the operator under document I-EA00259, hosted at zensupply.com/content/pdf/hager/I-EA00259-Rev01.pdf. That is where the header mounting layout, arm setup for push versus pull, and the wiring connections live. Pull it before you cut the header or run conduit, and confirm the available power and current capacity against it.
9) Can one Hager 8318 operator be stocked for both left hand and right hand doors in a building?
Yes, and that is the practical reason to standardize on it across a property. The 8318 is non-handed, so a single unit covers either swing and you carry one part number instead of two. What you do still have to match per opening is the push or pull model and the finish, so a facility with a mix of approach sides needs both models on the shelf.
