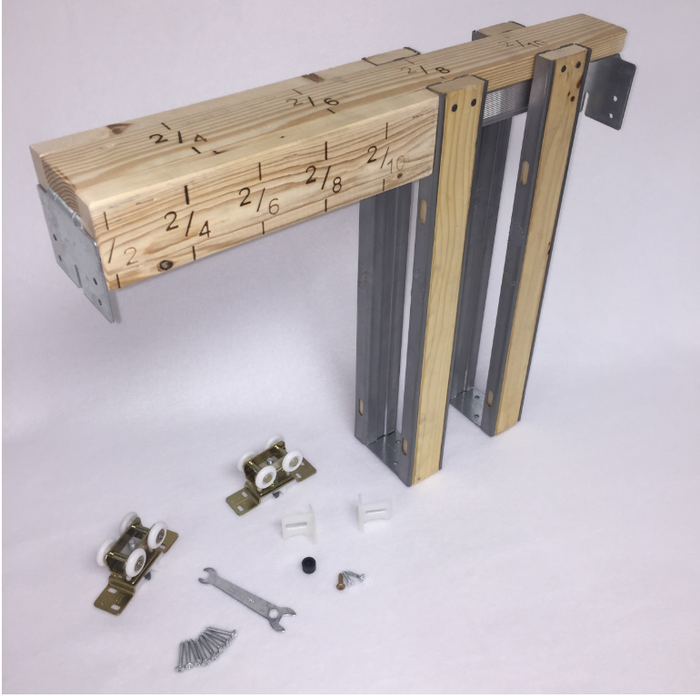

Hager 9600 Commercial Series Pocket Door Frame Kit for 3'0" Doors up to 150 lbs

Professional Pocket Door Installation Solution

The Hager 9600 Commercial Series Pocket Door Frame Kit provides a complete installation solution for commercial pocket door applications. This Grade 1 rated system accommodates doors up to 3'0" (914 mm) wide and 9'0" (2743mm) tall with door thickness ranging from 1-3/8" to 1-3/4" (35mm - 44mm). The kit supports maximum door weights up to 150 lbs (68 kg) and meets ANSI A156 14 Grade 1 standards with ADA compliance for professional commercial installations.

Professional Features & Benefits

  • Door Compatibility: Accommodates doors up to 3'0" (914 mm) wide and 9'0" (2743mm) tall with 1-3/8" to 1-3/4" (35mm - 44mm) thickness for versatile commercial applications.
  • Heavy-Duty Load Capacity: Supports maximum door weight of 150 lbs (68 kg) for substantial commercial door installations.
  • V-Groove Jump-Proof Track: Aluminum track construction with v-groove design prevents door derailment for reliable long-term operation.
  • Pre-Assembled Header System: Pre-assembled header assembly enables quick installation and reduces on-site assembly time.
  • Split Stud Construction: Steel-encased wood split studs provide rigidity and prevent fastener penetration into the pocket for structural integrity.
  • Easy Door Access: Simple door installation and removal design facilitates painting and repair maintenance without frame disassembly.
  • Grade 1 Certification: ANSI A156 14 Grade 1 rating and ADA compliance ensure code compliance for commercial applications.
  • Bi-Parting Capability: Compatible with Hager Double Pocket Door Kit 9639 for bi-parting door configurations and large doorway applications.

Technical Specifications

  • Case Quantity: 1
  • Certifications: ADA Compliant
  • Door Specifications: Up to 3'0" (914 mm) wide and 9'0" (2743mm)
  • Door Thickness: For doors 1-3/8" - 1-3/4" (35mm - 44mm) thick
  • Installation: For Bi-Parting Doors use Hager Double Pocket Door Kit 9639 (sold separately); Joins 2 pocket door frames to make one large doorway. Rough opening width changes to 4 times one door width. See Related Files for additional information.
  • Maximum Door Weight: 150 lbs (68 kg)
  • Notes: For kit contents see Installation Instructions
  • Options: Soft Close mechanism (1-269-8651) is available, sold separately. See Related Files for additional information. (Use of Soft Close mechanism exceeds ADA 5 lb. of opening force threshold)
  • Subcategory: Pocket Door Frame Kits

Installation & Operation

  1. Review manufacturer specifications and verify rough opening dimensions accommodate the door size and frame requirements including proper header support.
  2. Install the pre-assembled header assembly by attaching to rough-in framing at both ends per manufacturer specifications.
  3. Position and secure split studs to the header assembly using appropriate nails or screws as specified in installation instructions.
  4. Install the v-groove aluminum track system ensuring proper alignment and smooth operation throughout the door travel path.
  5. Mount door hardware and hang the door according to manufacturer guidelines, verifying proper clearances and smooth operation.
  6. Test door operation through complete open and close cycles, making adjustments as needed. Refer to manufacturer documentation for complete installation details and kit contents.

Professional Applications

  • Commercial Office Buildings
  • Healthcare Facilities
  • Educational Institutions
  • Retail Establishments
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings
  • Space-Efficient Interior Design Solutions

Why Choose Hager Quality?

Hager 9600 Commercial Series pocket door frame kits deliver professional-grade reliability with steel-encased wood split stud construction and v-groove jump-proof aluminum track rated for 150 lb door capacity. ANSI A156 14 Grade 1 certification and ADA compliance ensure code-compliant installations for demanding commercial applications. The pre-assembled header system and easy door access design provide efficient installation and long-term maintenance convenience for professional contractors.

Commercial-grade sliding door hardware with jump-proof box track and self-aligning wheel systems. Meets ANSI requirements.

Product Specs

Subcategory:
Pocket Door Frame Kits
Product Group:
Door Trim and Accessories
Product Subgroup:
Door Trim & Accessories
Product Type:
Pocket Door Frame Kits
Product Model:
9600
Product Category:
Door Trim and Accessories
Department:
Door Hardware

Hager 9628CS – Frequently Asked Questions

1) Will the Hager 9600 pocket door frame kit handle a solid core 3'0" door?
The Hager 9600 Commercial Series pocket door frame kit is rated to 150 lbs (68 kg) maximum door weight, and takes doors up to 3'0" (914 mm) wide and 9'0" (2743 mm) tall. A solid core wood door at 3'0" x 7'0" typically lands well under that ceiling, so the kit covers it. Weigh the leaf first if it is a heavy hardwood, glass, or lead-lined door, because 150 lbs is a hard limit on the track and hanger system, not a nominal figure.
2) What door thickness does the Hager 9600 pocket door kit accept?
Doors from 1-3/8" to 1-3/4" (35mm to 44mm) thick hang in the 9600 kit. That spans both the common 1-3/8 inch interior leaf and the 1-3/4 inch commercial thickness, so a standard commercial door and a lighter interior door both work in the same frame. A thicker door than 1-3/4 inches will not clear the pocket.
3) Which Hager 9600 model do I order for my rough opening height?
The 9600 series is ordered by door height, and there are four: the 9631CS for 80 inch doors, the 9630CS for 84 inch, the 9629CS for 96 inch, and the 9628CS for 108 inch. All four carry the same 150 lb capacity. Pick the model that matches the door height you are hanging, since the header and split stud lengths are cut to that height.
4) Can I add soft close to a Hager 9600 commercial pocket door?
A soft close mechanism, part 1-269-8651, is available for the 9600 and is sold separately, so it is not in the box with the frame kit. It is worth ordering it at the same time as the frame if you want it, since retrofitting means getting back into the pocket. Note the tradeoff: soft close takes the opening force above the ADA 5 lb threshold, which rules it out on a barrier-free opening.
5) Will a pocket door frame kit like the Hager 9600 keep the door from jumping the track?
The 9600 runs an aluminum track with a v-groove jump-proof profile, which keeps the wheels captured in the groove instead of riding on a flat surface where a shove or a slam can lift them off. That is the difference between a commercial pocket frame and a light residential one. Steel-encased wood split studs back it up, adding rigidity to the pocket walls and stopping fasteners driven into the wall from penetrating into the pocket and hitting the door.
6) Is the Hager 9600 pocket door frame kit suitable for a healthcare or school corridor, or is it a residential product?
It is a commercial product. The 9600 Commercial Series carries ANSI A156.14 Grade 1, the highest of the ANSI grades for that standard, and is ADA compliant, which is what specifiers for healthcare facilities, schools, offices, retail, government buildings and multi-tenant residential need on the drawing. Grade 1 in the ANSI system is the heavy commercial duty tier rather than the residential one.
7) Does the Hager 9600 kit include the door and the pull hardware?
The 9600 is a frame kit: pre-assembled header, v-groove aluminum track, and steel-encased wood split studs. The door itself is not part of it, and the soft close mechanism (1-269-8651) and the 9639 double kit for bi-parting are both separate orders. For the exact piece count in the carton, the installation instructions that ship with the kit list the contents.
8) Do I have to assemble the Hager 9600 header on site?
No, the header assembly ships pre-assembled on the 9600. Installation is: hang the header on the rough framing at both ends, fasten the split studs to it, set the v-groove aluminum track, then mount the hardware and hang the leaf. It cuts the on-site build time compared to a stick-built pocket frame.
9) Can the door be taken out of a Hager 9600 pocket frame for painting or repair?
Yes. The 9600 is built so the door installs and removes without taking the frame apart, which is what a property manager or maintenance crew wants when a leaf needs refinishing or a wheel needs service. On a stick-built pocket you are often opening drywall to do the same job.
