Professional Pocket Door Installation Solution

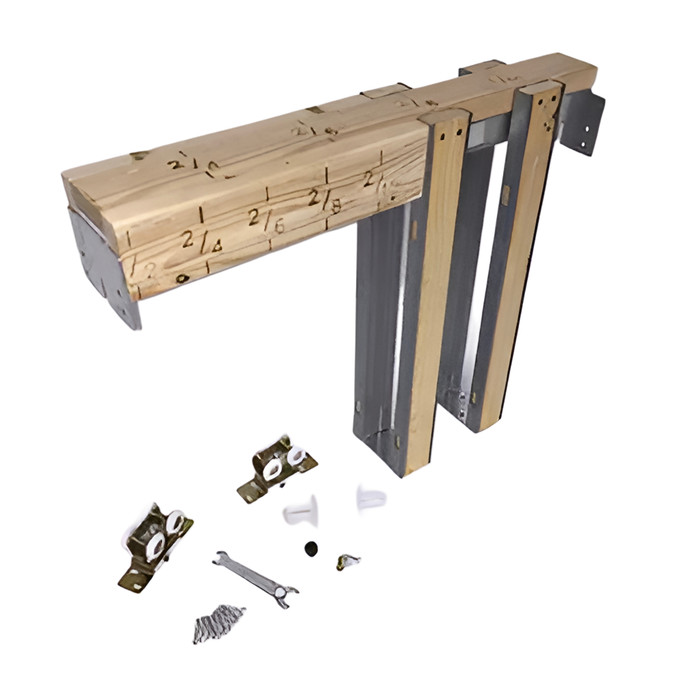

The Hager 9800 Heavy-Duty Series Pocket Door Frame Kit provides a complete installation solution for doors up to 4'0" wide x 8'0" high with a maximum weight capacity of 250 lbs. This Grade 1 certified system features heavy-duty aluminum track construction and pre-assembled header assembly for efficient installation. The kit accommodates door thickness from 1-3/8" to 1-3/4" and meets ANSI/BHMA 156.14 performance requirements with testing exceeding 100,000 operational cycles.

Professional Features & Benefits

• Maximum Door Capacity: Supports doors up to 4'0" wide x 8'0" high with 250 lb maximum weight for versatile commercial applications.
• Door Thickness Compatibility: Accommodates doors from 1-3/8" to 1-3/4" thick for standard commercial door specifications.
• Heavy-Duty Performance: Exceeds 100,000 operational cycles meeting ANSI/BHMA 156.14 Grade 1 requirements for demanding commercial use.
• Professional Track System: Heavy-duty V-groove jump-proof aluminum track provides smooth, reliable operation and prevents derailment.
• Pre-Assembled Design: Pre-assembled header assembly reduces installation time and ensures proper alignment from the start.
• Reinforced Construction: Steel-encased split studs provide rigidity and prevent fastener penetration into the pocket cavity.
• Flexible Installation: Split studs can be nailed or screwed to track header with track header unit attaching to rough framing at both ends.
• ADA Compliance: Meets ADA requirements for accessible door operation in commercial applications.

Technical Specifications

• Certifications: Meets performance requirements of ANSI/BHMA 156.14 (Grade 1) for sliding doors by exceeding 100,000 cycles in operation.; Type: D02311-250; ADA Compliant
• Installation: For Bi-Parting Doors use Hager Double Pocket Door Kit 9639 (sold separately); Joins 2 pocket door frames to make one large doorway. Rough opening width changes to 4 times one door width
• Notes: Compares to: Stanley PDF250, Lawrence PF619
• Options: See Related Files for additional information.; Available in 102" (2591 mm) at an extended lead time. Please contact Hager customer service for additional details.
• Size: See size option chart under Related Files
• Subcategory: Pocket Door Frame Kits

Installation & Operation

1. Verify rough opening dimensions and ensure adequate structural support for the 250 lb door weight capacity and frame assembly.
2. Install the pre-assembled header assembly by attaching the track header unit to rough framing at both ends per manufacturer specifications.
3. Position and secure the three pairs of wood split studs with wood inserts using nails or screws to the track header assembly.
4. Verify the heavy-duty V-groove aluminum track is properly aligned and level throughout the installation length.
5. Install door hardware and hang the door on the track system, ensuring smooth operation throughout the full range of motion.
6. Test door operation to verify proper function and make final adjustments as needed. The system allows easy door removal for painting and repair when required.

Professional Applications

• Commercial Office Buildings
• Healthcare Facilities
• Educational Institutions
• Retail Establishments
• Multi-Tenant Residential Properties
• Industrial and Warehouse Facilities
• Government and Municipal Buildings

Why Choose Hager Quality?

Hager 9800 Heavy-Duty Series pocket door systems deliver professional-grade reliability with steel-encased construction and heavy-duty aluminum track rated for over 100,000 operational cycles. The Grade 1 certification and ADA compliance ensure dependable performance in demanding commercial applications where smooth, reliable door operation is essential.
