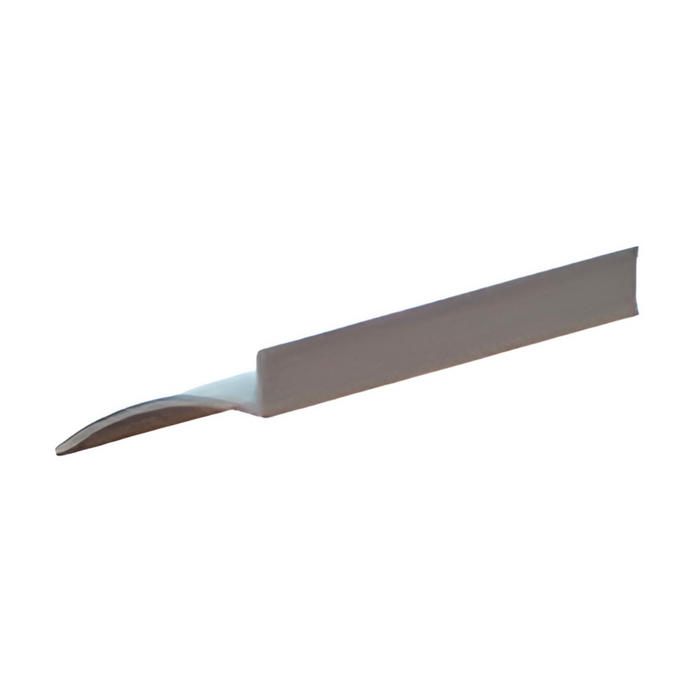

Hager 810S Overhead Rain Drip Cap with Milled Aluminum Finish

Hager 810S Overhead Rain Drip Cap with Milled Aluminum Finish

(No reviews yet) Write a Review

Model: 810S 40 MIL
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$24.90
$20.81
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Hager 810S Overhead Rain Drip Cap with Milled Aluminum Finish

Professional Weather Protection for Door Frames

The Hager 810S overhead rain drip cap provides essential weather protection for commercial door installations with its durable milled aluminum construction. Measuring 2-1/2" wide by 1-1/2" high, this drip cap effectively channels water away from door frames and openings. Complete with #6 x 5/8" pan head sheet metal screws for secure installation, and backed by Hager's five-year warranty for long-term reliability.

Professional Features & Benefits

  • Precise Dimensions: 2-1/2" width by 1-1/2" height (63.5mm x 38.1mm) provides optimal coverage for standard door frame applications.
  • Durable Aluminum Construction: Milled aluminum finish resists corrosion and weathering for long-lasting exterior performance.
  • Complete Hardware Package: Includes #6 x 5/8" pan head sheet metal screws for immediate installation without additional fastener purchases.
  • Multiple Finish Options: Available in MIL (Milled), DBA, and BLA finishes to coordinate with existing door hardware.
  • Manufacturer Warranty: Five-year warranty provides added confidence and protection for commercial installations.
  • Weather Protection Design: Overhead rain drip configuration effectively diverts water away from door frames and thresholds.

Technical Specifications

  • Commercial/Residential: Commercial
  • Fasteners: #6 x 5/8" Pan head sheet metal screws furnished
  • Finishes: MIL, DBA, BLA
  • Height: 1-1/2" (38.1 mm)
  • Subcategory: Door Thresholds
  • Warranty: Five-Year Warranty
  • Width: 2-1/2" (63.5 mm)

Installation & Operation

  1. Review manufacturer specifications and verify door frame construction is suitable for drip cap mounting. Confirm adequate clearance above door opening.
  2. Position drip cap above door frame ensuring proper overhang for effective water diversion. Mark mounting hole locations using provided fasteners as guides.
  3. Pre-drill pilot holes appropriate for sheet metal screw installation in frame material (wood, metal, or composite).
  4. Secure drip cap using provided #6 x 5/8" pan head sheet metal screws, ensuring even contact across mounting surface.
  5. Verify proper alignment and adequate water runoff slope away from door opening.
  6. Test water diversion effectiveness and make adjustments as needed. Refer to manufacturer documentation for complete installation details and specifications.

Professional Applications

  • Commercial Office Building Entrances
  • Educational Facility Doorways
  • Healthcare Institution Exterior Doors
  • Retail Store Entry Systems
  • Industrial Facility Access Points
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Hager Quality?

Hager door trim and accessories deliver professional-grade reliability with durable milled aluminum construction designed for demanding commercial applications. The five-year warranty demonstrates Hager's commitment to long-term performance and customer satisfaction. Engineered for exterior weather protection where dependable water diversion is essential for maintaining door frame integrity.

Manufacturer Resources

Installation Instructions

Product Specs

Product Group:
Door Trim and Accessories
Product Subgroup:
Door Thresholds
Product Type:
Door Bottom Sweeps
Commercial/Residential:
Commercial
Subcategory:
Door Thresholds
Product Category:
Door Trim and Accessories
Department:
Door Hardware

Hager 810S 40 MIL – Frequently Asked Questions

1) What size door opening does the Hager 810S rain drip cap cover, and what lengths does it come in?
The 810S drip cap comes in two lengths, 40 inches and 76 inches. The 40 inch length covers a standard single door head; the 76 inch length runs across a pair of doors or a door with a sidelite. Pick the length that spans the full frame width plus the overhang you want past each jamb, since the cap has to shed water clear of the frame rather than stop at it.
2) How far does the Hager 810S drip cap project from the door frame?
The 810S profile measures 2-1/2 by 1-1/2 inches (63.5mm x 38.1mm). That 2-1/2 inch dimension is the width of the cap, so it stands out from the face of the frame far enough to throw runoff past the head, and the 1-1/2 inch dimension is the height of the leg that fastens to the frame. Check your head clearance above the opening before you set the mounting line, especially under a canopy or a shallow soffit.
3) Do I need to buy screws for the Hager 810S drip cap, or are fasteners included?
Fasteners come with it. Hager furnishes #6 x 5/8 inch pan head sheet metal screws with the 810S. Those are short screws, so pre-drill pilot holes sized for sheet metal screws in whatever the head is built from, wood, hollow metal, or composite. If you are anchoring into masonry above the frame, you will need your own anchors; the supplied screws are not for that.
4) Is a rain drip cap the right fix for water getting under my exterior door, or do I need a door bottom sweep?
They solve two different leaks. The 810S is an overhead cap mounted above the opening, and it intercepts water running down the wall and throws it clear of the head so it never reaches the top of the door or the frame joint. Water blowing in at the floor line is a different problem and needs a door bottom or sweep at the bottom rail, plus a threshold. On an exposed entrance with no canopy, most installers run both: the cap at the head, a sweep and threshold at the sill.
5) Where exactly should the 810S drip cap be mounted above the door?
It mounts on the wall or frame head above the opening, high enough that its 1-1/2 inch mounting leg sits on solid backing and the 2-1/2 inch projection overhangs the head of the frame. Set it with a slight fall away from the opening so runoff sheds forward instead of pooling behind the leg, mark the holes off the cap itself, then pre-drill before driving the supplied screws so the leg pulls flat across the whole length. Hager publishes installation instructions for it as a PDF.
6) Will one 810S drip cap cover a pair of doors?
Yes, use the 76 inch length. A standard pair of 3 foot doors is roughly 72 inches of opening plus the frame, so the 76 inch cap runs the full width in one piece with no seam over the center of the opening. Butting two 40 inch pieces together would put a joint right where the meeting stiles are, which is the worst place for one on a weather detail.
7) Is the Hager 810S drip cap rated for commercial use, and will the aluminum hold up outdoors?
Commercial grade. Hager lists the 810S as a commercial product, and it is milled aluminum, which is the mill finish of the extrusion itself rather than a coating that can chip or peel at the fastener holes. Aluminum does not rust, so it holds up on exterior openings at office entrances, schools, healthcare doors, and multi tenant buildings. Milled aluminum weathers to a duller gray over time, which matters if you are matching it to a new adjacent cap years later.
8) Can I get the Hager 810S drip cap in a dark finish to match bronze or black door hardware?
Hager builds the 810S in three finishes: MIL (milled aluminum), DBA, and BLA. Milled aluminum is the mill finish of the extrusion. If the rest of your entrance hardware is dark, DBA or BLA is what you want rather than trying to paint the mill finish, since paint on bare aluminum needs an etch primer to stay put.
