The Hager RC1741 is a full mortise plain bearing residential hinge featuring a 1/4" radius round corner design and 5-knuckle construction. Built from steel with steel pin and .085" gauge thickness, this medium-duty hinge meets ANSI A5134 certification standards. Available in multiple sizes including 3" x 3", 3-1/2" x 3-1/2", and 4" x 4" configurations with reversible operation and removable pin design.

Professional Features & Benefits

• Multiple Size Options: Available in 3" x 3", 3-1/2" x 3-1/2", and 4" x 4" sizes to accommodate various door and frame requirements.
• Round Corner Design: 1/4" (6mm) radius round corners provide smooth installation and professional appearance while reducing stress concentration points.
• Heavy-Duty Steel Construction: Steel construction with steel pin and .085" gauge thickness delivers reliable performance for residential applications.
• Reversible Operation: Field-reversible design allows installation on left-hand or right-hand doors for maximum installation flexibility.
• 5-Knuckle Configuration: Five-knuckle design provides enhanced load distribution and smooth door operation throughout the swing cycle.
• Removable Pin Design: .234" diameter removable pin allows for easy door removal when needed for maintenance or replacement.
• Complete Installation Package: Includes appropriate fasteners and comes packaged 2 hinges per box with wood screws for immediate installation.
• ANSI Certification: ANSI A5134 certification ensures compliance with industry standards for residential hinge applications.
• Reversible. Round corners 1/4" (6 mm) radius. Removable pin.

Technical Specifications

• ANSI/BHMA: ANSI A5134
• Box Quantity: 2 each
• Case Quantity: 3-1/2": 100 each / 4": 50 each
• Certifications: ANSI A5134
• Commercial/Residential: Residential
• Corner Style: Round
• Duty Level: Medium Duty
• Fasteners: Size - Wood 3/4" x 9" FH
• Features: Full Mortise, Spring Hinge, 5/8" Round Corner Radius, Standard Weight
• Finishes: 3.5 x 3.5 - USP, 1D, 2D, US3, 3LB, US4, ABA/US5, US10A, US10R, US15, AN/US15A, US26, US26D; 4 x 4 - USP, 1D, 2D, US3, 3LB, US4, ABA/US5, US10A, US10R, US15, AN/US15A, US26, US26D
• Gauge: .085"
• Knuckles: 5
• Material: Steel with steel pin
• Notes: Hager residential hinges are provided without lubrication. We recommend lubricating the hinges after installation.; All residential hinges conform to the "Light Weight" requirements of ANSI A156.1.
• Packaging: 2 pack with screws
• Pin Diameter: .234"

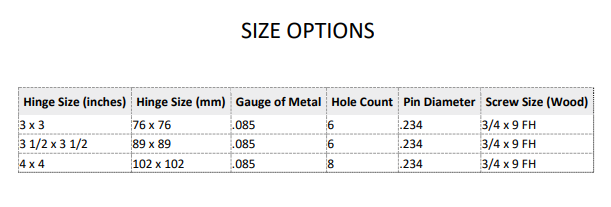

• Size: 3" X3", 3-1/2" X3-1/2", 4" X4"
• Subcategory: Full Mortise Hinges

Installation & Operation

1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and frame surfaces.
3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

• Residential Entry Doors
• Interior Passage Doors
• Bedroom and Bathroom Doors
• Closet and Utility Room Doors
• Multi-Family Housing Units
• Light Commercial Residential-Style Applications
• Door Replacement and Renovation Projects

Why Choose Hager Quality?

Hager RC1741 hinges deliver professional-grade reliability with steel construction and .085" gauge thickness rated for medium-duty residential applications. ANSI A5134 certification ensures compliance with industry standards for dependable performance. Engineered for demanding residential applications where smooth operation and long-term durability are essential.
