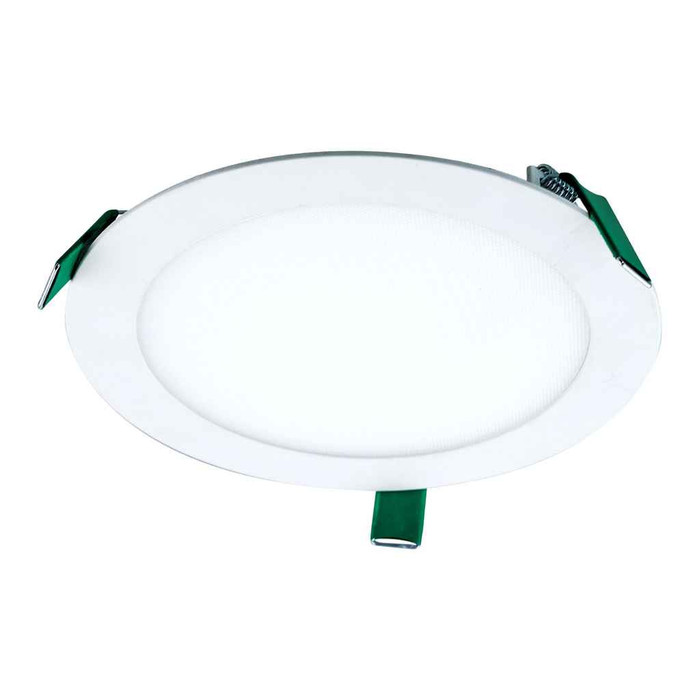

HALO HLB8 Direct Mount LED Downlight System

HALO HLB8 8-Inch Direct Mount LED Downlight System with 5-Color Field-Selectable CCT

(No reviews yet) Write a Review

Model: HLB8169FS1EMWR

In Stock (leaves warehouse same day if ordered before 3pm ET)

$82.16
$73.91
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

HALO HLB8 8-Inch Direct Mount LED Downlight System with 5-Color Field-Selectable CCT

Professional LED downlight system with field-selectable color temperature and wet location rating

The HALO HLB8 8-Inch Direct Mount LED Downlight System delivers professional lighting performance with versatile field-selectable color temperature options. This wet location listed LED downlight features 5-color Field-SeleCCTable technology (27/30/35/40/5000K) with 90+ CRI, providing exceptional color rendering and flexibility for diverse applications. The direct mount design with slim die-cast trim and textured low-glare prismatic lens ensures professional installation and optimal light distribution.

Professional Features & Benefits

  • 5-Color Field-Selectable CCT: Choose from 27/30/35/40/5000K color temperatures on-site for optimal lighting conditions and design flexibility
  • High Lumen Output: Delivers up to 2400 lumens nominal with selectable brightness options (1400/1900/2400 lm) for versatile lighting requirements
  • Wet Location Listed: Approved for all applications including showers and covered outdoor spaces, ensuring reliable performance in moisture-prone environments
  • 8-Inch Direct Mount Design: Professional-grade mounting system provides secure installation and clean finished appearance
  • Premium Optical System: Slim die-cast trim with textured low-glare prismatic lens minimizes glare while maximizing light distribution
  • 90+ CRI Rating: Superior color rendering index ensures accurate color representation for professional and residential applications

Technical Specifications

  • Accessories Include: New Construction Mounting Frames, Decorative Overlays, and Extension Cables (sold separately)
  • Arra Compliant: No
  • Brightness Lumen Select: 1400/1900/2400 lm (nominal)
  • Brightness Lumens: 1600 lm (nominal)
  • Color Temperature: 5000K
  • Color Temperature Cct: 5-color Field-SeleCCTable(TM) (27/30/35/40/5000K), 90 plus CRI
  • Department: Electrical
  • Lamp Type: LED
  • Lens Trim: Slim die-cast trim with textured low-glare prismatic lens
  • Marketpro Us Flag: Yes
  • Mounting Method: Direct Mount
  • Product Diameter: 8 Inch
  • Wet Location Listed: For all application including showers and covered outdoor spaces

Professional Applications

  • Residential bathrooms and shower areas
  • Commercial restrooms and wet areas
  • Covered outdoor patios and walkways
  • Hospitality and retail environments
  • Healthcare and institutional facilities
  • Multi-family residential properties
  • Professional office spaces

Why Choose HALO Quality?

HALO LED downlight systems provide reliable performance with wet location listing and professional-grade construction. The field-selectable color temperature technology and high CRI rating ensure optimal lighting performance across diverse applications, backed by durable die-cast construction and premium optical components.

Manufacturer Resources

Product Specs

Arra Compliant:
No
Brightness Lumen Select:
 1400/1900/2400 lm (nominal)
Brightness Lumens:
 1600 lm (nominal)
Department:
Electrical
Lamp Type:
LED
Lens Trim:
Slim die-cast trim with textured low-glare prismatic lens
Marketpro Us Flag:
Yes
Mounting Method:
Direct Mount
Product Diameter:
8 Inch
Product Group:
Lighting
Light Temperature:
5000K
Product Type:
Recessed Trim
Installation Location:
Indoor/Outdoor
Voltage Rating:
120V
Indoor/Outdoor:
Indoor/Outdoor
Product Subgroup:
Recessed Lighting

Halo HLB8169FS1EMWR – Frequently Asked Questions

1) Can the HALO HLB8 downlight be installed in a shower or over a covered patio?
Yes. The HLB8 8-inch LED downlight is wet location listed for all applications including showers and covered outdoor spaces, so it works in a shower ceiling, a commercial restroom, or a covered exterior walkway without a separate shower trim. That wet rating covers the whole unit, not an optional trim version, so there is nothing extra to specify for a damp or wet install.
2) Do I need a can or housing for the HALO HLB8, or does it mount straight into the ceiling?
The HLB8 is a direct mount downlight, so it goes into the ceiling opening without a recessed can. If you are running new construction and want a framed opening, HALO new construction mounting frames are sold separately, as are decorative overlays and extension cables. For a retrofit into an existing 8-inch opening you are mounting the unit directly and no frame purchase is involved.
3) What is the difference between the two HALO HLB8 versions, HLB8169FS1EMWR and HLB8LS9FSE010MWR?
Two things separate them: output and voltage. HLB8169FS1EMWR is the 1600 lumen nominal version running on 120V. HLB8LS9FSE010MWR is the 2500 lumen option and accepts 120/277V, which is what you want on a commercial 277V branch circuit. Both are 8-inch direct mount with the 5000K setting available. If the job is a multi-family unit or a residence on 120V, the 1600 lumen version is the match; if you are on a commercial panel or need more output over a high ceiling, take the 120/277V one.
4) Will the HALO HLB8 run on a 277V circuit?
Only one of the two. The 2500 lumen HLB8, model HLB8LS9FSE010MWR, is rated 120/277V and will run on a 277V commercial branch circuit. The 1600 lumen HLB8169FS1EMWR is 120V only. Specify by model number, because both carry the same HLB8 family name.
5) Can I change the color temperature of the HALO HLB8 after it is installed?
Yes, on the fixture itself. The HLB8 carries 5-color Field-SeleCCTable selection covering 2700K, 3000K, 3500K, 4000K and 5000K, set at the fixture during install rather than ordered as a fixed color. That is how you match new downlights to the existing lamps in a building without stocking five part numbers: buy one SKU and set each room to the temperature the rest of that space is already running.
6) What size ceiling opening does the HALO HLB8 need?
The HLB8 is an 8-inch diameter downlight, so it is sized for 8-inch openings. That is the large end of the residential and light commercial downlight range, used where you want fewer fixtures covering more floor, which is consistent with its 2400 lumen top output setting. If your existing ceiling is cut for 4-inch or 6-inch cans, this is not a drop-in and you would be patching ceiling.
7) Can I set the brightness on the HALO HLB8, or is the output fixed?
Output is selectable on the fixture. The HLB8 brightness select range is 1400, 1900 and 2400 lumens nominal, so the same unit can be dialed down for a residential bathroom or run at full output over a retail floor or a parking-adjacent covered entry. Useful when one building has both conditions and you want a single part on the truck.
8) Is the HALO HLB8 good enough color quality for retail display or a healthcare space?
The HLB8 runs 90 plus CRI at every one of its five selectable color temperatures, which is the range specifiers ask for when merchandise color, paint, or skin tone has to read correctly. Paired with the textured low-glare prismatic lens in a slim die-cast trim, it is aimed at spaces where people look up and glare matters as much as light level.
9) Does the HALO HLB8 dim, and does it need a 0-10V control?
The 2500 lumen HLB8LS9FSE010MWR is the 0-10V version, so it is the one to specify where a commercial control system or a panel-level dimming loop is already in place and you need to pull low-voltage control wire to the fixture. The 1600 lumen HLB8169FS1EMWR is the 120V line-voltage model. Match the model to the control scheme on the drawing before ordering.
10) Is the HALO HLB8 ARRA compliant for a federal or government project?
No. The HLB8 8-inch LED downlight is not ARRA compliant. If your project carries an ARRA domestic-sourcing requirement, this is the wrong fixture and you need a product that states that compliance on its own spec.
11) Can I standardize one downlight across bathrooms, hallways and covered entries in an apartment building?
That is the case the HLB8 is built for. One 8-inch direct mount fixture covers dry interior ceilings and wet locations including showers and covered outdoor areas, and the field-selectable color temperature and 1400/1900/2400 lumen settings let you tune each space at install instead of stocking separate SKUs. For a property manager or MRO buyer that means one part number on the shelf for the whole property, with the differences set on the ladder.
12) What else do I need to order with the HALO HLB8 to finish the job?
For a straight direct mount into an existing 8-inch opening, the fixture is what you install. New construction jobs take HALO new construction mounting frames, ordered separately. Decorative overlays are separate too if the architect wants a trim appearance other than the standard slim die-cast trim, and extension cables are separate where the junction box sits away from the fixture location.
