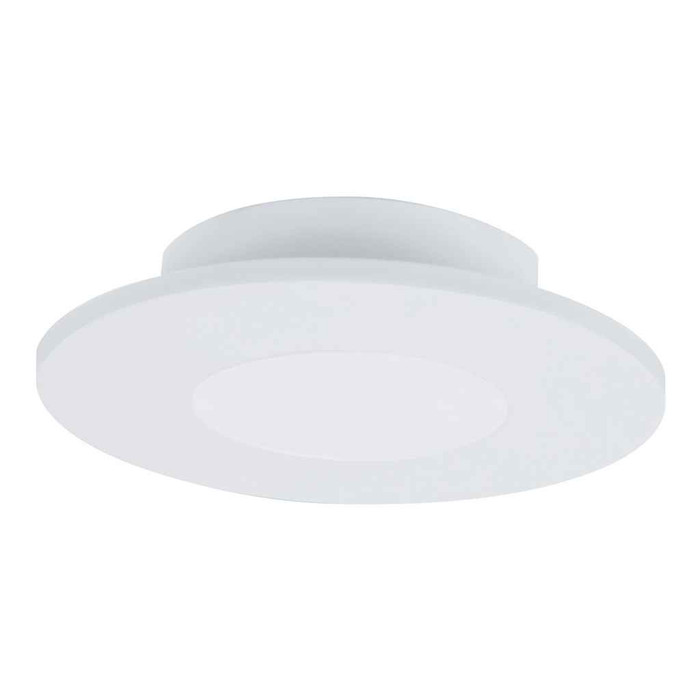

HALO JBD4 Slim Surface Mount LED Downlight
Professional 4" LED downlight with selectable color temperature and versatile mounting options
The HALO JBD4 Slim Surface Mount LED Downlight delivers professional-grade illumination with 700 lumens output and energy-efficient 10W LED technology. This 4" diameter fixture features selectable color temperature capability and versatile mounting options including surface mount and recessed installation with included E26 adapter. Operating on standard 120V power with 50/60 Hz compatibility, this downlight provides reliable performance for diverse lighting applications.
Professional Features & Benefits
- 700 Lumens Output: Delivers bright, consistent illumination ideal for task lighting and general area coverage in residential and commercial spaces.
- Energy-Efficient 10W LED: Provides substantial light output while consuming minimal power, reducing energy costs and maintenance requirements.
- Selectable Color Temperature: Allows customization of light appearance to match specific application needs and preferences.
- Advanced Dimming Capability: Dims down to 5% with compatible phase cut dimmers, offering precise light control and ambiance adjustment.
- Versatile Mounting System: Includes j-box mounting hardware and E26 adapter for flexible installation in surface mount or 4" recessed housing applications.
- 4" Compact Design: Slim profile fits standard openings while providing professional appearance and performance.
- Standard 120V Operation: Compatible with common electrical systems at 0.08A draw for easy integration into existing circuits.
Technical Specifications
- Amperage Rating: 0.08A
- Arra Compliant: No
- Brightness: 700 lumens (nominal)
- Color Temperature: 5000K
- Department: Electrical
- Dimming: Dims to 5% (phase cut LE/TE) with compatible dimmers; 120V input
- Includes: j-box mounting hardware + extension springs & E26 adapter for mounting to 4" recessed housings
- Lamp Type: LED
- Lumens: 700
- Marketpro Us Flag: Yes
- Mounting Method: Recessed
- Product Diameter: 4 Inch
- Product Wattage: 10W
- Voltage Rating: 120V, 50/60 Hz
Professional Applications
- Residential kitchen and bathroom task lighting
- Commercial office and retail accent lighting
- Hospitality and restaurant ambient lighting
- Healthcare facility corridor and room lighting
- Educational facility classroom and common area lighting
- Multi-unit residential hallway and unit lighting
- Professional office conference room and workspace lighting
Why Choose HALO Quality?
HALO LED downlights provide reliable performance with professional-grade construction and comprehensive mounting hardware for versatile installation options. The selectable color temperature feature and advanced dimming capability ensure optimal lighting performance across diverse applications, backed by proven LED technology and standard electrical compatibility.
Manufacturer Resources
Spec Sheet
Product Specs
- Amperage Rating:
- 0.08A
- Arra Compliant:
- No
- Brightness:
- 700 lumens (nominal)
- Department:
- Electrical
- Lamp Type:
- LED
- Lumens:
- 700
- Marketpro Us Flag:
- Yes
- Mounting Method:
- Recessed
- Product Diameter:
- 4 Inch
- Product Wattage:
- 10W
- Voltage Rating:
- 120-277V
- Product Group:
- Lighting
- Light Temperature:
- 5000K
- Product Type:
- Recessed Housing
- Installation Location:
- Indoor
- Indoor/Outdoor:
- Indoor
- Product Subgroup:
- Light Fixtures
Halo JBD4079FS1EWH – Frequently Asked Questions
1) Can the Halo JBD4 downlight be installed without a recessed can, straight to a junction box?
Yes. The JBD4 is a 4 inch slim LED downlight that ships with j-box mounting hardware plus extension springs, so it mounts directly over a standard junction box with no can required. If you do have existing 4 inch recessed housings, the included E26 adapter screws into the lampholder so the same fixture drops into those cans instead. That covers both new ceiling work and retrofit on one part number.
2) Will the Halo JBD4 dim smoothly on the dimmers already in my units?
It dims down to 5 percent on compatible phase cut dimmers, leading edge or trailing edge, running on 120V input. That means a standard forward or reverse phase wall dimmer, not a 0-10V control. If a unit has 0-10V dimming infrastructure, this is not the fixture for that circuit. Where you have older magnetic-style incandescent dimmers, check them against the manufacturer's compatibility list before standardizing a building on it, since low-end performance and flicker depend entirely on the dimmer pairing.
3) Can I use the Halo JBD4 in a covered porch or a soffit outside?
No. The JBD4 is rated for indoor installation only. For exterior soffits, covered entries, or anywhere the fixture sees weather or wind-driven moisture, you need a downlight with a wet or damp location listing instead.
4) How many Halo JBD4 downlights can I put on one 15 amp circuit?
Each JBD4 draws 0.08A at 10W. That is a very small load per fixture, so circuit capacity is rarely the limiting factor on a residential or light commercial branch; the practical limit on a retrofit is usually the dimmer's minimum and maximum load rating, not the breaker. Size the run against your dimmer's stated LED wattage rating.
5) Will the Halo JBD4 match the color of the other lights in the building?
The JBD4 is a selectable CCT fixture, so you set the color temperature at install rather than buying a separate SKU per color. The listed light temperature is 5000K, a cool daylight tone that reads white-blue and is common in corridors, garages and back-of-house. If your existing units are running a warmer 2700K or 3000K, set the selector to match those rather than leaving it where it ships, or the new fixtures will read visibly different next to the old ones.
6) What is the exact part number for the 4 inch Halo JBD4 downlight?
The 4 inch version is Halo model JBD4079FS1EWH, a 10W 700 lumen LED downlight in white. That is the number to quote when you are matching fixtures across a building or reordering for a standing spec.
7) Does the Halo JBD4 qualify as ARRA compliant for a federally funded job?
No. The JBD4 is listed as not ARRA compliant, so it will not satisfy a Buy American requirement written into a federally funded project. If you are buying against that spec, source a fixture that carries the compliance statement.
8) Do I need to buy mounting hardware or a trim ring separately for the Halo JBD4?
No extra hardware for a standard install. The box contains the j-box mounting hardware, extension springs, and the E26 adapter, which covers both the surface-over-junction-box method and the drop-into-an-existing-4-inch-can method. What is not in the box is the dimmer, the junction box itself, and any wire connectors your inspector wants.
