HALO 6100 6-Inch Recessed Baffle Trim with Dual Trim Rings

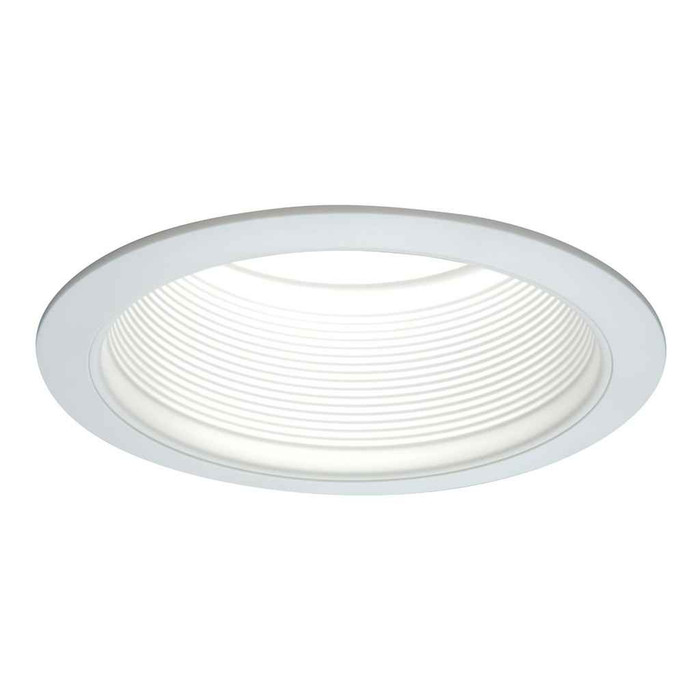

The HALO 6100 is a 6-inch recessed baffle trim with a tapered metal baffle and a dual trim ring system. Two included trim rings cover a range of ceiling cutout conditions: a narrow ring at 7.25" OD and a wide oversized ring at 8.00" OD. Rated 120-277V. Compatible with halogen, incandescent, LED, and CFL lamps (lamp not included). Available in white baffle/white trim rings (6100WB) and black baffle/white trim rings (6100BB).

Features

  • 6-Inch Diameter: Fits standard 6-inch recessed housings
  • Tapered Metal Baffle: Reduces glare and controls light distribution
  • Dual Trim Ring System: Narrow 7.25" OD and wide 8.00" OD rings included for varied ceiling conditions
  • Multi-Lamp Compatibility: Halogen, incandescent, LED, and CFL (lamp not included)
  • Voltage Rating: 120-277V
  • Mounting Method: Recessed
  • Indoor/Outdoor Rated

Technical Specifications

  • Product Diameter: 6 Inch
  • Trim Type: Baffle
  • Trim Ring Sizes: 7.25" OD (narrow), 8.00" OD (wide oversized)
  • Voltage Rating: 120-277V
  • Lamp Type: Halogen, Incandescent, LED, CFL (Not Included)
  • Finish Options: White Baffle/White Trim Rings (6100WB); Black Baffle/White Trim Rings (6100BB)
  • Mounting Method: Recessed
  • Installation Location: Indoor/Outdoor

Manufacturer Resources

Product Specs

Arra Compliant:
No
Department:
Electrical
Lamp Type:
Halogen, Incandescent, LED, CFL (Not Included)
Marketpro Us Flag:
Yes
Mounting Method:
Recessed
Product Diameter:
6 Inch
Stock Guide Trim Type Recessed:
Baffle
Trim Ring Sizes:
Narrow: 7.25" OD; Wide (Oversized): 8.00" OD
Product Group:
Lighting
Product Type:
Recessed Trim
Installation Location:
Indoor/Outdoor
Voltage Rating:
120-277V
Indoor Outdoor:
Indoor/Outdoor
Product Subgroup:
Recessed Lighting

Halo 6100BB – Frequently Asked Questions

1) Will the HALO 6100 baffle trim fit my existing 6-inch recessed cans?
The 6100 is a 6 inch diameter recessed trim, so it drops into standard 6 inch housings. What decides the look is which of the two supplied rings you use: a narrow 7.25 inch OD ring or a wide oversized 8.00 inch OD ring. If the old trim left a ragged cut or a paint halo around the opening, the 8.00 inch ring covers more ceiling than the 7.25 inch one.
2) Does the HALO 6100 recessed trim come with a bulb, or do I order lamps separately?
Lamps are not included. The 6100 baffle trim accepts halogen, incandescent, LED and CFL lamps, so you order the lamp to suit the job. On a multi-unit or office relamp that is usually the point: you can standardize the trim now and change lamp technology later without pulling the trims back out.
3) Can I use the HALO 6100 baffle trim on a 277V commercial circuit?
Yes. The 6100 trim carries a 120-277V rating, so it works on both residential 120V circuits and the 277V lighting circuits common in commercial buildings. That matters when you are buying one trim for a facility running both.
4) Does the HALO 6100 qualify for an ARRA Buy American project requirement?
No. The 6100 baffle trim is not ARRA compliant, so it will not satisfy a federally funded job carrying that requirement. On a government or institutional spec that names ARRA, this is the wrong part and you need a trim carrying that compliance.
5) My ceiling opening is a bit oversized after removing the old trim. Will the HALO 6100 cover it?
That is what the wide ring is for. The 6100 ships with two rings: 7.25 inch OD for a clean opening, and an oversized 8.00 inch OD that hides a rougher cut or the paint line from a previous larger trim. You pick at install, so you do not need to know which one you need before the ceiling is open.
6) What is the difference between the two HALO 6100 trim options, 6100BB and 6100WB?
Only the baffle color. Model 6100WB is a white baffle with white trim rings; 6100BB is a black baffle with white trim rings. Both use the same white rings, so the ceiling-facing ring matches either way. A black baffle sinks the aperture visually and cuts glare from the lamp in view, which is why it gets specified in retail and hospitality; white blends into a white ceiling.
7) Is the HALO 6100 trim rated for a covered porch or soffit, or indoor only?
Rated for indoor and outdoor installation locations, so a covered exterior soffit or porch application is within its listed use, not just interior ceilings. The housing behind it still governs the wet or damp location rating for the assembly.
8) Should I use a baffle trim or a reflector trim in an office ceiling?
A baffle is the glare-control choice. The 6100 uses a tapered metal baffle whose stepped interior absorbs stray light instead of bouncing it back out, so people at desks or screens see less of the lamp. A reflector trim does the opposite, pushing more lumens down onto the floor. If the room is a work area with seated sightlines into the ceiling, take the baffle; if you are washing a warehouse or a high space for raw light output, a reflector serves better.
9) Can I switch my HALO 6100 recessed cans over to LED without changing the trim?
Yes. The 6100 baffle trim accepts LED lamps along with halogen, incandescent and CFL, so an existing installation can be relamped to LED with the trim left in place. That is the practical case for property managers converting a building over in stages.
