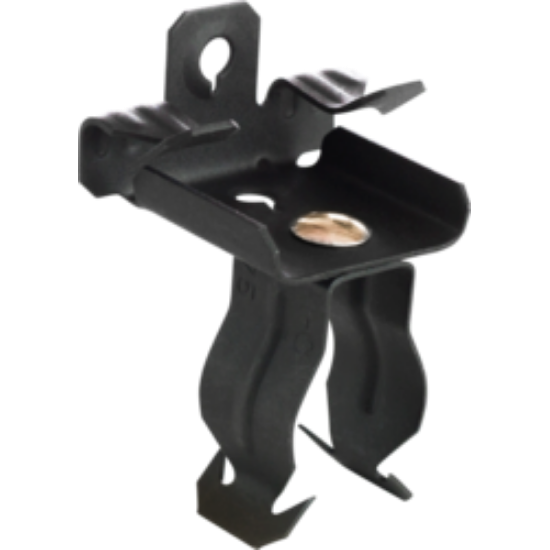

Minerallac Hammer-On Beam Clamp and Push-In Conduit Clip Assembly

Professional Conduit Suspension with 360� Pivot Capability

The Minerallac hammer-on beam clamp and push-in conduit clip assembly provides reliable conduit suspension from the bottom of beams with professional spring steel construction. This assembly accommodates 1/8-1/4" flanges and supports 1" EMT and 3/4" Rigid/IMC conduit with a 75-pound maximum load capacity and zinc phosphate & oil finish for durability.

Professional Features & Benefits

  • 360� Pivot Capability: Conduit clip rotates fully for flexible positioning and alignment in various installation configurations.
  • 75-Pound Load Capacity: Supports substantial conduit runs with reliable weight distribution for professional electrical installations.
  • Spring Steel Construction: Provides consistent clamping force and long-term durability in demanding electrical environments.
  • Dual Conduit Compatibility: Accommodates both 1" EMT and 3/4" Rigid/IMC conduit for versatile application flexibility.
  • Zinc Phosphate & Oil Finish: Delivers corrosion resistance and extended service life in various environmental conditions.
  • 1/4"-20 Fastening Holes: Standard threading ensures compatibility with common fasteners for secure mounting.
  • Hammer-On Installation: Quick and efficient beam attachment reduces installation time while maintaining secure connection.

Technical Specifications

  • Clip Type: Beam Clamp
  • Country Of Origin: United States
  • Fastening Holes: 1/4"-20
  • Flange Width: 1/8" � 1/4
  • Maximum Load: 75
  • Product Color: Black
  • Product Dimensions: Height = 2-7/8" Width = 1-3/4" Depth = 1.42"
  • Product Finish: Zinc Phosphate & Oil
  • Product Material: Spring Steel
  • Product Size: 1.00" x 1.75" x 1.42
  • Product Type: Flange Mount Conduit Clip Assembly
  • Rod Size: Fits 1" EMT, 3/4" Rigid/IMC

Professional Applications

  • Commercial Building Electrical Systems
  • Industrial Facility Conduit Runs
  • Warehouse and Distribution Centers
  • Manufacturing Plant Installations
  • Retail and Office Building Projects
  • Educational and Healthcare Facilities
  • Multi-Story Construction Projects

Why Choose Minerallac Quality?

Minerallac delivers professional-grade electrical hardware with spring steel construction and zinc phosphate & oil finish for reliable performance. Made in the United States with 75-pound load capacity and 360� pivot functionality, this beam clamp assembly provides the durability and versatility required for demanding electrical installations.

Manufacturer Resources

Product Specs

Clip Type:
Beam Clamp
Country Of Origin:
United States
Fastening Holes:
1/4"-20
Flange Width:
1/8" – 1/4
Maximum Load:
75
Product Color:
Black
Product Dimensions:
Height = 2-7/8” Width = 1-3/4” Depth = 1.42”
Product Finish:
Zinc Phosphate & Oil
Product Material:
Spring Steel
Product Size:
1.00" x 1.75" x 1.42
Product Type:
Flange Mount Conduit Clip Assembly
Rod Size:
Fits 1" EMT, 3/4" Rigid/IMC
Department:
Electrical
Product Subgroup:
Clamps
Product Group:
Hangers, Supports & Fasteners

Minerallac BC18100 – Frequently Asked Questions

1) What beam flange thickness does the Minerallac BC18100 hammer-on beam clamp fit?
The BC18100 clamps onto beam flanges from 1/8 inch to 1/4 inch thick. It drives on by hammer, so if your bar joist or beam flange edge is thicker than 1/4 inch the spring steel body won't seat and you need a heavier bolted or purlin-style clamp instead.
2) Will the BC18100 conduit clip hold 1 inch EMT and 3/4 inch rigid conduit?
Those are exactly the two sizes it is built for: 1 inch EMT or 3/4 inch Rigid/IMC push into the clip. Because EMT and rigid of those two trade sizes share a close outside diameter, the single clip covers both. Any other conduit size needs a different clip assembly in the series.
3) Does this beam clamp need a drilled hole or any fasteners to install?
No drilling. The clamp hammers onto the beam flange and the conduit pushes into the clip, so one worker installs it from a lift with a hammer only. There is also a 1/4"-20 fastening hole if you'd rather bolt an accessory or a threaded fastener to it.
4) Can the conduit clip be rotated to line up with the run, or is it fixed to the beam direction?
The clip pivots a full 360 degrees on the clamp, so you can hang conduit running parallel to the beam, perpendicular to it, or at any angle in between without changing parts. That matters when you're following an existing rack and the beams don't run with your conduit.
5) How much clearance below the beam does the BC18100 assembly take up?
The assembly measures 2-7/8 inches high, 1-3/4 inches wide and 1.42 inches deep. In a tight plenum or under a low joist, that 2-7/8 inch height is the figure to check against your available space before you commit to beam-mounted clips.
6) Is a zinc phosphate and oil finish suitable for a damp warehouse or outdoor-adjacent area?
Zinc phosphate and oil on spring steel is a corrosion-inhibiting finish meant for dry to normally humid indoor use, which is where most beam-hung conduit lives. It is not a galvanized or stainless finish, so for wet locations, washdown areas, or exterior exposure specify a hot-dip or stainless support instead. The finished part is black.
7) Is the Minerallac BC18100 made in the USA for Buy American projects?
Yes, country of origin is the United States. For federally funded or Buy American jobs, that makes the BC18100 beam clamp assembly a straightforward line item, though you should still match the documentation requirement your spec calls for.
