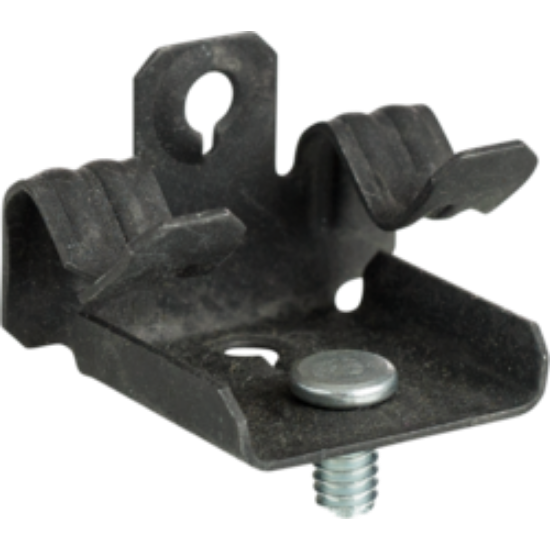

Minerallac BC18ST Hammer On Beam Clamp with 1/4"-20 x 3/8" Stud, Fits 1/8-1/4" Flange, 1/4"-20 Thread Impression on Bottom and Back of Clamp, Spring Steel

Minerallac BC18ST Hammer On Beam Clamp with 1/4"-20 x 3/8" Stud, Fits 1/8-1/4" Flange, 1/4"-20 Thread Impression on Bottom and Back of Clamp, Spring Steel

(No reviews yet) Write a Review

Model: BC18ST

In Stock (leaves warehouse same day if ordered before 3pm ET)

$51.83
$1.83
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Hammer On Beam Clamp with 1/4"-20 x 3/8" Stud, Fits 1/8-1/4" Flange, 1/4"-20 Thread Impression on Bottom and Back of Clamp, Spring Steel

  • Application

    • Suspend box

  • Features

    • Fits 1/8-1/4" Flange 1/4"-20 x 3/8" Stud

Manufacturer Resources

Product Specs

Country Of Origin:
United States
Fastening Holes:
1/4"-20
Included:
1/4"-20 x 3/8" Stud
Load:
75lbs
Number Of Holes:
2
Product Color:
Black
Product Finish:
Zinc Phosphate & Oil
Product Material:
Spring Steel
Product Size:
1.46 x 1.75 x 1.42
Product Type:
Beam Clamp with Stud
Thickness:
0.042
Department:
Electrical

Minerallac BC18ST – Frequently Asked Questions

1) What beam flange thickness will the Minerallac BC18ST hammer-on clamp fit?
The BC18ST grips flanges from 1/8 inch to 1/4 inch thick. That covers most bar joist angles and light structural beam flanges. If the flange on your steel is thicker than 1/4 inch, this clamp won't seat and you need a heavier flange-range clamp.
2) How much weight can a hammer-on beam clamp with a 1/4-20 stud hold?
The BC18ST is rated for a 75 lb load. That's enough for a suspended box, small fixture, or a light run of conduit hung from a threaded rod. Anything heavier belongs on a bolted clamp or a rod hanger sized for the load.
3) Does the Minerallac BC18ST come with the stud, or do I order that separately?
The 1/4-20 x 3/8 inch stud ships attached to the clamp. Nothing else is included, so the nut, threaded rod, coupling, or box hanger you're fastening to comes from your own stock.
4) Can I hang something off the side of the BC18ST instead of straight down from the stud?
Yes. Besides the stud, the clamp carries 1/4-20 thread impressions on both the bottom and the back, two tapped holes in total. That lets you take a drop straight down off the bottom or pick up a fixture off the back face, so you can hang perpendicular to the beam without adding a bracket.
5) Do I need a drill or a bolt to install a Minerallac hammer-on beam clamp?
No drilling, no bolting, no welding. The BC18ST is spring steel, 0.042 inch thick, and you drive it onto the beam flange with a hammer. The spring tension of the steel is what holds it. That's the whole reason electricians reach for these on overhead work, one hand and a hammer from a lift.
6) Is the Minerallac BC18ST made in the USA for a Buy American job?
Country of origin on the BC18ST beam clamp is the United States. That matters on federally funded and many institutional projects where domestic-sourced material has to be documented on the submittal.
7) What thread size do I match to the BC18ST stud and tapped holes?
Everything on this clamp is 1/4-20. The supplied stud is 1/4-20 x 3/8 inch and both tapped holes are 1/4-20, so order 1/4-20 nuts, 1/4-20 threaded rod, or box hangers tapped 1/4-20. Ordering 3/8-16 rod, which is the other common hanger thread, will not thread into this clamp.
8) Is the BC18ST finish suitable for a damp or unheated building?
The clamp is zinc phosphate and oil finished, black in color. That's a coating meant for dry interior structural steel, parking decks, plants, and warehouses. For sustained wet exposure or exterior work, a galvanized or stainless clamp is the better call.
9) How much room does the Minerallac BC18ST take up on the beam?
The clamp body measures 1.46 x 1.75 x 1.42 inches. It's a compact footprint, so you can set several along a joist for a conduit run without them crowding each other or fouling adjacent trades' hangers.
