Hubbell Watertight Pin and Sle...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$1,234.68

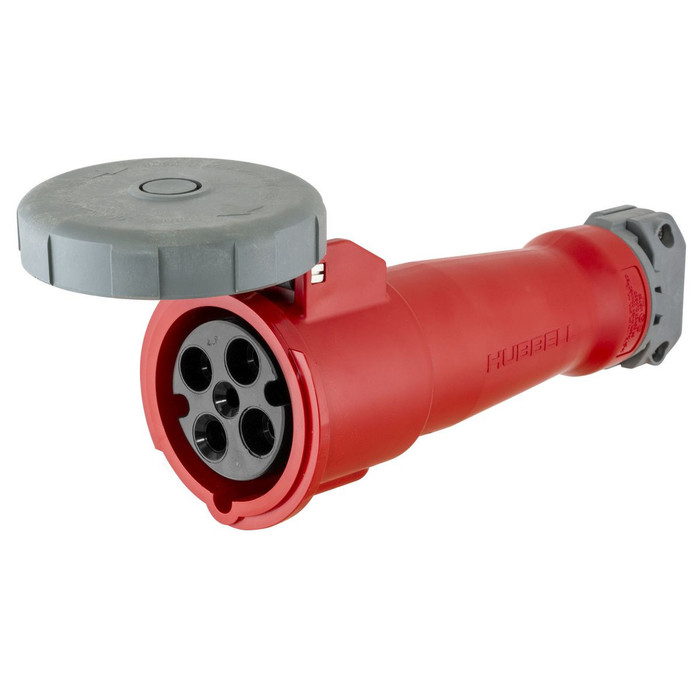

Hubbell Watertight Pin and Sleeve Plug and Connector, 4-Wire 3-Pole

Hubbell Watertight Pin and Sleeve Plug and Connector, 4-Wire 3-Pole

(No reviews yet) Write a Review

Model: HBL4100C7W

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,234.68
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Hubbell Wiring HBL4100P7W 4-Wire 3-Pole Watertight Pin and Sleeve Plug, 480V 100A, Red

The Hubbell Wiring HBL4100P7W is a heavy-duty, 4-Wire, 3-Pole watertight pin and sleeve plug built for demanding industrial, commercial, and temporary power applications. This plug carries a 480V, 100A rating, making it well suited for high-power three-phase circuits found on construction sites, industrial plants, and commercial facilities. Finished in red, the HBL4100P7W allows electricians and maintenance crews to quickly identify voltage and phase by color when working with multiple circuits and cordsets. Its watertight construction is designed to help protect the connection from moisture and outdoor exposure, supporting reliable power delivery in wet or harsh job-site conditions. As part of the Hubbell Wiring pin and sleeve product line, the HBL4100P7W plug is engineered to mate securely with compatible pin and sleeve connectors for dependable temporary and permanent power distribution.

Key Features

  • 4-Wire, 3-Pole Configuration: Supports three-phase power circuits that require a neutral or ground conductor for balanced, multi-phase loads.
  • 480V, 100A Electrical Rating: Rated for high-amperage industrial and commercial power applications, including heavy equipment and portable power distribution.
  • Watertight Construction: Watertight housing helps shield internal contacts from rain, splash, and washdown exposure common on outdoor and industrial job sites.
  • Pin and Sleeve Plug Design: Engineered to mate securely with corresponding pin and sleeve connectors and receptacles for repeated connect and disconnect cycles.
  • Red Color-Coded Housing: The red housing follows common pin and sleeve color-coding practices, helping crews quickly identify voltage and phase across multiple devices and cordsets.
  • Heavy-Duty Build: Constructed for demanding industrial, commercial, and outdoor environments where dependable power connections are essential.

Certifications & Compliance

  • Watertight Construction Suitable for Wet Locations

Technical Specifications

  • Refer to manufacturer documentation for complete technical specifications.

Typical Applications

  • Industrial and Commercial Power Distribution
  • Temporary and Portable Power Connections
  • Outdoor and Wet-Location Power Access
  • Three-Phase Equipment and Machinery Hookups
  • Construction Site Power Distribution
  • Maintenance and Repair Power Connections

Why Hubbell Wiring?

Hubbell Wiring designs pin and sleeve devices to withstand the demands of industrial and outdoor use, and the HBL4100P7W plug continues that standard with a rugged, watertight housing and a dependable 480V, 100A, 4-Wire 3-Pole rating. For electrical professionals who need durable, code-compliant power connection solutions, this red pin and sleeve plug delivers reliable performance in demanding industrial and commercial environments.

Manufacturer Resources

Product Specs

list_batch:
HUG-20260922
Department:
Electrical
Product Subgroup:
Pin & Sleeve Devices
Product Type:
Connector
Amperage Rating:
100A
Number Of Poles:
3-Pole
Number Of Wires:
4-Wire
Product Color:
Red
Product Style:
Standard Service
Product Group:
Wiring Devices

Hubbell Wiring HBL4100C7W – Frequently Asked Questions

1) What is the difference between Hubbell HBL4100P7W and HBL4100C7W?
They are the two mating halves of the same 100A pin and sleeve set. HBL4100P7W is the plug (the male pin half that goes on the cord end feeding out), and HBL4100C7W is the connector (the female sleeve half that terminates the other cord end). Both are 4-wire, 3-pole watertight devices in red. If you are building a cordset, you need one of each; if you are replacing a damaged end, order only the half that failed.
2) Will a 4-wire 3-pole 100A pin and sleeve plug work on a 480V three-phase circuit?
Yes. The Hubbell HBL4100P7W is rated 480V, 100A in a 4-wire, 3-pole configuration, which is three phase conductors plus a fourth wire for the equipment ground. That is the standard arrangement for 480V three-phase delta equipment hookups. If your load needs three phases plus a neutral AND a ground, you want a 5-wire 4-pole device instead, not this one.
3) Can these 100A pin and sleeve devices be used outdoors in the rain or in a washdown area?
Yes. Both the HBL4100P7W plug and HBL4100C7W connector use watertight construction suitable for wet locations, which covers rain, splash, and washdown exposure on industrial sites. The watertight seal depends on the device being fully mated and the cord grip properly tightened on the correct cable diameter; an unmated plug left lying on wet ground is not protected.
4) Why is this Hubbell pin and sleeve device red, and does the color matter?
Red is the pin and sleeve color code for 480V three-phase at 60Hz, and Hubbell builds the HBL4100P7W and HBL4100C7W in red to match that rating. On a site running multiple voltages, the color is how a crew tells a 480V cordset from a 208V one at a glance before they plug anything in. The color does not change the electrical rating, but mismatching colors across a distribution system defeats the point of the system.
5) Is a pin and sleeve connector the right choice for temporary construction site power, or should I use a twist-lock?
At 100A and 480V three phase, pin and sleeve is the practical choice. Twist-lock devices top out well below 100A, so they are not an option at this current. The Hubbell HBL4100 pin and sleeve devices are built for repeated connect and disconnect cycles and watertight exposure, which is exactly the duty on a temporary distribution setup feeding equipment from a panel or spider box. For permanently wired equipment that never gets unplugged, a hardwired disconnect is simpler.
6) Will the Hubbell HBL4100C7W connector mate with another manufacturer's 100A pin and sleeve plug?
The HBL4100C7W is designed to mate with corresponding Hubbell pin and sleeve plugs and receptacles in the same 4-wire 3-pole 480V 100A configuration. Pairing it across brands is not something we can confirm here, so the safe build is a matched Hubbell pair: HBL4100P7W plug to HBL4100C7W connector. Pole count, wire count, and voltage rating must match on both halves regardless.
7) Do I need anything besides the plug and connector to make up a 100A 480V cordset?
You need the cable itself and the overcurrent protection on the supply side. The Hubbell HBL4100P7W plug and HBL4100C7W connector terminate four conductors each (three poles plus ground), so your cord has to be a 4-conductor type sized for 100A at 480V, and the cord grip on each device has to suit that jacket diameter. The devices are field-wireable ends only; they do not include cable, strain relief beyond their own grip, or a disconnect.
8) Can an Ocal ST145-G liquidtight connector be used in place of the Hubbell HBL4100P7W pin and sleeve plug?
No. The Ocal ST145-G is a PVC-coated liquidtight flexible conduit connector, a raceway fitting that terminates flexible conduit into a box or enclosure. The Hubbell HBL4100P7W is a 4-wire, 3-pole watertight pin and sleeve plug rated 480V 100A that carries current and mates with a matching pin and sleeve connector for repeated connect and disconnect cycles. The two serve different functions in the same wet-location install, and the conduit fitting makes no electrical connection between conductors.
9) For a wet-location 480V 100A cord drop, what do I need besides the Hubbell pin and sleeve device?
The mating half is the first decision: the HBL4100P7W is the plug and the HBL4100C7W is the connector, both 4-wire 3-pole watertight devices, so pick the one that matches the end you are terminating. If the run transitions into flexible conduit at an enclosure, a liquidtight fitting such as the Ocal ST34-G PVC-coated steel straight connector in 3/4-inch handles that termination; it is a conduit fitting, not a current-carrying device, so it does not replace either pin and sleeve half.
10) I need a liquidtight fitting for a 3/4 inch conduit run, not a power connector. What should I look at?
A 100A pin and sleeve plug is a cord-end power device and will not serve as a conduit fitting. For a liquidtight flexible conduit termination, the Ocal ST34-G is a PVC-coated steel non-grounding liquidtight straight connector in 3/4 inch, and the Ocal ST145-G covers the same family in a larger trade size. Those thread into a box or enclosure hub; the Hubbell device connects cords to each other.
