RAB 36W Field Adjustable HID Replacement LED 5220 Lumens EX39 Base Ballast Bypass 5-Pin Sensor Port

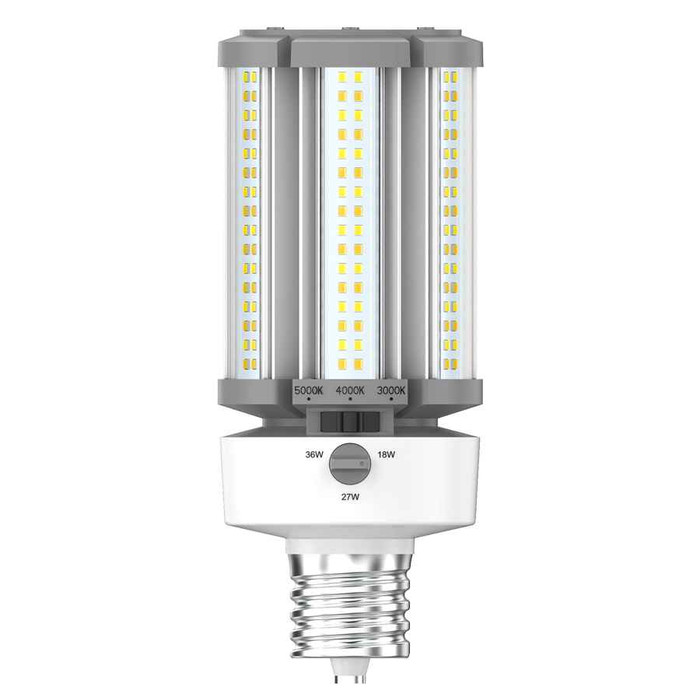

RAB 36W Field Adjustable HID Replacement LED

Professional-Grade Retrofit Solution with Field Adjustable Power

The RAB 36W Field Adjustable HID Replacement LED delivers professional-grade retrofit performance for existing HID fixtures. This ballast bypass LED lamp features field adjustable wattage (18W/27W/36W) and lumen output (2,430-5,220 lumens) designed for electrical contractors, lighting professionals, and facility managers, providing the reliable performance and industry-leading quality that lighting professionals demand for HID conversions.

Professional Features & Benefits

Field Adjustable Performance

• Triple Power Settings - Field adjustable 18W/27W/36W operation allows customization for specific lighting requirements and energy savings
• Variable Lumen Output - Delivers 2,430 to 5,220 lumens based on power setting for optimal illumination control
• EX39 Mogul Base - Direct replacement compatibility with existing HID fixtures using standard mogul base sockets
• 5-Pin Sensor Port - Integrated sensor connectivity for advanced lighting controls and occupancy sensing

Energy Efficiency & Compliance

• DLC Listed - Qualifies for utility rebates and energy efficiency programs with 135-145 lumens per watt efficacy
• Ballast Bypass Design - Eliminates ballast maintenance and failure points while reducing energy consumption
• 50,000 Hour Life Rating - Significantly reduces maintenance costs compared to traditional HID lamps

Technical Specifications

Field adjustable 18W/27W/36W power consumption, 2,430-5,220 lumen output, EX39 mogul base, constant current LED driver, 135-145 lumens per watt efficacy, 50,000 hour rated life, ballast bypass operation, 5-pin sensor port, clear finish, 3.66" height x 9.8" width dimensions, 1.41 lbs weight, DLC listed, multiple voltage compatibility.

Installation & Setup

1. Turn off power and allow existing HID lamp to cool completely before beginning retrofit installation
2. Remove existing HID lamp and bypass or disconnect the ballast according to local electrical codes
3. Select desired power setting (18W/27W/36W) using field adjustable controls for optimal energy efficiency
4. Install LED lamp into existing EX39 mogul base socket ensuring secure connection
5. Connect 5-pin sensor port if occupancy or daylight controls are required for the application
6. Restore power and verify proper operation at selected wattage setting for professional results

Professional Applications

Ideal for:

• Industrial Facility Retrofits - High bay and low bay fixture conversions in manufacturing plants and warehouses
• Commercial Building Upgrades - Office buildings, retail spaces, and institutional facility HID replacements
• Warehouse Lighting - Distribution centers and storage facilities requiring adjustable illumination levels
• Manufacturing Plants - Production areas needing reliable, maintenance-free lighting solutions
• Parking Garage Lighting - Underground and covered parking areas with sensor integration capabilities
• Retail Store Conversions - Big box stores and shopping centers upgrading from metal halide systems
• Educational Facilities - Schools and universities retrofitting gymnasium and common area lighting
• Healthcare Facilities - Hospitals and clinics upgrading corridor and service area illumination

Field Adjustable Technology Advantage

RAB's field adjustable technology allows contractors to customize light output and energy consumption after installation, providing flexibility for changing space requirements while maximizing energy savings. The constant current LED driver ensures consistent performance across all power settings with superior thermal management and optical efficiency compared to traditional HID systems.

Why Choose RAB Quality?

RAB's commitment to DLC listing ensures utility rebate eligibility while the ballast bypass design eliminates maintenance issues associated with traditional HID systems. The 50,000-hour life rating and field adjustable features provide lighting professionals with reliable, code-compliant solutions that reduce long-term operating costs and provide superior performance for commercial and industrial retrofit applications.
