Mersen Amp-Trap A70P High Speed Fuse 200A 700VAC/650VDC Bolted Blade Terminal

Mersen Amp-Trap A70P High Speed Fuse 200A 700VAC/650VDC Bolted Blade Terminal

Professional High-Speed Circuit Protection for Critical Applications

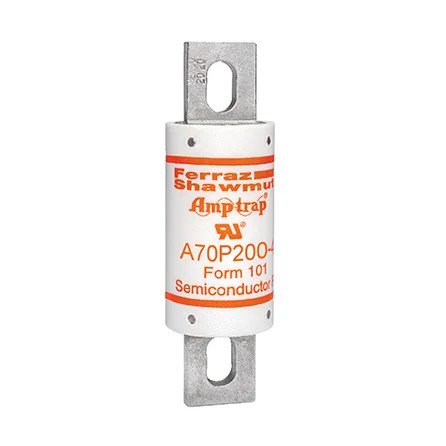

The Mersen Amp-Trap A70P High Speed Fuse delivers reliable 200A circuit protection with dual voltage ratings of 700VAC and 650VDC. Featuring bolted blade terminals with tin-plated brass construction and GMG body insulating material, this high-speed fuse provides superior performance for demanding electrical applications requiring fast fault clearing and robust protection.

Professional Features & Benefits

• 200A Current Rating: Handles substantial electrical loads while providing precise overcurrent protection for critical circuits.
• Dual Voltage Capability: 700VAC and 650VDC ratings offer versatility for both AC and DC applications in industrial and commercial settings.
• High Speed Characteristic: Fast fault clearing minimizes equipment damage and reduces arc energy exposure during fault conditions.
• 50 kA Breaking Capacity: Exceptional interrupting capability safely clears high fault currents in demanding electrical systems.
• Bolted Blade Terminals: Secure tin-plated brass connections ensure reliable contact and simplified installation in compatible fuse holders.
• GMG Insulating Material: Professional-grade body construction provides excellent electrical insulation and mechanical durability.
• RoHS Compliant: Meets environmental standards for responsible electrical component manufacturing and installation.

Technical Specifications

• Ac Max I R Breaking Capacity I1: 50 kA
• Ac Or Dc: AC/DC
• Ampere Rating: 200 A
• Body Insulating Material: GMG
• Connection Terminal Material: Tin-Plated Brass
• Connection Terminal Type: Blade
• Frequency Hz : 50/60 Hz
• Mounting Method: Bolted
• Product Length: 5.09 in
• Product Weight: 0.6 lb
• Rated Voltage Ac Ul: 700 V
• Rated Voltage Dc Ul: 650 V
• Rohs Compliant: Yes
• Speed Characteristic: High Speed

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Industrial Motor Control Centers
• Commercial Power Distribution Systems
• Manufacturing Equipment Protection
• Data Center Power Infrastructure
• Healthcare Facility Electrical Systems
• Educational Institution Power Distribution
• Critical Process Equipment Protection

Why Choose Mersen Quality?

Mersen high-speed fuses deliver proven reliability with RoHS compliant construction and professional-grade GMG insulating materials. The robust tin-plated brass terminals and compact 5.09-inch design ensure dependable performance in demanding electrical protection applications where fast fault clearing and consistent operation are essential.
