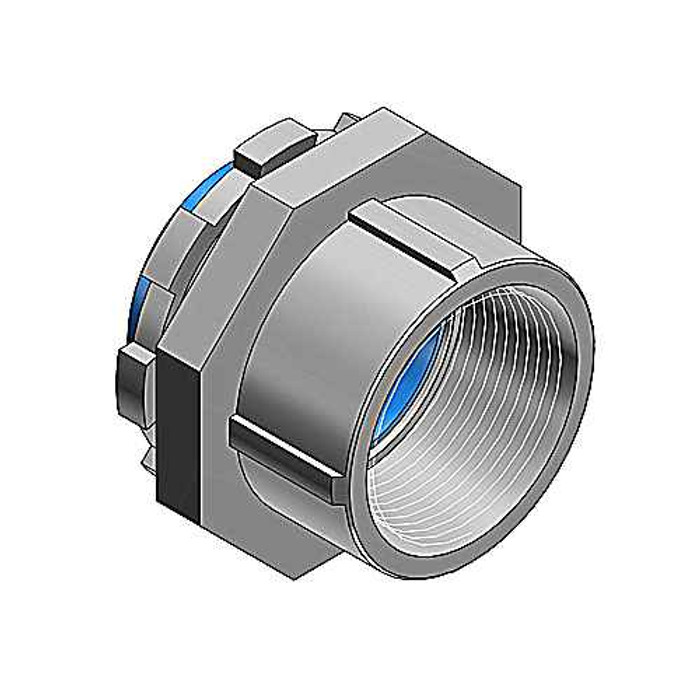

Hub Connector
403-TB - spec sheet
Features
- Tapered internal threads for water-tight/dust-tight union
- Suitable for hazardous locations use in Class I, Division 2; Class II, Division 1&2; Class III, Division 1 & 2 per NEC 501-4(b); 502-4 (a) and 503-3 (a).
- Rugged steel/malleable iron construction
- When used with neoprene O-ring, provides watertight threaded hub on enclosures
- Suitable for hazardous locations use in Class II, Groups E, F, G & Class III locations per CEC 18-202; 18-252; 18-302; 18-352.
- To positively bond conduit to box or enclosure.
- Threads relieved to prevent bottoming of conduit, ensuring sound assembly
- Hardened steel/malleable iron/copper-free aluminum locknuts designed to provide high quality ground continuity; extended reach of locknut permits clamping on thin boxes and enclosures
- Insulated throat, insulates conductors, prevents abrasion and thinning of conductor insulation, reduces wire pull effort
- UL Listed 105 degree C
- Recessed sealing ring at box end; sealing ring captivated
403-TB - spec sheet
Manufacturer Resources
Product Specs
- Approved In Combination With Protective Conduit Csa:
- Y
- Approved In Combination With Protective Conduit Ul:
- Y
- Connection Type Screw Connection To Housing:
- Thread
- Construction Type:
- Internal thread
- Etim:
- EC001180 Screw connection for protective metallic hose
- Inner Quantity:
- 5
- Material:
- Aluminum
- Material Housing:
- Steel
- Model:
- Straight
- Nominal Size In Inch:
- 1 inch
- One Piece:
- N
- Operating Temperature:
- 0-+105°C
- Outer Quantity:
- 25
- Product Group:
- Connectors
- Revolving Thread:
- N
- Standard:
- UL E23018, CSA
- Surface Protection:
- Other
- Temperature Rating:
- UL Listed 105 Degrees C
- Thread Type:
- NPT
- Type:
- Hub Connector
- Unspsc:
- 39121311 Electrical fittings
- Weight Uom:
- 36 lbs. per 100
- Department:
- Electrical
- Product Subgroup:
- Electrical Connectors
- Product Type:
- Hub Connector
