Overview

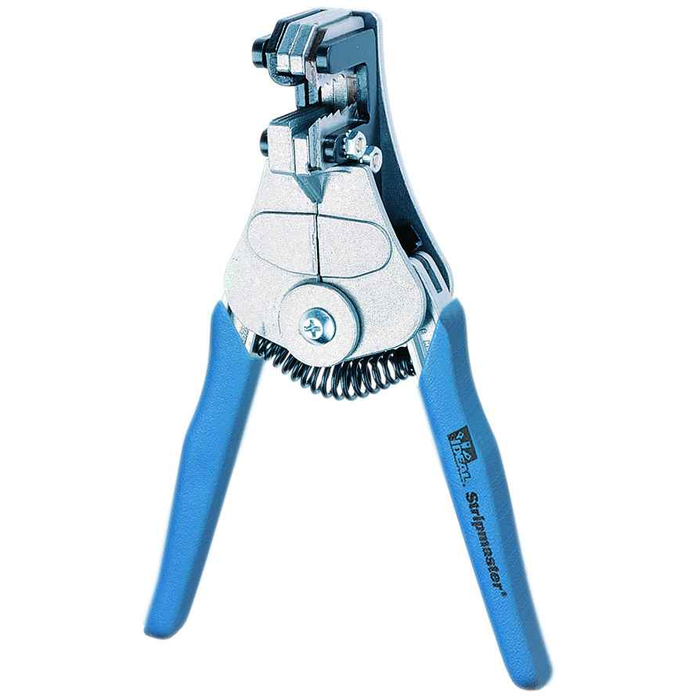

- The versatile Stripmaster®/Stripmaster® Lite Wire Strippers are the standard of the industry. They incorporate a gripper that firmly holds the wire in a center-line position with the stripping hole. The lever action of the stripper offers a mechanical advantage that makes stripping easier. This aids in production applications and reduces operator fatigue. One squeeze strips the wire clean, up to a full 7/8 in. (22mm). The jaws are automatically held open to allow removal of the wire without damaging its end. This stripper virtually eliminates all nicking, cutting or fraying on non-precision wire.
Features
- One-step stripping enhances productivity
- Precision-ground, knife-type blades provide clean, accurate stripping
- Sturdy die-cast zinc frame provides long-term durability
- 90-day warranty
Manufacturer Resources
Product Specs
- Product Group:
- Hand Tools
- Department:
- Electrical
- Product Subgroup:
- Wire Strippers & Crimpers
- Product Type:
- Wire Stripper
Ideal Industries 45-092 – Frequently Asked Questions
1) What wire sizes does the IDEAL 45-092 Stripmaster handle?
The 45-092 Stripmaster covers 10 through 22 AWG, so it spans typical building branch-circuit conductors down through control and low-voltage wiring. One squeeze of the lever strips the insulation clean, and the jaws hold open afterward so you can pull the conductor out without damaging the end.
2) How long a strip can I get in one pull with the Stripmaster 45-092?
Up to a full 7/8 inch (22 mm) of insulation in a single squeeze. That is enough for most terminal blocks, wire nuts and screw terminations without going back for a second bite, which is why it gets used on repetitive panel and harness work.
3) Will a Stripmaster nick the conductor on fine stranded or solid wire?
The 45-092 uses precision-ground knife-type blades and a gripper that holds the wire centered on the stripping hole, which virtually eliminates nicking, cutting or fraying on non-precision wire. For precision aerospace or Teflon-insulated conductors, step up to a tool rated for precision wire instead.
4) Is the 45-092 Stripmaster durable enough for all-day production stripping?
It is built for exactly that. The frame is die-cast zinc for long-term durability, and the lever action gives a mechanical advantage that cuts operator fatigue on repetitive stripping, so it holds up in panel shops and assembly work rather than occasional service calls.
5) What is the exact part number to order for the IDEAL 10-22 AWG Stripmaster?
Order IDEAL Industries 45-092. That is the single model for the 10-22 AWG Stripmaster wire stripper, so there are no handing, size or finish options to specify.
