Ideal Industries Vinyl Insulated Butt Splice 16-14 AWG Tin-Plated Brass Crimp Terminal

Ideal Industries Vinyl Insulated Butt Splice 16-14 AWG

Professional-Grade Crimp Terminal for Electrical Connections

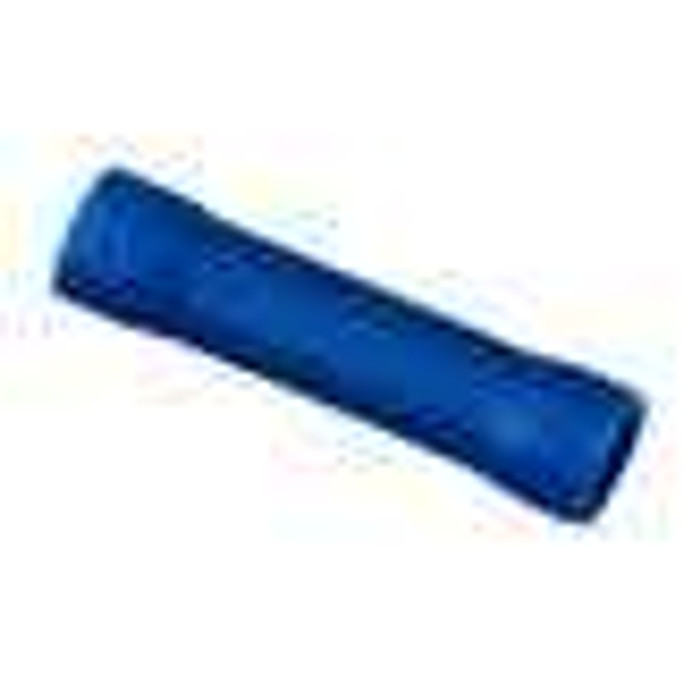

The Ideal Industries Vinyl Insulated Butt Splice delivers professional-grade electrical connection performance for 16-14 AWG wire applications. This tin-plated brass terminal features vinyl insulation designed for electricians, telecommunications professionals, and electrical contractors, providing the reliable performance and industry-leading quality that electrical professionals demand for secure wire-to-wire connections.

Professional Features & Benefits

Superior Connection Performance

• Internal Barrel Serrations - Grip wires tightly to resist pull-out and reduce electrical resistance for long-lasting connections
• Tin-Plated Brass Construction - Provides excellent corrosion resistance and conductivity for reliable electrical performance
• Butted Seam Construction - Prevents splitting under maximum crimping pressure ensuring consistent terminal integrity
• Shouldered Barrel Design - Quickly positions terminal for proper crimping and professional installation results

Enhanced Safety & Reliability

• Vinyl Insulation - Provides electrical isolation and protection against accidental contact and environmental exposure
• Expanded Insulation Entry - Accommodates wide variety of insulation diameters while providing additional wire support
• Color-Coded Identification - Enables quick wire range identification reducing installation errors and improving safety

Technical Specifications

Wire Range: 16-14 AWG (1.5-2.5 mm²), Maximum Wire Insulation Diameter: 0.177 inches (4.5mm), Construction: Tin-plated brass barrel with vinyl insulation, Termination Style: Crimp connection, Package Quantity: 25 terminals per box, Temperature Rating: Standard electrical operating range, Compliance: Designed for electrical code requirements and professional installations.

Installation & Setup

1. Strip wire insulation to proper length ensuring clean copper conductor exposure for optimal connection
2. Insert stripped wire fully into terminal barrel until conductor reaches internal serrations
3. Position terminal in appropriate crimp tool die ensuring proper alignment for consistent compression
4. Apply crimping pressure using recommended crimp tool until terminal barrel forms secure connection
5. Verify connection integrity by gently tugging wire to confirm proper mechanical and electrical bond
6. Inspect vinyl insulation for proper coverage and protection of connection point

Professional Applications

Ideal for:

• Residential Electrical - Branch circuit connections, fixture wiring, and general electrical installations
• Commercial Construction - Building wiring systems, lighting circuits, and electrical panel connections
• Industrial Wiring - Control panel connections, motor wiring, and equipment electrical systems
• Telecommunications - Low voltage connections, communication system wiring, and data circuit applications
• Automotive Electrical - Vehicle wiring repairs, electrical system modifications, and accessory installations
• Marine Applications - Boat electrical systems requiring corrosion-resistant connections in harsh environments
• HVAC Systems - Heating and cooling equipment wiring, thermostat connections, and control circuits
• Electrical Maintenance - Wire repairs, circuit modifications, and electrical system upgrades

Tin-Plated Brass Advantage

Ideal Industries tin-plated brass construction provides superior corrosion resistance and electrical conductivity compared to standard brass terminals. The tin plating prevents oxidation and ensures long-term connection reliability, while the brass base material offers excellent mechanical strength and electrical performance for demanding electrical applications.

Why Choose Ideal Industries Quality?

Ideal Industries demonstrates unwavering commitment to electrical safety through precision-engineered terminals that meet stringent electrical codes and professional standards. Each butt splice undergoes rigorous quality testing to ensure reliable performance, proper insulation properties, and consistent crimping characteristics that electrical professionals trust for critical electrical connections and code-compliant installations.
