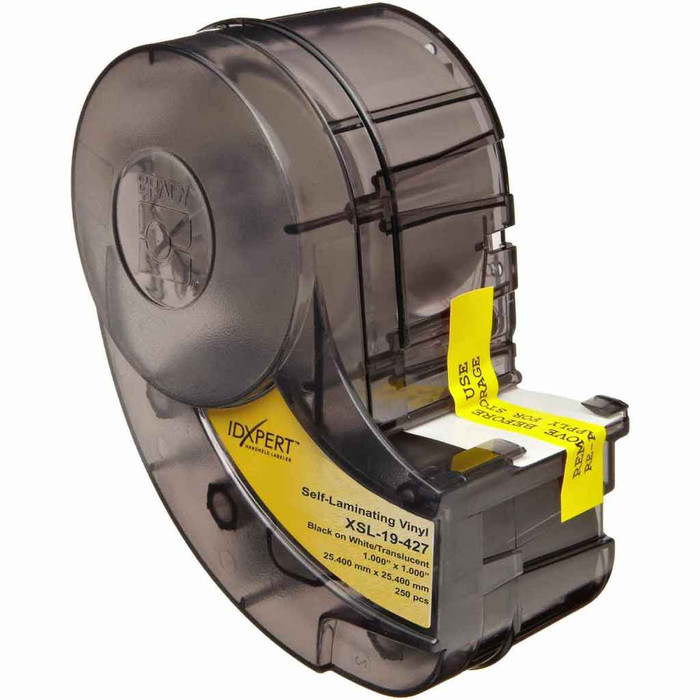

IDXPERT Series Self-Laminating Vinyl Wire and Cable Labels, 1" H x 1" W, Cartridge of 250 Labels
XSL-19-427 - spec sheet
Features
- UL approved
- Durable, permanent acrylic adhesive has outstanding water and oil resistance
- All-in-one cartridge includes label supply and R4300 Series ribbon
- Provided in a self-laminated format with a white printable zone and translucent overlaminating area to protect text
XSL-19-427 - spec sheet
Manufacturer Resources
Product Specs
- Adhesive Type:
- Permanent Acrylic
- Application:
- Data and Telecommunications Labeling; Electrical Labeling; Wire and Cable Labeling
- Brady Material Number:
- B-427
- Compatible Surface Types:
- General
- Contains Ca Prop 65 Substance:
- No - Does not contain
- Contains Heavy Metal S :
- No - Does not contain
- Dimensions 2:
- 1 in H x 1 in W
- Dimensions Metric :
- 25.4 mm H
- Dot Regulated Product:
- No = not regulated by DOT
- Enables Industry Compliance:
- ASTM D 1000; ASTM D 2979; ASTM G 155; UL Recognized
- Eu Rohs Compliance:
- Pass 2011/65/EU(Pass 2015/863)
- Eu Rohs Compliant:
- Yes
- For Use With Printer:
- IDXPERT™ Handheld Label Maker
- Height In Ft Yd :
- 1 in
- Height Mm Cm M :
- 25.4 mm
- Indoor Or Outdoor Use:
- Outdoor Use
- Label Media Format:
- Label/Media in Cartridge with Ribbon
- Label Properties:
- Self Laminating Labels & Wraps
- Label Tape Size In Ft Yd :
- 1 in H x 1 in W
- Material Properties:
- Flame-retardant; Self-laminating
- Maximum Service Temperature C:
- 70 °C
- Maximum Service Temperature F:
- 158 °F
- Maximum Wire Gauge:
- 10 gauge
- Minimum Service Temperature C:
- -70 °C
- Minimum Service Temperature F:
- -94 °F
- Minimum Wire Gauge:
- 12 gauge
- National Stock Number Nsn :
- 7.69002E+12
- Primary Noun Basic Function:
- Label
- Print Technology:
- Thermal Transfer
- Printable Area Dimensions:
- 0.375 in H x 1 in W
- Printable Area Dimensions Metric :
- 9.53 mm H x 25.4 mm W
- Printable Area Height In Ft Yd :
- 0.375 in
- Printable Area Height Mm Cm M :
- 9.53 mm
- Printable Area Width In Ft Yd :
- 1 in
- Printable Area Width Mm Cm M :
- 25.4 mm
- Printer And Label Applications:
- Wire & Cable
- Product Dimensions:
- 1 in H x 1 in W
- Product Finish:
- Matte
- Product Material:
- Self-laminating Vinyl
- Product Shape:
- Square
- Quantity Per Roll:
- 250
- Quantity Per Row:
- 1
- Resistance Properties:
- Chemical-Resistant; Humidity-Resistant; Oil-Resistant; Water-Resisitant; Weather-Resistant
- Ribbon Color:
- Black
- Ribbon Series:
- R4300
- Sap B Number:
- B-427
- Sds Safety Data Sheet Required:
- No = MSDS/SDS is not required
- Secondary Label Included:
- Secondary Label is Not Included
- Sign Size General:
- 1 in x 1 in
- Tape Color:
- Clear/White
- Thickness In Ft Yd :
- 0.004 in
- Thickness Mm Cm M :
- 0.102 mm
- Total Quantity:
- 250
- Trade Name:
- IDXpert™
- Width In Ft Yd :
- 1 in
- Width Mm Cm M :
- 25.4 mm
- Wire Gauge Range:
- 12 gauge to 10 gauge
- Department:
- Electrical
Brady XSL-19-427 – Frequently Asked Questions
1) What wire size do Brady XSL-19-427 self-laminating labels fit?
The XSL-19-427 label is sized for 12 gauge to 10 gauge wire. On anything heavier the 1 inch wide wrap won't have enough translucent overlaminate left to cover the printed text, and on much finer conductors you get excess tail. For bundles or larger cable, step up to a wider B-427 size.
2) Which Brady printer does the XSL-19-427 cartridge work in?
It is made for the IDXPERT handheld label maker. The cartridge is an all-in-one: label stock plus a black R4300 Series thermal transfer ribbon in the same housing, so there is no separate ribbon to buy or load.
3) How much text actually fits on a 1 inch self-laminating wire label?
The label is 1 x 1 inch overall, but only a 0.375 in H x 1 in W white zone is printable. The rest is clear overlaminate that wraps over the print. Plan circuit IDs and cable numbers around that 3/8 inch by 1 inch window, not the full square.
4) Will these labels hold up in an unconditioned mechanical room or outdoors?
Service range runs -70 C to 70 C (-94 F to 158 F), and the vinyl is rated for outdoor use with weather, humidity, water, oil and chemical resistance. That covers rooftop conduit runs, exterior pull boxes and uncooled equipment rooms. For anything running hotter than 158 F at the conductor surface, pick a higher-temperature Brady material.
5) Are these Brady XSL-19-427 labels flame-retardant and UL recognized for electrical work?
The vinyl is flame-retardant and UL Recognized, and it also supports ASTM D 1000, ASTM D 2979 and ASTM G 155. That is the combination facility and MRO buyers usually need on record for wire, cable and telecom identification inside electrical rooms.
6) Why choose a self-laminating wrap label instead of a plain vinyl wire marker?
A self-laminating wrap prints on a white zone and then carries a translucent tail that wraps back over the text, so abrasion from pulling conductors, oil and cleaning chemicals cannot scrub the print off. A plain vinyl marker leaves the ink exposed. That matters most on panel and telecom work where the tag has to stay readable years after the install.
7) What adhesive is on these labels, and will it stay stuck to oily cable jacket?
Permanent acrylic adhesive, with stated oil and water resistance, on a 0.004 in (0.102 mm) thick vinyl face. It is a general-surface adhesive, so wipe the jacket down before applying; once set, permanent acrylic is not meant to be repositioned.
8) How many labels come in one XSL-19-427 cartridge?
Each cartridge holds 250 labels, one per row, with the ribbon included. For a specifier working out quantities: one cartridge tags 250 conductors, so a 48-port telecom room labeled at both ends eats roughly 100 of them.
