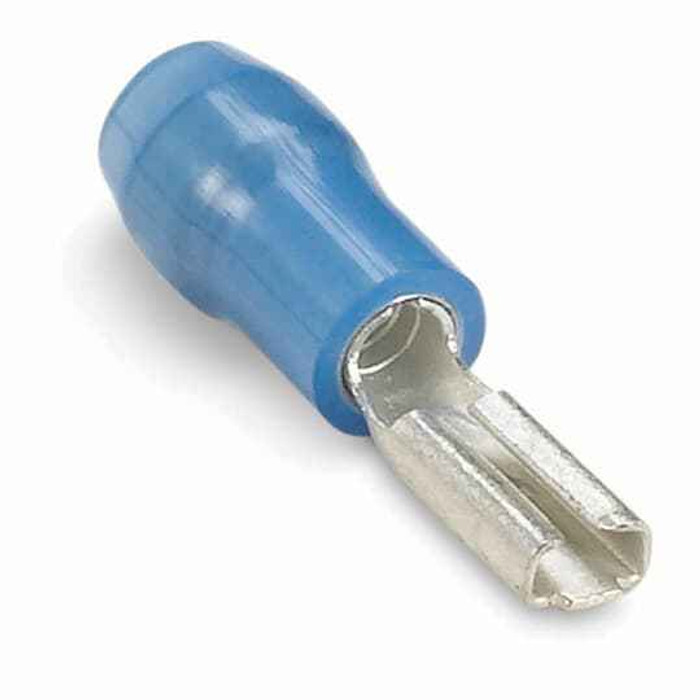

INS NYL FEMALE-110 DISC 16-14 AWG
Manufacturer Resources
Product Specs
- Country Of Origin:
- United States (US)
- Insulation Material:
- Nylon/Polyamide
- Product Subgroup:
- Disconnects
- Product Type:
- Nylon Insulated Female Disconnect
- Voltage Rating:
- 600 V
- Wire Size:
- 16-14 AWG
- Department:
- Electrical
- Product Group:
- Wire Termination
- Product Color:
- Blue
- Product Material:
- Brass
Sta-Kon RB10-SK – Frequently Asked Questions
1) What wire gauge does the Sta-Kon RB10-SK female disconnect crimp onto?
The RB10-SK takes 16-14 AWG stranded or solid copper wire. The blue insulation is the standard color code for that 16-14 range, so you can confirm the gauge on a finished harness at a glance without checking the stamp.
2) What size tab does this .110 female disconnect fit?
It is a .110 series female disconnect, so it slides onto a 0.110 inch wide male tab or blade. It will not grip a .187 or .250 tab, which is what most appliance and HVAC terminals use, so check the tab width on your switch or relay before ordering.
3) Is the Sta-Kon RB10-SK rated for 600 volt control wiring?
Yes. The RB10-SK carries a 600 V rating, which covers typical motor control, panel, and appliance circuits. The nylon insulating sleeve is what provides that dielectric barrier over the crimp.
4) Why choose a nylon insulated disconnect over a vinyl one?
Nylon/polyamide sleeves resist abrasion and cracking better than vinyl and tolerate higher temperatures, which matters in cabinets where harnesses get pulled through sheet metal or sit near warm components. The RB10-SK uses a nylon/polyamide sleeve. If you need the sleeve to stay flexible at low cost on a low-stress bench build, a vinyl insulated .110 female in the same 16-14 range is the cheaper route.
5) What is the terminal barrel made of, and can I use it on aluminum wire?
The barrel is brass, which is a copper alloy intended for copper conductors. Use it on copper wire only. Aluminum conductors need a terminal specifically marked AL or AL9CU, and the RB10-SK is not that.
6) Do I need a special crimper for the Sta-Kon RB10-SK?
Use an insulated-terminal crimper set up for the 16-14 AWG (blue) nest. A nylon sleeve does not compress the way vinyl does, so a cheap plier-style stamped crimper tends to split the insulation or under-form the barrel. A ratcheting insulated crimp tool with the blue die gives a repeatable pull-tested crimp.
7) Is the Sta-Kon RB10-SK made in the USA?
Country of origin is the United States, which is the detail that matters if you are buying against a Buy American or domestic-preference line item on a government, school, or healthcare MRO order. Order by part number RB10-SK.
8) Can I standardize my panel builds on this terminal, or do I need other sizes too?
The RB10-SK only covers 16-14 AWG on .110 tabs. Anything thinner (22-18 AWG) or any circuit landing on a .187 or .250 tab needs a different disconnect, so a stocking kit for a mixed panel usually carries three gauge ranges across two or three tab widths rather than one part.
