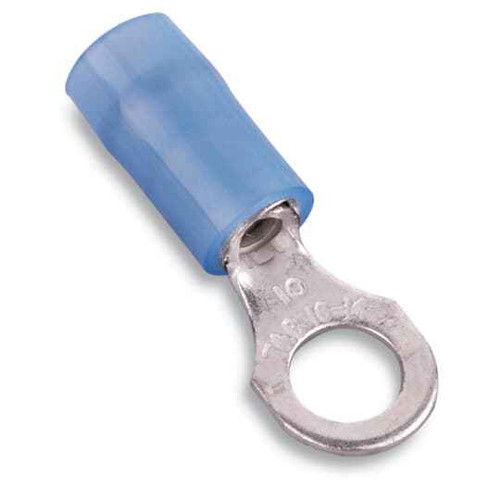

Sta-Kon RB863-SC INS NYL RING TERM,18-14,No8,BLUE

The RB863-SC takes 18 to 14 AWG stranded wire. Blue insulation is the standard color code for that 16-14 AWG band, and the barrel is sized to crimp anywhere in the 18-14 range, so one terminal covers most control wiring and 14 AWG branch circuit conductors. If you are terminating 12 or 10 AWG, you need a yellow-coded terminal instead.

It is a No. 8 ring, so it drops over a #8 screw or stud, which is what you find on most terminal blocks, ground screws, and small lug points. A #10 stud will not pass through the ring, and on a #6 screw the ring will sit loose unless you add a washer.

A ring terminal such as the RB863-SC has to come off the stud to be removed, which is why it is specified where vibration or an accidental pull could drop a connection, including grounds and motor terminals. A spade (fork) terminal slides out sideways from under a loosened screw, which is faster for service work on panels you open often. If nothing in the spec or inspection requires a closed ring, the fork saves time; if it does, use the ring.

Nylon. Nylon insulated terminals hold up better to heat and to abrasion than vinyl-insulated ones, and the funnel entry on a nylon barrel is less likely to split when you crimp a full 14 AWG conductor into it. If you are working in a warm enclosure or pulling harnesses through a chase, the nylon body is the reason to pick this one over a vinyl equivalent.

Use an insulated-terminal crimper matched to the 18-14 AWG (blue) nest. A nylon insulated barrel is crimped through the insulation, so a plain non-insulated or open-barrel die will crush the nylon and leave an unreliable joint. Nothing is supplied with the terminal itself, so the crimp tool is a separate line on the order.

Country of origin is the United States, which is what matters if you are buying on a government, federal, or institutional contract with domestic-content language on the purchase order.

Insulated barrel terminals like the RB863-SC are intended for stranded conductors in the 18-14 AWG range. Solid wire does not deform in the barrel the way strands do, so the crimp relies on brute mechanical bite and can loosen. For a solid-wire ground pigtail, land the conductor directly under a ground screw or use a connector rated for solid wire.

Order it as Sta-Kon RB863-SC. That single part number covers the nylon insulated ring terminal, 18-14 AWG, No. 8 ring, blue.
