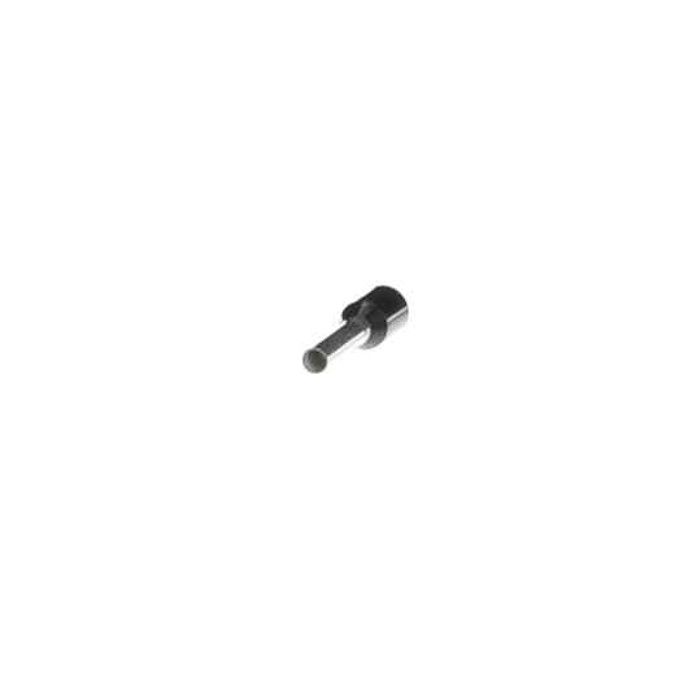

INS PP FERRULE 16, 1.5 MM2, LG .65
Manufacturer Resources
Product Specs
- Country Of Origin:
- Germany (DE)
- Product Subgroup:
- Ferrules
- Product Type:
- Polypropylene Insulated Ferrule
- Standards:
- UL E489056
- Wire Size:
- 16 AWG
- Department:
- Electrical
- Product Group:
- Wire Termination
- Product Color:
- Black
- Product Material:
- Copper
Sta-Kon F2032 – Frequently Asked Questions
1) Why use a ferrule like the Sta-Kon F2032 instead of landing bare stranded wire in a terminal block?
A crimped ferrule turns stranded 16 AWG into a single solid pin, so no strand escapes the clamp and the screw pressure stays even. Bare stranded wire in a screw terminal tends to splay and loosen over time. The F2032 is a copper barrel with a polypropylene insulated collar, which also keeps the strands from fraying back behind the terminal.
2) Is the Sta-Kon F2032 ferrule UL recognized?
It carries UL file E489056, listed in the product standards data for the F2032 ferrule. That is the identifier to quote when a panel inspector or a spec reviewer asks for the UL reference on the termination.
3) What is the exact part number and manufacturer for this 1.5 mm2 insulated ferrule?
Sta-Kon F2032 is the manufacturer part number for the insulated polypropylene ferrule sized to 16 AWG / 1.5 mm2 with a 0.65 length designation. It is made in Germany.
4) Do I need a special crimper for the Sta-Kon F2032 ferrule?
Ferrules need a four-indent or hex ferrule crimper matched to the conductor size, not a standard insulated-terminal tool. The F2032 is a 16 AWG / 1.5 mm2 ferrule, so set the tool to the 1.5 mm2 die position. A pliers-style squeeze on a ferrule leaves an oval barrel that will not seat properly in a cage clamp.
5) What color is the insulation on the F2032 ferrule, and does the color code the wire size?
The F2032 collar is black. Insulated ferrules are color coded by conductor size, so on a panel built with color-coded ferrules the black collar is what identifies the 16 AWG / 1.5 mm2 position at a glance. If you are standardizing a control cabinet, keep the same color convention across the other sizes you stock.
