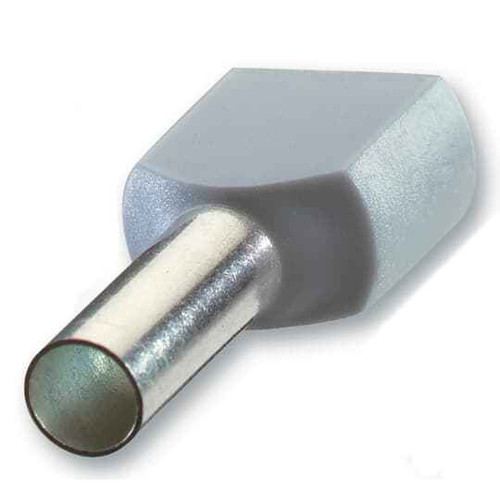

INS PP TWIN FERRULE 2X10, 2X6.00 M
Manufacturer Resources
Product Specs
- Country Of Origin:
- Germany (DE)
- Product Subgroup:
- Ferrules
- Product Type:
- Polypropylene Insulated Twin Ferrule
- Standards:
- UL E489056
- Wire Size:
- 2x10 AWG
- Department:
- Electrical
- Product Group:
- Wire Termination
- Product Color:
- Yellow
- Product Material:
- Copper
Sta-Kon F8011 – Frequently Asked Questions
1) What wire size does the Sta-Kon F8011 twin ferrule take?
The F8011 is a twin ferrule sized for two 10 AWG conductors in one barrel. It is not a single-wire ferrule, so if you only have one 10 AWG conductor to terminate you want a single ferrule in that size instead.
2) Can I land two wires in one terminal screw with the Sta-Kon F8011?
That is exactly what a twin ferrule is for. The F8011 crimps two 10 AWG stranded conductors into a single copper barrel so they enter a terminal block or breaker as one solid, insulated pin. It keeps strands from splaying and avoids doubling loose wires under one screw.
3) Does the Sta-Kon F8011 ferrule carry a UL file number for panel inspections?
Yes. The F8011 is covered under UL file E489056, which is the reference an inspector or panel shop QA will want when documenting terminations in a UL-listed enclosure.
4) Do I need a special crimper for a twin ferrule like the F8011?
A twin ferrule has to be crimped with a ferrule crimp tool, not a standard insulated-terminal plier. Twin barrels of this size generally call for a four-indent or trapezoidal ferrule crimper with a die that covers 10 AWG twin, since the barrel is wider than a single-wire ferrule of the same gauge. The ferrule itself ships without a tool.
5) Should I use a twin ferrule or two single ferrules when jumpering between terminal blocks?
If both conductors land in the same terminal, use the twin ferrule, the F8011 for a pair of 10 AWG. Two single ferrules stacked in one clamp is where you get uneven pressure and loosening over thermal cycles. Use single ferrules only when each wire gets its own terminal point.
6) Is the yellow color on a 10 AWG twin ferrule a size code?
Yellow is the insulation color on the F8011, and on insulated ferrules the collar color is the size identifier used by the manufacturer. On this part yellow corresponds to the 2x10 AWG twin barrel, which makes it easy to pick the right one out of a bin on a panel build.
7) What is the insulation on the F8011 ferrule made of, and will it hold up in a hot control panel?
The collar is polypropylene and the conductive barrel is copper. Polypropylene insulation is the standard sleeve material on wire-end ferrules for control and panel wiring, and it resists the abrasion of pushing through wire duct and terminal blocks.
8) Where is the Sta-Kon F8011 ferrule made?
Germany. Country of origin on the F8011 is listed as Germany (DE), which matters for projects with domestic-preference or origin-documentation requirements on the submittal.
