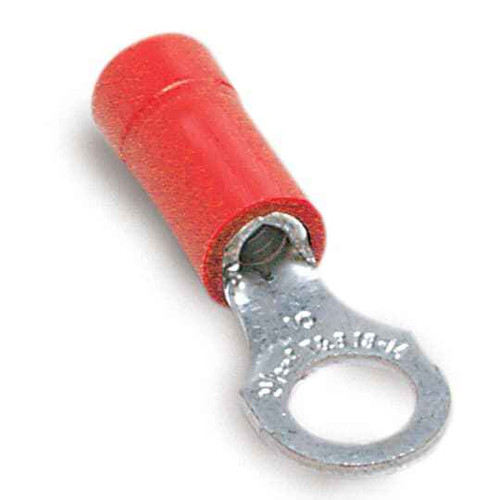

INS VIN RING TERM 22-16 BLT No8 RED
Manufacturer Resources
Product Specs
- Country Of Origin:
- United States (US)
- Product Subgroup:
- General Terminals
- Product Type:
- Vinyl Insulated Ring Terminal
- Standards:
- UL E9809
- Voltage Rating:
- 600 V
- Wire Size:
- 22-16 AWG
- Department:
- Electrical
- Product Group:
- Wire Termination
- Product Color:
- Red
- Product Material:
- Copper
Sta-Kon 18RA-8CP – Frequently Asked Questions
1) What wire sizes does the Sta-Kon 18RA-8CP ring terminal crimp onto?
The 18RA-8CP takes 22 to 16 AWG stranded wire. The red vinyl insulation is the standard color code for that range, so if you are sorting a bin by color, red is your 22-16 size. Anything larger than 16 AWG will not seat in the barrel and will not hold a proper crimp.
2) Is this red ring terminal rated for 600 volt control and branch circuit work?
Yes, the 18RA-8CP carries a 600 V rating and is UL recognized under file E9809. That covers typical control panel, motor control, and lighting branch wiring at 600 V or less.
3) Is the ring terminal copper or aluminum, and can I use it on aluminum conductors?
The barrel and tongue are copper, so use it on copper conductors only. Aluminum wire needs a terminal specifically marked AL or AL9CU, and putting aluminum into a copper-only barrel invites a loose, oxidizing joint.
4) Should I use a ring terminal or a fork terminal on my terminal block?
A ring like the 18RA-8CP has to come off the stud entirely, which means loosening the screw all the way, but it cannot vibrate off under a backed-out screw. A fork or spade slides out sideways for faster service. For motor connections, vehicle and equipment grounds, and anything subject to vibration, the ring is the one to use. For a panel you service often, pick a spade.
5) Do I need a special crimper for Sta-Kon 18RA-8CP terminals?
Insulated terminals in the 22-16 AWG range crimp with the red-coded nest of a standard insulated-terminal crimper. Do not use pliers or an uninsulated (open barrel) die, both of which will crush the vinyl sleeve without forming the barrel properly on the conductor.
6) Is the Sta-Kon 18RA-8CP made in the USA for Buy American jobs?
Country of origin on the 18RA-8CP is the United States, which is what institutional and government procurement normally needs documented on electrical terminations.
7) What is the exact part number to order this red #8 ring terminal?
Order by manufacturer part number 18RA-8CP from Sta-Kon. That single part number covers the 22-16 AWG, No. 8 stud, red insulated ring configuration, there are no finish or size options to choose.
