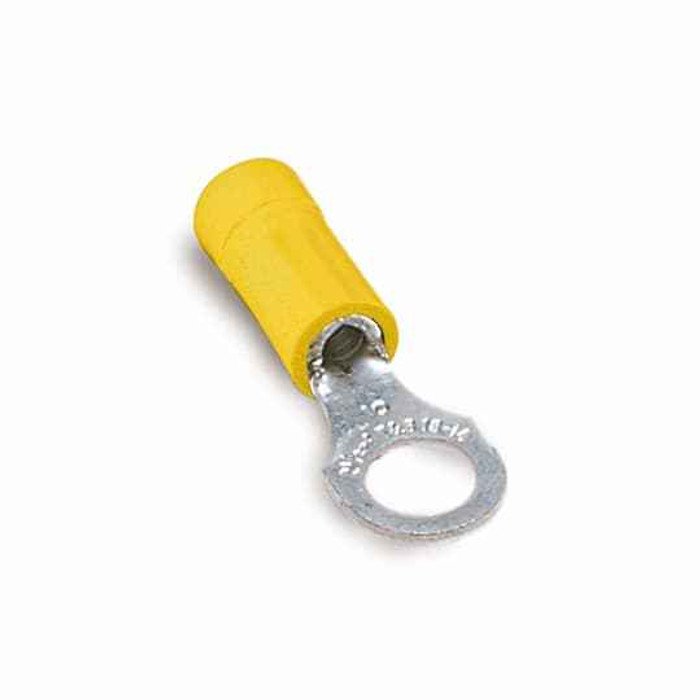

INS VIN RNG TRM 12-10 No6 YEL MYLAR
Manufacturer Resources
Product Specs
- Country Of Origin:
- United States (US)
- Product Subgroup:
- General Terminals
- Product Type:
- Vinyl Insulated Ring Terminal
- Standards:
- UL E9809
- Wire Size:
- 12-10 AWG
- Department:
- Electrical
- Product Group:
- Wire Termination
- Product Color:
- Yellow
- Product Material:
- Copper
Sta-Kon RC337M – Frequently Asked Questions
1) What wire gauge does the Sta-Kon RC337M ring terminal take?
The RC337M is sized for 12-10 AWG conductor. That range is what the yellow insulation signals on standard vinyl terminal color coding, so if you are crimping 16-14 AWG you want a blue-bodied terminal instead, and 22-18 AWG takes a red one. Crimping 14 AWG into a 12-10 barrel will not hold.
2) Is the RC337M terminal UL recognized?
It carries UL file E9809. That is the reference an inspector or a spec writer will want when the panel schedule calls for listed terminations.
3) Is the Sta-Kon RC337M barrel copper or aluminum?
Copper. That makes it a copper-conductor terminal, so use it on copper wire only, not on aluminum branch conductors, which need a terminal rated AL or AL/CU.
4) Can I use a ring terminal like the RC337M instead of a spade on a panel terminal strip?
A ring is the right call anywhere the connection is subject to vibration or where a loose lug cannot be allowed to back off the screw, since the ring is captive once the screw is tightened. A spade or fork terminal only makes sense when you need to service the connection without fully removing the screw. For motor leads, grounding screws, and equipment terminal boards, the ring is the standard choice, and the RC337M covers 12-10 AWG on a No. 6 stud.
5) What does the Mylar in the RC337M part description mean for installation?
The RC337M is a vinyl insulated ring terminal with a Mylar-lined sleeve. The liner sits between the vinyl and the copper barrel so the insulation does not split or extrude when the crimp tool closes on it. Practically, it means you crimp it the same way as any insulated ring, in the insulated-barrel nest of the tool, not the bare-terminal nest.
6) Are these Sta-Kon ring terminals made in the USA?
Country of origin on the RC337M is the United States, which matters if you are buying against a domestic-preference clause on a government or institutional job.
