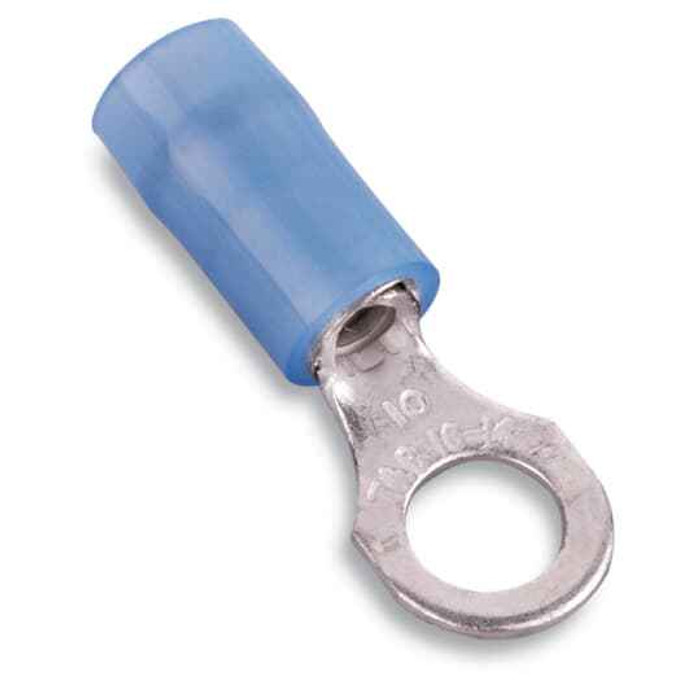

INSNYL RING TRM 18-14 BOLT No6 BLUE
Manufacturer Resources
Product Specs
- Country Of Origin:
- United States (US)
- Product Subgroup:
- General Terminals
- Product Type:
- Nylon Insulated Ring Terminal
- Standards:
- UL E9809
- Voltage Rating:
- 600 V
- Wire Size:
- 18-14 AWG
- Department:
- Electrical
- Product Group:
- Wire Termination
- Product Color:
- Blue
- Product Material:
- Copper
Sta-Kon RB853 – Frequently Asked Questions
1) What wire gauge does the Sta-Kon RB853 ring terminal crimp onto?
The RB853 is sized for 18 to 14 AWG stranded copper conductors. That is the blue insulation band in the standard color code, so if the wire you are terminating is 16 or 14 AWG lighting or control wire, this is the right size. For 22-16 AWG you need a red-insulated terminal instead, and for 12-10 AWG a yellow one.
2) What size stud or screw will the RB853 ring fit over?
The ring is drilled for a No. 6 stud or screw, so it drops over a 6-32 machine screw or terminal stud. If your terminal block uses a No. 8 or No. 10 screw, the ring will not pass over it and you need the larger-ring version in the same 18-14 AWG blue size.
3) Is the RB853 ring terminal rated for 600 volt circuits?
Yes, 600 V is the rating on this nylon insulated ring terminal, which covers general branch circuit, control panel, and motor connection work. It is also UL listed under file E9809.
4) Why pick a ring terminal instead of a fork or spade terminal?
A ring terminal has to be fully removed from the stud to come off, so it cannot vibrate or pull out from under a loosening screw. That makes the RB853 the choice for motor leads, equipment grounds, and panel studs where vibration or code requires a captive connection. A fork or spade terminal slides off sideways and is only worth using where you need to swap wires quickly on a crowded terminal strip.
5) Is the RB853 barrel copper or aluminum, and can I use it on aluminum wire?
The conductor barrel is copper, so use it on copper conductors only. Aluminum building wire needs a terminal marked AL or AL9CU with the appropriate inhibitor compound.
6) Do I need a special crimper for the RB853 terminal?
Use a controlled-cycle insulated terminal crimper set to the blue 18-14 AWG nest. Sta-Kon terminals are designed around a tool-matched crimp, and a generic plier-style crimper on the wrong nest will either under-crimp or split the nylon sleeve. Match the die color to the terminal color and you are on the right nest.
7) What is the difference between nylon insulated and vinyl insulated ring terminals?
Nylon, which is what the RB853 uses, holds up better to abrasion, heat, and solvents than vinyl and resists splitting when the barrel is crimped. Vinyl is the cheaper general purpose sleeve. For panel builds and equipment wiring where the harness gets pulled through raceway or sees heat, nylon is the one to spec.
8) Is the Sta-Kon RB853 made in the USA?
Yes. Country of origin on the RB853 is the United States, which matters if your job carries a domestic sourcing requirement on a government or federally funded project.
