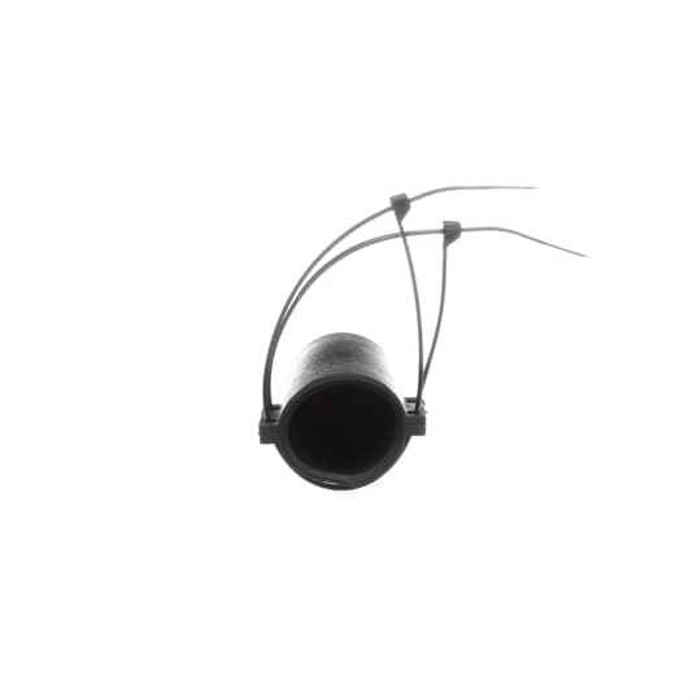

Shrink-Kon MSC2 Insulated Motor Splice Cover 12-2 AWG 600V with 3/4" Bolt

Professional Re-enterable Motor Stub Insulation Solution

The Shrink-Kon MSC2 Insulated Motor Splice Cover delivers reliable protection for motor stub splices in 12-2 AWG applications. This professional-grade splice insulator features a modified neoprene elastomer body with nylon straps, providing dependable insulation rated for 600V service. The re-enterable design allows for easy access and maintenance while maintaining consistent protection for motor connections.

Professional Features & Benefits

  • 600V Voltage Rating: Provides reliable electrical insulation for demanding motor applications and industrial environments.
  • 12-2 AWG Wire Compatibility: Precisely sized for common motor wiring configurations ensuring proper fit and protection.
  • Modified Neoprene Elastomer Body: Delivers superior durability and weather resistance for long-term performance in various conditions.
  • Re-enterable Design: Allows easy access for maintenance and inspection without compromising insulation integrity.
  • Nylon Strap Construction: Provides secure attachment and reliable retention under vibration and thermal cycling.
  • UL E9809 Listed: Meets rigorous safety standards for electrical insulation applications ensuring code compliance.
  • 3/4" Bolt Accommodation: Designed to fit standard motor terminal configurations for versatile installation options.

Technical Specifications

  • Application: Insulate motor stub splices quickly and dependably.
  • Brand Label: Shrink-Kon
  • Country Of Origin: China (CN)
  • Effective Date: 19790920
  • Idea Granular Category Code Igcc : 5069 >> Electrical insulators
  • Product Material: Body - Modified Neoprene Elastomer, Straps - Nylon
  • Product Name: INSULATOR SPLICE
  • Product Type: Splice Insulators and Insulating Covers
  • Selling Unit Of Measure: each
  • Special Functions: Re-enterable motor stub insulator.
  • Standards: UL E9809
  • Voltage Rating: 600 V
  • Weee Category: Product Not in WEEE Scope

Professional Applications

  • Motor Control Centers and Electrical Panels
  • Industrial Manufacturing Equipment
  • HVAC Motor Connections
  • Pump and Compressor Installations
  • Commercial Building Systems
  • Maintenance and Retrofit Projects
  • Electrical Contractor Services

Why Choose Shrink-Kon Quality?

Shrink-Kon delivers proven reliability in electrical insulation solutions with UL E9809 listing ensuring safety and code compliance. The durable modified neoprene elastomer construction and re-enterable design provide long-term value for professional motor splice protection applications.

Manufacturer Resources

Product Specs

Application:
Insulate motor stub splices quickly and dependably.
Brand Label:
Shrink-Kon
Country Of Origin:
China (CN)
Effective Date:
19790920
Idea Granular Category Code Igcc :
5069 >> Electrical insulators
Product Material:
Body - Modified Neoprene Elastomer, Straps - Nylon
Product Name:
INSULATOR SPLICE
Product Type:
Splice Insulators and Insulating Covers
Selling Unit Of Measure:
each
Special Functions:
Re-enterable motor stub insulator.
Standards:
UL E9809
Voltage Rating:
600 V
Weee Category:
Product Not in WEEE Scope

Shrink-Kon MSC2 – Frequently Asked Questions

1) What wire size does the Shrink-Kon MSC2 motor splice cover fit?
The MSC2 is sized for 12-2 AWG motor stub splices and accommodates a 3/4 inch bolt connection. If your motor leads fall outside the 12 through 2 AWG range, or the terminal bolt is a different size, you need a different cover in the MSC family rather than forcing this one.
2) Can I open a Shrink-Kon MSC2 splice cover back up to service the motor connection?
Yes. The MSC2 is a re-enterable motor stub insulator, so the nylon straps release and let you get back into the splice for testing or a lead change, then close it again. That is the main difference between this and heat shrink tubing or tape, which you have to cut off and replace every time you break the connection.
3) Is the MSC2 splice cover rated for 600 volt motor circuits?
600 V is the rating on the MSC2, which covers standard 208, 240, 480 volt three phase motor feeds found in motor control centers and industrial equipment.
4) What is the MSC2 splice cover made of, and will it stand up to motor heat and vibration?
The body is a modified neoprene elastomer with nylon straps. Neoprene handles the moisture and temperature cycling around motor terminations, and the nylon straps keep the cover clamped through vibration rather than relying on adhesive that creeps.
5) Do I get one MSC2 cover or a pack?
The MSC2 sells each, so a three phase motor stub with three separate splices takes three covers. Order by the count of individual connections you are insulating, not by the motor.
6) Should I use a re-enterable splice cover or heat shrink on a motor stub?
Pick the re-enterable cover when the connection is one you expect to open again, a pump or HVAC motor that gets swapped, a lead that gets megger tested, or anything in a motor control center you maintain. Heat shrink is the better call on a permanent, buried, or sealed splice you never plan to touch. The MSC2 is the re-enterable side of that choice, 600V rated for 12-2 AWG on a 3/4 inch bolt.
7) What part number do I order for the Shrink-Kon motor splice insulator?
The manufacturer part number is MSC2, branded Shrink-Kon, catalogued by the manufacturer as INSULATOR SPLICE. There is a single configuration, so there is no finish, length, or handing to specify with it.
