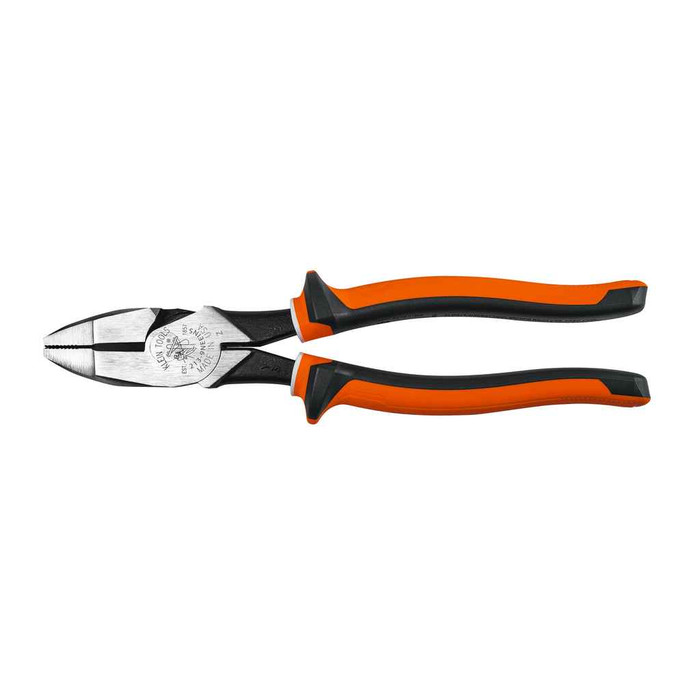

Insulated Pliers, Slim Handle Side Cutters, 9-Inch
2139NEEINS - spec sheet
Features
- Precision machined knives cut cleanly and crisply even on fine stranded wire, mule tape and pull line
- Durable, molded insulation meets or exceeds ASTM F1505 and IEC 60900 standards for insulated tools
- Made in USA with custom US-made tool steel
- 1000 V Rated for safety on the job. VDE Certified with unique three-part insulation with white underlayer provides warning sign that insulation may be compromised
- Streamlined design with sure-gripping, cross-hatched knurled jaws
- Multi-color, sleek design with small thumb guards for ease of handling and easy storage in your tool belt
- Hot-riveted joint for smooth action with New England nose type
- Integral Guards Help Prevent Hand Contact With Conductive Parts
Warnings
- Wear approved eye protection.
- Do NOT touch uninsulated portion of the tool or any conductive object when either might contact an energized source.
- Only use tools that are marked with the official international 1000-volt rating symbol shown below, if there is any chance that the tools will make contact with an energized source.
- Keep tool clean, dry and free of any surface contaminants.
- Destroy tool if the insulation is damaged in any way.
- Whenever possible, always de-energize lines and equipment prior to working on or around them.
- Do NOT use to pry or chisel.
- Always inspect your tools before use.
2139NEEINS - spec sheet
Manufacturer Resources
Product Specs
- Cut Style:
- Side-Cutting
- Cutting Knives:
- 1
- Depth:
- 9.6250 in
- Handle Color:
- Orange/Gray
- Handle Finish:
- 3-Layer Insulation
- Handle Length:
- 5.58" (14.2 cm)
- Height:
- 0.6250 in
- Insulated:
- Yes
- Jaw Capacity:
- 1.375" (3.5 cm)
- Jaw Length:
- 1.91" (4.9 cm)
- Jaw Thickness:
- 0.62" (1.6 cm)
- Jaw Width:
- 1.25" (3.2 cm)
- Joint Type:
- Hot-Riveted
- Knife Length:
- 0.781" (2 cm)
- Material:
- Induction Hardened Steel
- Nose Type:
- New England
- Overall Length:
- 9.53" (24.2 cm)
- Overall Width:
- 2.49" (6.3 cm)
- Screw Shearing:
- No
- Standards:
- IEC 60900 and ASTM F1505
- Strips And Cuts Awg Solid:
- No
- Strips And Cuts Awg Stranded:
- No
- Tether Capable:
- No
- Type:
- Side Cutting Pliers
- Weight:
- 1.2500 lbs
- Width:
- 5.0000 in
- Department:
- Electrical
- Product Group:
- Hand Tools
- Product Subgroup:
- Pliers & Cutters
- Product Type:
- Side Cutting Pliers
