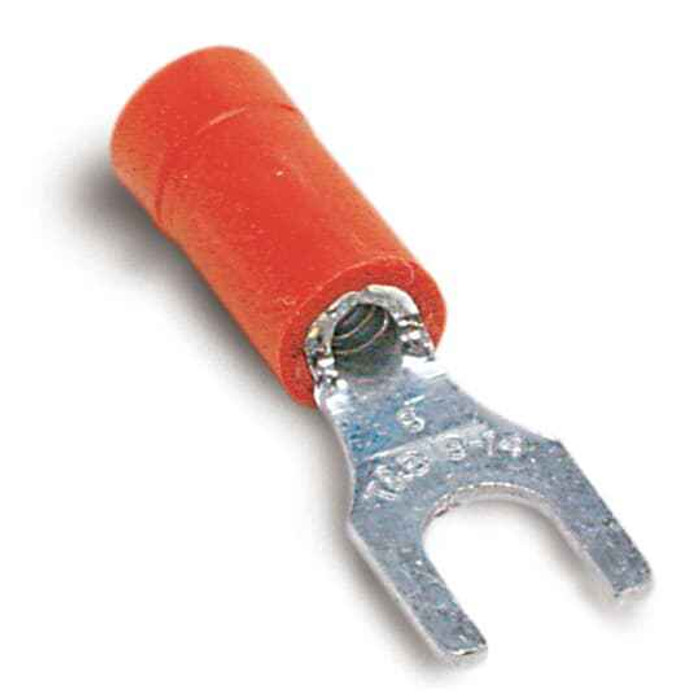

INSVIN FRK TRM 22-16 No6 RED MYLAR
Manufacturer Resources
Product Specs
- Country Of Origin:
- United States (US)
- Product Subgroup:
- General Terminals
- Product Type:
- Vinyl Insulated Fork Terminal
- Standards:
- UL E9809
- Voltage Rating:
- 600 V
- Wire Size:
- 22-16 AWG
- Department:
- Electrical
- Product Group:
- Wire Termination
- Product Color:
- Red
- Product Material:
- Copper
Sta-Kon RA1167M – Frequently Asked Questions
1) What wire sizes does the Sta-Kon RA1167M fork terminal accept?
The Sta-Kon RA1167M crimps onto 22 to 16 AWG stranded copper conductors. The red vinyl insulation is the standard color code for that range, so if you are pulling a terminal off a control panel and it is red, you are generally in the 22-16 AWG band. For 16-14 AWG you need a blue-coded terminal instead, and for 12-10 AWG a yellow one.
2) What screw size does this red fork terminal fit?
It is a No. 6 stud/screw terminal, so it slides under a #6 binding-head screw or stud on a terminal block, barrier strip, or device screw. The fork (spade) tongue means you can slip it on without removing the screw entirely, which is why these get used on panel terminal strips where a ring terminal would force you to back the screw all the way out.
3) Is the Sta-Kon RA1167M UL listed, and what voltage can I use it at?
It carries UL file E9809 and is rated 600 V. That covers typical control circuits, motor control wiring, and line-voltage 120/208/240/480 V panel work found in commercial buildings.
4) Should I use a fork terminal or a ring terminal on my terminal block?
Use the fork, like the RA1167M, when the connection is a screw on a terminal strip you will need to service, add to, or remove without pulling the screw out of the block. Use a ring terminal where vibration or an accidental tug could pull the conductor off the stud, since a ring is captive under the screw head and a fork is not. Both land under a No. 6 screw here; the choice is about serviceability versus a captive connection.
5) Is the barrel on this Sta-Kon terminal copper or aluminum?
Copper. That means it is intended for copper conductors, not aluminum building wire, which requires a terminal specifically marked AL or AL/CU. Dissimilar-metal connections on aluminum conductors without the right terminal and compound lead to oxidation and heating at the joint.
6) Is the Sta-Kon RA1167M made in the USA for a Buy American spec?
Country of origin is the United States. If you are bidding government, federal, or institutional work with a domestic-content clause on electrical materials, that is the sourcing detail the submittal asks for on the terminal line item.
7) What does the "Mylar" in the RA1167M description mean?
The vinyl insulating sleeve on this red fork terminal is Mylar lined, a reinforcing film inside the insulation sleeve. The crimp still has to be made with a tool matched to the 22-16 AWG insulated-terminal nest; the sleeve is insulation and strain relief, not a substitute for a proper crimp.
8) Is there more than one version of the RA1167M to choose from?
No options to specify. The RA1167M is a single configuration: red vinyl insulated fork terminal, 22-16 AWG, No. 6 stud. You order it by that part number, with no finish, size, or packaging choice to make.
