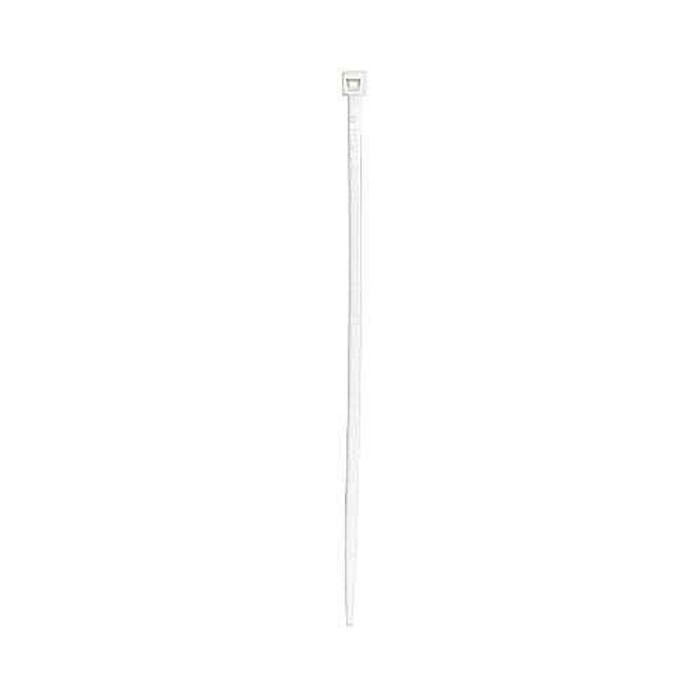

TY300-40 - spec sheet
Features
- The integrally formed nylon pawl combines low insertion and high locking strength.
- Application Tools: ERG50, QC-100, L-200, L-400-C
TY300-40 - spec sheet
Manufacturer Resources
Product Specs
- Band Closure:
- Plastic lip/-cam
- Band Width:
- 3.556mm
- Bundle Diameter:
- 0.06 Inches/1.6mm-3.0 Inches76mm
- Color:
- Natural
- Colour:
- Natural colour
- Etim:
- EC000046 Cable tie
- Halogen Free:
- Y
- Inner Quantity:
- 1000
- Length:
- 11.4 in ; 289.56 mm
- Length Belt Tape Tie:
- 289.56mm
- Lock Mechanism:
- Plastic Pawl
- Material:
- Plastic
- Material Quality:
- Polyamide PA
- Max Bundle Diameter:
- 76.2mm
- Mil Approval:
- N
- Min Holding Force:
- 180N
- Model:
- Internal toothing
- Operating Temperature:
- -40-+85°C
- Outer Dimensions Inches :
- 19.4x14.3x13.4
- Outer Quantity:
- 10000
- Product Group:
- Wiring Accessories
- Reflective Fluorescent :
- N
- Solvable Fastener:
- N
- Standard:
- UL E49405
- Surface Protection:
- Untreated
- Tensile Strength:
- 40 Pounds/180 Newtons
- Text Strip:
- None
- Thickness:
- 0.046 Inch/1.17mm
- Tie Thickness:
- 1.17mm
- Transparent:
- N
- Type:
- Intermediate
- Ul Approval:
- Y
- Unspsc:
- 39121703 Cable ties
- Weight Uom:
- 2.5 lbs. per 1000
- Width:
- 0.14 in ; 3.556 mm
- Department:
- Electrical
- Product Subgroup:
- Cable Ties
- Product Type:
- Intermediate
