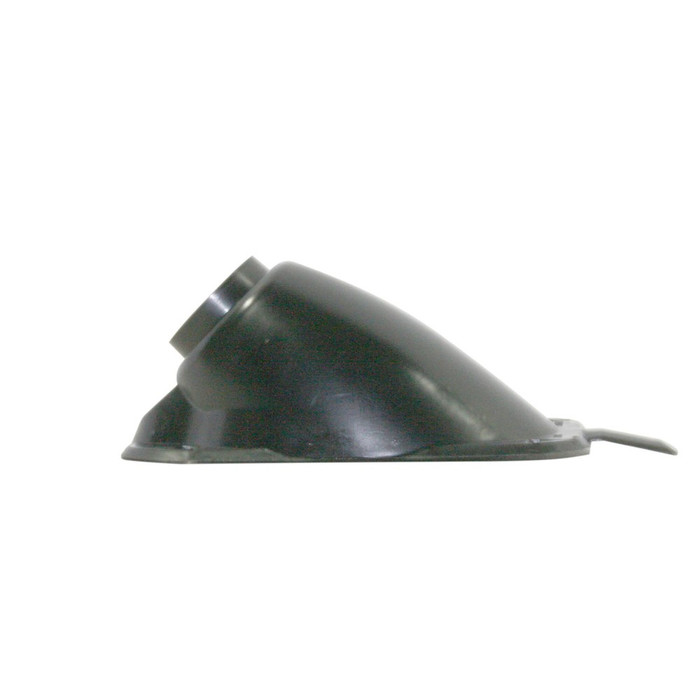

IPEX 08923 Kwikon Angled Stubby ENT Form Fitting, 45° PE
The IPEX Kwikon Angled Stubby is a 45° PE form fitting engineered to eliminate the need for drilling holes in plywood forms to create stubdowns for ENT raceway. Available in 3/4" and 1" trade sizes, the fitting's angled design lets ENT raceway maintain a low profile during the concrete pour, allowing all sizes of Kwikon ENT to be used in most slabs. The 45° angled geometry creates a smooth bending radius for easy pull-through of circuit wiring, and the fitting attaches to forms with a nail or screw connection for fast, reliable jobsite setup.
Key Features
- Trade Size Range: Available in 3/4" and 1" sizes to accommodate common ENT raceway runs in concrete slab construction.
- Durable Construction: Molded from PE (polyethylene) for a rugged, form-friendly fitting that withstands the concrete pour.
- 45° Angled Design: Creates a smooth bending radius for easy pull-through of circuit wiring while keeping the raceway low-profile in the pour.
- Connection Type: Nail or screw attachment secures the stubby directly to plywood forms, no drilling required.
- Pullout Tab: Allows for ease of stubby removal after the concrete pour.
- 'T' Slot Nail Hole: Permits the head of the nail to pull through when the forms are removed.
- Enlarged Inside Throat: Facilitates easy installation of PVC female adapters as required.
- Finish: Black color for consistent jobsite identification.
Technical Specifications
- Angle: 45D
- Material: PE
- Country of Origin: Canada
- Color: Black
- Connection Type: Nail or Screw
- Trade Size Options: 3/4", 1"
Typical Applications
- Concrete Slab Stubdown Installations
- ENT Raceway Systems in Poured Concrete
- Commercial and Residential Concrete Form Work
- New Construction Electrical Rough-In
- Circuit Wiring Pull-Through Applications
Why IPEX?
IPEX's Kwikon Angled Stubby brings a purpose-built solution to a common concrete forming challenge, combining durable PE construction with a smart 45° angled design that saves installation time and protects the raceway during the pour. Manufactured in Canada, this fitting reflects IPEX's focus on practical, field-tested designs for electrical contractors working with ENT raceway systems across both 3/4" and 1" sizes. The pullout tab, 'T' slot nail hole, and enlarged throat area all point to thoughtful engineering aimed at faster, cleaner installations on the jobsite.
Manufacturer Resources
Spec Sheet
Product Specs
- Angle:
- 45°
- Country of Origin:
- Canada
- Base Quantity Metric:
- 1.000
- NAFTA:
- Yes
- Connection Type:
- Nail or Screw
- list_batch:
- IPE-20260924
- Product Type:
- ENT Fitting
- Department:
- Electrical
- Product Subgroup:
- ENT
- Product Material:
- PE
- Product Color:
- BLACK
- Product Size:
- 3/4 x 45"
- Product Size:
- 1 x 45"
IPEX 089234 – Frequently Asked Questions
1) What is the IPEX Kwikon angled stubby actually used for on a concrete pour?
It is a 45 degree form fitting that creates ENT stubdowns through a plywood form without drilling the form. The stubby nails or screws to the form face, the ENT raceway connects into it, and the 45 degree geometry keeps the tube low in the slab while giving wire a smooth radius to pull through. After the pour, a pullout tab lets you strip the stubby back out.
2) Do I have to drill my plywood forms to set an ENT stubdown?
Not with this fitting. The Kwikon angled stubby fastens to the form face with a nail or a screw, so the form stays intact. The nail hole is a 'T' slot, which lets the nail head pull through when the forms are stripped instead of fighting the fastener out of the plywood.
3) Will a 45 degree stubby fit in a thin slab?
That is the reason for the angle. Because the stubby turns the raceway at 45 degrees rather than straight up, the ENT keeps a low profile in the pour, which is what allows all sizes of Kwikon ENT to be used in most slabs. If you need a true vertical riser out of the deck, a 45 degree stubby is the wrong geometry for it.
4) Can I terminate a PVC female adapter into this stubby?
Yes. The inside throat is enlarged specifically so PVC female adapters install easily where the job calls for one.
5) Is the stubby left in the slab or removed after stripping forms?
It comes out. The fitting has a pullout tab for removal after the concrete is poured, and the 'T' slot nail hole releases the nail head when forms are removed. What stays in the slab is the ENT raceway and its stubdown.
6) Is the stubby tough enough to survive the concrete pour?
It is molded from PE (polyethylene), chosen to stand up to the pour while still flexing enough to be pulled back out with the tab once the forms come off. The body is black for identification on the deck.
7) Where is the IPEX Kwikon stubby made, and does it qualify under NAFTA for public work?
Manufactured in Canada, and flagged NAFTA qualifying, which matters on government and institutional jobs with trade-agreement sourcing language in the spec.
