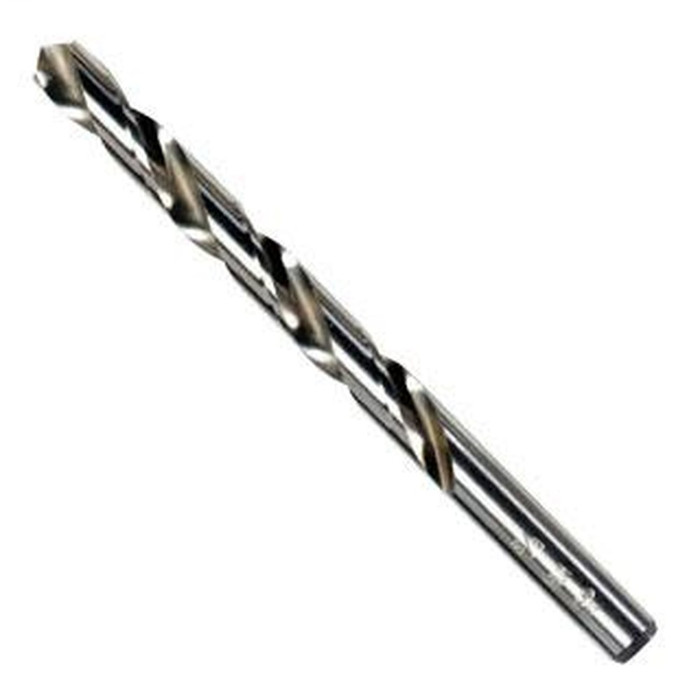

Irwin 60109 M-2 High Speed Steel Fractional Jobber Length Drill Bit, 118° Point

Irwin 60109 M-2 High Speed Steel Fractional Jobber Length Drill Bit, 118° Point

(No reviews yet) Write a Review

Model: 60109

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1.07
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Irwin M-2 High Speed Steel Fractional Jobber Length Drill Bit, 118° Point

The Irwin M-2 High Speed Steel Fractional Jobber Length Drill Bit is a general-purpose drill bit engineered for reliable drilling in wood, metal, and plastic. This family is available in fractional sizes ranging from 9/64" to 15/32", each machined with a straight shank and a standard 118° point from M-2 high speed steel for a dependable balance of strength, heat resistance, and wear resistance. The straight shank and fractional sizing provide a straightforward fit for standard drill chucks on drill presses and hand-held drills, giving shop and jobsite professionals a versatile everyday drilling option across multiple sizes.

Key Features

  • Fractional Size Range: Available in fractional sizes from 9/64" to 15/32" to suit a range of drilling tasks.
  • 118° Point Angle: Standard 118 degree point geometry engineered for use in wood, metal, and plastic.
  • Durable Construction: Machined from M-2 high speed steel for the best combination of strength, heat resistance, and wear resistance.
  • Straight Shank: Straight shank design provides secure, centered seating in standard drill chucks.
  • Jobber Length: Jobber length sizing offers a versatile balance of reach and rigidity for general-purpose drilling tasks.
  • Fractional Sizing: Fractional sizing for straightforward compatibility with common fractional-size drill chucks and tooling.
  • General Purpose Design: Engineered as an all-around bit suited to drilling across wood, metal, and plastic materials.

Technical Specifications

  • Refer to manufacturer documentation for complete technical specifications.

Typical Applications

  • Drilling in Wood
  • Drilling in Metal
  • Drilling in Plastic
  • General Purpose Shop and Jobsite Drilling
  • Drill Press and Hand Drill Applications
  • New Construction and Repair Projects

Why Irwin?

Irwin builds this fractional jobber length drill bit family from M-2 high speed steel to deliver a proven balance of strength, heat resistance, and wear resistance across demanding drilling applications, with sizes spanning 9/64" to 15/32" to match the task at hand. The standard 118° point and straight shank design make these bits a dependable, general-purpose choice for drilling in wood, metal, and plastic alike, whether you're working on a drill press or a hand drill. Count on Irwin for consistent, professional-grade drilling performance built to hold up job after job.

Manufacturer Resources

Spec Sheet

Product Specs

list_batch:
IRW-20260923
Product Type:
Drill Bit
Grade:
M-2
Department:
Electrical
Product Subgroup:
Hole Saws & Bits
Product Material:
High Speed Steel
Product Size:
15/32 inches

Irwin 60109 – Frequently Asked Questions

1) What sizes can I order in the Irwin 60109 jobber length drill bit family?
Six orderable fractional sizes: 9/64, 11/64, 1/4, 9/32, 5/16 and 3/8 inch, with part numbers 60109, 60111, 60116, 60118, 60120 and 60124 running in that order. The family as a whole is described across a 9/64 to 15/32 inch fractional range, so if you need a size above 3/8 inch you are looking at a different part number in the series.
2) Will these Irwin bits drill steel, or are they wood only?
They handle both. The bits are machined from M-2 high speed steel with a 118 degree point, a general-purpose combination meant for wood, metal and plastic. M-2 is a moly high speed steel grade that holds an edge at the heat generated when cutting mild steel, so for electrical and MRO work like drilling a panel, a strut or a junction box these will cut. For hardened or abrasive material you want a cobalt or carbide bit instead.
3) Do these drill bits fit a standard keyless chuck on a cordless drill?
Yes. Every size in the family has a straight shank in a fractional diameter, so it seats centered in any standard three-jaw chuck, keyed or keyless, on a hand drill or a drill press. The largest size offered here is 3/8 inch, which is within the capacity of a 3/8 inch chuck.
4) Is a 118 degree point the right choice, or should I look for a 135 degree split point?
118 degree is the standard general-purpose geometry and it is what these Irwin bits are ground to. It starts well in wood and plastic and cuts mild steel fine when you center-punch or pilot first. A 135 degree split point is the better pick if you are drilling harder metal freehand and need the bit to self-center without walking. For mixed shop and jobsite drilling across wood, metal and plastic, 118 degree is the workhorse.
5) Are these Irwin bits sold individually by size or only as a set?
By size. Each fractional diameter carries its own Irwin part number, so you order only the one you are burning through: 60109 for 9/64, 60111 for 11/64, 60116 for 1/4, 60118 for 9/32, 60120 for 5/16 and 60124 for 3/8 inch. That makes it straightforward to restock a single size in a van or crib rather than replacing a whole index.
6) What does jobber length mean, and will these reach through a 2x4?
Jobber length is the standard general-purpose flute length, the middle ground between short screw-machine bits and long aid-extension bits, balancing reach against rigidity. In small fractional diameters like 9/64 or 11/64 inch the usable flute is only a couple of inches, so a jobber bit will not pass fully through a nominal 2x4 laid flat. For through-drilling framing, use an aid extension or longer bit.
