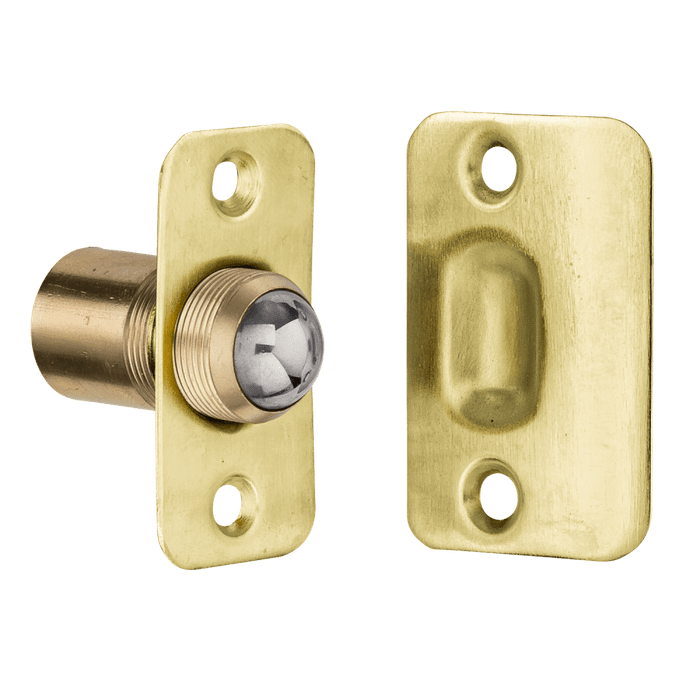

Ives 349 Dual Adjustable Ball Catch with Rounded Corners

Ives 349 Dual Adjustable Ball Catch with Rounded Corners

Professional Door Catch Solution for Light Interior Applications

The Ives 349 Dual Adjustable Ball Catch features rounded corners for easy router installation and dual adjustment capabilities for door clearance and holding strength. This brass construction ball catch includes a lip strike designed for jamb mounting with face plate dimensions of W: 1", H: 2-1/8" and door strike dimensions of W: 1-3/8", H: 2-1/8". Certified to ANSI/BHMA A156.9, B23013 standards for reliable performance in residential applications.

Professional Features & Benefits

• Dual Adjustment System: Independent adjustment for door clearance and holding strength provides precise fit and optimal performance for various door conditions.
• Rounded Corner Design: Radiused corners allow easy installation with a router, simplifying the preparation process and ensuring clean, professional results.
• Free Rolling Ball Mechanism: Ensures smooth, positive and trouble-free action with consistent engagement and release throughout the door’s operational life.
• Adjustable Threaded Barrel: Compensates for various door clearances, accommodating installation tolerances and door settling over time.
• Variable Spring Tension: Adjustable spring tension allows customization of holding strength to match specific application requirements.
• Safety-Focused Strike Design: Rounded corners on strike lip enhance safety while the lip strike configuration is optimized for jamb mounting applications.
• Complete Installation Package: Units packed with wood screws for immediate installation without additional hardware purchases.
• ANSI/BHMA Certification: Meets ANSI/BHMA A156.9, B23013 standards ensuring consistent quality and performance in residential applications.

Technical Specifications

• ANSI/BHMA: ANSI/BHMA A156.9, B23013
• Commercial/Residential: Residential
• Department: Door Hardware
• Door Strike: W: 1-3/8", H: 2-1/8"
• Face Plate: W: 1", H: 2-1/8"
• Product Category: Door Trim and Accessories
• Product Group: Door Trim and Accessories
• Product Model: 349
• Product Subgroup: Door Latches and Catches
• Product Substrate: Brass
• Product Type: Ball Catches
• Subcategory: Latches, Catches and Bolts

Installation & Operation

1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

• Residential Interior Doors
• Light Commercial Interior Applications
• Cabinet and Furniture Doors
• Closet and Storage Room Doors
• Pantry and Utility Room Access
• Multi-Family Housing Units
• Hospitality Guest Room Applications

Why Choose Ives Quality?

Ives ball catch products deliver professional-grade reliability with brass construction and precision-engineered components designed for smooth, trouble-free operation. Meeting ANSI/BHMA A156.9, B23013 standards, this dual adjustable system provides the flexibility and performance needed for demanding residential applications. Engineered for lower frequency opening applications where dependable door closure is essential.
