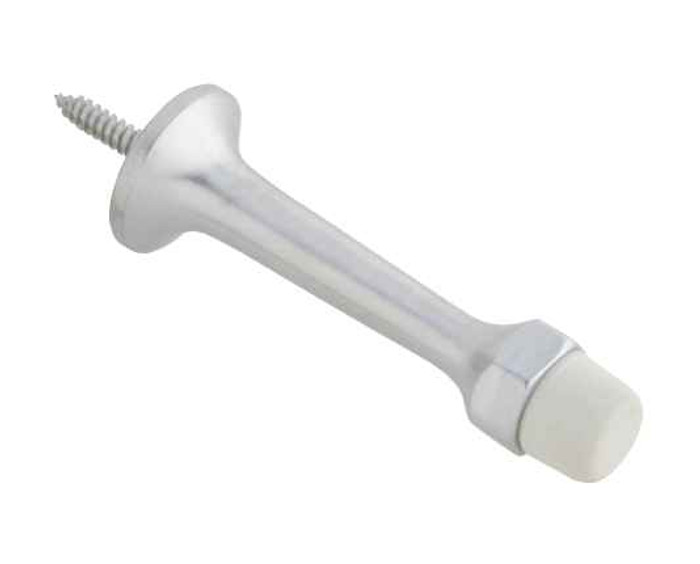

Ives 64A Aluminum Base Door Stop with 3-1/4" Projection

Ives 64A Aluminum Base Door Stop with 3-1/4" Projection

(No reviews yet) Write a Review

Model: IVE-64-A92
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$4.80
$2.26
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Ives 64A Aluminum Base Door Stop with 3-1/4" Projection

Professional Baseboard Door Stop Solution

The Ives 64A Aluminum Base Door Stop delivers reliable door protection with deluxe one-piece styling and 3-1/4" projection. This aluminum construction door stop easily screws into the base and features a hexagonal head design to accommodate wrench or pliers during installation. The white rubber tip provides non-marring protection for walls, molding, and doors while preventing door, wall, and frame damage.

Professional Features & Benefits

  • 3-1/4" Projection: Optimal stopping distance for effective door control and wall protection in residential applications.
  • Aluminum Construction: Durable aluminum base provides long-lasting performance and corrosion resistance for reliable operation.
  • Hexagonal Head Design: Engineered with hexagonal head to accommodate wrench or pliers for secure installation and easy adjustment.
  • Non-Marring Rubber Tip: White rubber tip protects wall finishes, molding, and door surfaces from damage during contact.
  • One-Piece Styling: Deluxe one-piece design eliminates multiple components for streamlined appearance and reliable performance.
  • Easy Installation: Simple screw-in mounting design allows quick installation into baseboard applications.
  • Complete Package: Includes fastener for wood applications for immediate installation capability.
  • ANSI/BHMA Compliance: Meets ANSI/BHMA 156.16 standards for quality assurance and professional applications.

Technical Specifications

  • Commercial/Residential: Residential
  • Department: Door Hardware
  • Package Includes: Fastener for wood applications
  • Product Category: Door Trim and Accessories
  • Product Group: Door Trim and Accessories
  • Product Model: 64A
  • Product Projection: 3-1/4"
  • Product Subgroup: Door Stops, Holders, Silencers & Bumpers
  • Product Substrate: Aluminum
  • Product Type: Door Stops - Baseboard
  • Subcategory: Stops

Installation & Operation

  1. Select appropriate mounting location on baseboard ensuring adequate clearance for door swing and optimal stopping position.
  2. Mark mounting hole location using the door stop as a template, positioning for 3-1/4" projection from wall surface.
  3. Pre-drill pilot hole appropriate for the included wood fastener to prevent splitting.
  4. Install the door stop using the hexagonal head design with wrench or pliers for secure mounting.
  5. Test door operation to verify proper stopping function and adjust position if necessary.
  6. Ensure rubber tip makes proper contact with door surface without excessive pressure that could cause binding.

Professional Applications

  • Residential Interior Doors
  • Bedroom and Bathroom Doors
  • Closet and Utility Room Access
  • Home Office and Study Areas
  • Multi-Family Housing Units
  • Apartment and Condominium Applications
  • Renovation and Remodeling Projects

Why Choose Ives Quality?

Ives door stops deliver professional-grade reliability with aluminum construction and ANSI/BHMA 156.16 compliance for demanding residential applications. The deluxe one-piece styling combined with non-marring rubber tip technology ensures long-term protection for doors, walls, and frames. Engineered for dependable performance where door control and surface protection are essential.

Manufacturer Resources

Ives Full Line Catalog

Product Specs

Subcategory:
Stops
Product Group:
Door Trim and Accessories
Package Includes:
Fastener for wood applications
Product Subgroup:
Door Stops, Holders, Silencers & Bumpers
Product Type:
Door Stops - Baseboard
Commercial/Residential:
Residential
Product Model:
64A
Product Projection:
3-1/4"
Product Category:
Door Trim and Accessories
Product Substrate:
Aluminum
Department:
Door Hardware

Ives IVE-64-A92 – Frequently Asked Questions

1) How far does the Ives 64A baseboard door stop hold the door off the wall?
The 64A projects 3-1/4 inches from the base. That is the distance between the baseboard face and the door when the rubber tip makes contact, so measure from your baseboard to the point on the door you want stopped. If a doorknob or lever needs more clearance than that, look at a longer stop: the Emtek 2231 baseboard stop is 4 inches, and the Delaney solid brass baseboard stop adjusts from 3-1/2 to 4-1/2 inches.
2) Is the Ives 64A rated for commercial or apartment corridor use?
Ives lists the 64A as a residential stop. For apartments, condos, and multi-family units it is doing residential-duty work on unit interior doors, which is what it is built for. On a high-traffic commercial opening, or anywhere the door needs to be held open rather than just stopped, a heavier rigid stop like the Orca Hardware TH-30HD, which functions as a door holder, is the different tool for that job.
3) Can I adjust the projection on the Ives 64A after it is installed?
No. The 64A is fixed at 3-1/4 inches, one piece, with no adjustment in the body. Position matters more than usual because of that: mark and drill where the tip will meet the door squarely. If you need to dial the stop in on site, or you are ordering for openings with different clearances, an adjustable stop such as the Delaney solid brass baseboard stop covering 3-1/2 to 4-1/2 inches is the one to spec.
4) What is a direct alternative to the Ives 64A baseboard door stop if I want a solid brass body instead of aluminum?
The Ives 64A is an aluminum baseboard door stop with a 3-1/4 inch projection. The Delaney Solid Brass Baseboard Door Stop, DLY-40201X, mounts the same way into the baseboard and is solid brass, with a projection adjustable from 3-1/2 to 4-1/2 inches. Emtek's 2231 baseboard door stop is a fixed 4 inch projection. Both are baseboard-mounted stops like the 64A, so the choice comes down to material and how far off the wall you need the door held.
5) The door swings past the baseboard and never touches the wall behind it. What should I use instead of a 64A?
The Ives 64A screws into the baseboard, so it only works where the door face reaches the wall it is mounted on. Where the swing carries past that, a floor-mounted bumper is the usual answer: the Delaney DLY-4029XX is a 2 inch high round solid brass floor bumper that sets into the floor under the door's arc. Hager's 212 takes a different approach again as an adjustable rigid door stop with an 80 to 120 degree range, catching the door at the hinge side rather than at its edge.
6) Is the Orca TH-3118 spring door stop the same thing as an Ives 64A?
No. Both stop a door, but they are different parts. The Ives 64A is a one-piece rigid aluminum stop that screws into the baseboard and has a 3-1/4 inch projection with a white rubber tip. The Orca TH-3118 is a 3-1/8 inch spring door stop, meaning the body flexes on contact rather than standing rigid. Orca also lists the TH-3134 at 3-3/4 inches in the same spring style. If the specification or the existing hardware on the other doors calls for a rigid one-piece base stop, the spring stops are not a like-for-like swap.
7) I need the door to stay open, not just stop. Will the Ives 64A hold it?
The Ives 64A is a stop only - it limits travel with a rubber tip and releases as soon as you pull the door back. For a part that keeps the door standing open, the Orca TH-30HD is listed with a product function of door holder rather than door stop. That is the distinction to check before ordering: a baseboard stop like the 64A protects the wall, a holder keeps the leaf in position.
8) What comes with the Ives 64A door stop, and do I need to buy screws?
A fastener for wood applications ships with each stop, so nothing extra is needed for a standard wood baseboard. Pre-drill a pilot hole so the trim does not split. The head is hexagonal, so it drives with a wrench or pliers rather than a screwdriver, which also lets you back it out slightly to fine tune where the tip lands on the door.
9) What finishes does the Ives 64A base door stop come in?
Three finishes: 703 satin bronze oil-rubbed, 666 bright brass, and 673 aluminum clear coat. For a fleet of units, the clear coat aluminum is the neutral match to most builder-grade trim hardware, while 666 and 703 are the ones to pick when the hinges and levers on the opening are already brass or oil-rubbed bronze.
10) Baseboard stop or spring door stop, which should I use?
A rigid base stop like the 64A is aluminum and one piece, so it takes the door's impact hard and transfers it into the trim. That is the right choice where you want a firm, defined stopping point. A spring stop flexes on contact and absorbs the swing instead, which is easier on light hollow-core doors and on thin trim; the Orca Hardware spring stops come in 3-1/8 inch and 3-3/4 inch lengths if that is the behavior you want.
11) Does the Ives 64A meet ANSI/BHMA standards?
The 64A meets ANSI/BHMA 156.16, the standard covering auxiliary hardware including door stops. That is the reference to cite if a spec or a scope of work calls for BHMA-compliant stops on the trim package.
12) I am standardizing door stops across an apartment building and the baseboard depth varies unit to unit. Fixed or adjustable projection?
The Ives 64A is fixed at a 3-1/4 inch projection, so every opening it goes into needs roughly the same geometry - which is what makes it easy to buy in quantity when the units are built alike. Where the reveal varies, the Delaney DLY-40201X is a baseboard stop with an adjustable 3-1/2 to 4-1/2 inch range, and the Emtek 2231 sits at a fixed 4 inch if the longer reach is uniform. Many fleets carry the fixed 64A as the standard and the adjustable brass stop for the handful of odd openings.
13) What matches an Ives 64A in bright brass if I want the finish to match brass lever trim?
The Ives 64A comes in 666 Bright Brass, along with 703 Satin Bronze Oil-Rubbed and 673 Aluminum Clear Coat. If a solid brass body rather than a brass-finished aluminum one is what the job calls for, the Delaney DLY-40201X baseboard stop and the DLY-4029XX round floor bumper are both solid brass.
14) The opening takes heavy traffic and the doors get thrown open. Is there a heavier stop than the Ives 64A?
The Ives 64A is specified for residential use, with an aluminum body and one-piece construction. Where the traffic is harder, the Orca TH-30HD is an HD rigid door stop, and the Hager 212 is a rigid stop that sets the swing anywhere in an 80 to 120 degree range. Both are rigid rather than spring bodies, so they arrest the door at a set point instead of flexing with it.
15) Will an aluminum door stop corrode in a bathroom or laundry room?
The 64A body is aluminum, which resists corrosion and is why it holds up in bathrooms, laundry areas, and utility rooms where a plated steel stop can rust at the base. It is a common pick for bath and closet doors in rental units for that reason.
16) What is the difference between the Orca TH-3118 and TH-3134 spring stops when replacing a 64A?
They differ in length: the Orca TH-3118 is 3-1/8 inches and the TH-3134 is 3-3/4 inches, both spring door stops. The Ives 64A sits between them at a 3-1/4 inch projection, so the TH-3118 lands closest on reach while the TH-3134 gives extra clearance if the door edge is further from the wall. Note the 64A is a rigid one-piece body, not a spring, so neither Orca is a match on construction.
