Ives 69 Steel Hinge Pin Door S...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$7.40
$4.08

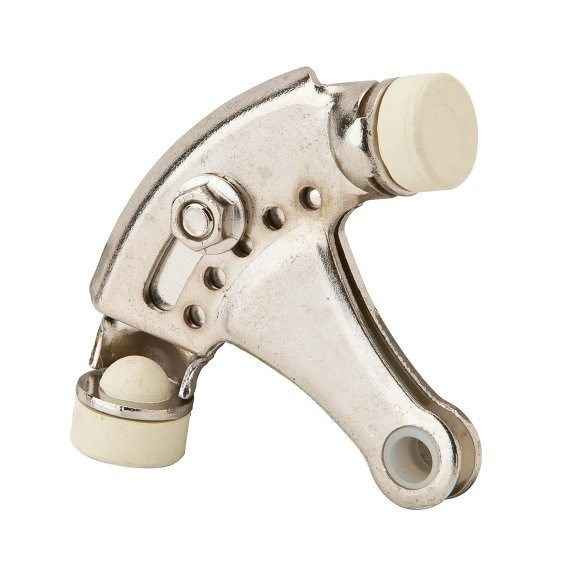

Ives 69 Hinge Pin Door Stop in Bright Nickel (645) finish, showing adjustable opening control bumpers and hinge pin mount

Ives 69 Steel Hinge Pin Door Stop with Adjustable 70-100 Degree Opening Control

(No reviews yet) Write a Review

Model: IVE-69-F26D
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$7.40
$4.08
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Ives 69 Steel Hinge Pin Door Stop with Adjustable 70-100 Degree Opening Control

Economical Residential Door Protection Solution

The Ives 69 Steel Hinge Pin Door Stop provides an economical solution for residential 3-1/2" or 4" hinged doors where standard door stops or overhead installations are not desirable. This adjustable door stop accommodates 70 to 100 degree door openings with positive slip-proof adjustment and features white non-marring rubber tips for surface protection. The removable bushings accommodate 1/4" to 5/16" diameter hinge pins, making installation simple with only a screwdriver required.

Professional Features & Benefits

  • Adjustable Opening Range: 70 to 100 degree door opening adjustment provides precise control for various residential applications.
  • Universal Hinge Pin Compatibility: Removable bushings accommodate 1/4" to 5/16" diameter hinge pins for versatile installation options.
  • Non-Marring Protection: White rubber tips protect door, wall, and frame surfaces from damage while preventing doors from opening too far.
  • Positive Slip-Proof Adjustment: Secure adjustment mechanism maintains door opening position without slipping or drift.
  • Steel Construction: Durable steel construction provides reliable performance for residential door applications.
  • Easy Installation: Simple installation requires only a screwdriver, making it accessible for residential maintenance and improvement projects.
  • ANSI/BHMA Compliance: Meets ANSI/BHMA 156.16 standards for door stops and holders.

Technical Specifications

  • Commercial/Residential: Residential
  • Department: Door Hardware
  • Product Category: Door Trim and Accessories
  • Product Dimension: 1" x 9/16" x 3-1/4"
  • Product Group: Door Trim and Accessories
  • Product Model: 69
  • Product Subgroup: Door Stops, Holders, Silencers & Bumpers
  • Product Substrate: Steel
  • Product Type: Door Stops - Hinge Pin
  • Subcategory: Stops

Installation & Operation

  1. Remove the hinge pin from the door hinge where the stop will be installed.
  2. Select the appropriate removable bushing for your hinge pin diameter (1/4" to 5/16") and install in the door stop.
  3. Thread the hinge pin through the door stop assembly and reinstall in the hinge.
  4. Position the door at the desired opening angle between 70 and 100 degrees.
  5. Adjust the stop mechanism to contact the door or frame at the desired opening position.
  6. Tighten the adjustment mechanism to secure the slip-proof setting and test door operation for proper function.

Professional Applications

  • Residential Interior Doors
  • Apartment and Condominium Units
  • Single-Family Home Door Protection
  • Light-Duty Commercial Residential-Style Doors
  • Retrofit Applications Where Wall Stops Are Not Suitable
  • Doors Without Overhead Stop Systems

Why Choose Ives Quality?

Ives door stops and accessories are engineered with steel construction and meet ANSI/BHMA 156.16 standards for reliable residential door protection. The positive slip-proof adjustment mechanism and non-marring rubber tips demonstrate Ives' commitment to both functionality and surface protection. Designed for easy installation and dependable performance in residential applications where door and wall protection is essential.

Manufacturer Resources

Ives Full Line Catalog

Product Specs

Product Group:
Door Trim and Accessories
Subcategory:
Stops
Product Subgroup:
Door Stops, Holders, Silencers & Bumpers
Product Type:
Door Stops - Hinge Pin
Commercial/Residential:
Residential
Product Model:
69
Product Dimension:
1" x 9/16" x 3-1/4"
Product Category:
Door Trim and Accessories
Product Substrate:
Steel
Department:
Door Hardware

Ives IVE-69-F26D – Frequently Asked Questions

1) Will the Ives 69 hinge pin door stop fit my hinges?
The Ives 69 is built for residential 3-1/2 inch or 4 inch hinged doors, and the removable bushings let it ride on hinge pins from 1/4 inch to 5/16 inch in diameter. You pull the pin on one hinge, drop in the bushing that matches your pin size, and run the pin back through. Measure the pin, not the hinge leaf: a pin fatter than 5/16 inch is outside what the bushings take, and that is the number that decides whether the 69 goes on your door.
2) Is the Ives 69 hinge pin door stop heavy duty enough for a commercial building?
The 69 is a residential-duty stop. Steel body, sized to residential 3-1/2 and 4 inch hinges, and the applications it covers are apartment and condo units, single-family interior doors, and light-duty commercial doors of residential style. On a school corridor, a hospital wing, or any door taking real commercial traffic, spec something heavier. Delaney's Door Saver Commercial Hinge Pin Door Stop and Delaney's Heavy Duty Hinge Pin Door Stop are hinge pin stops from another brand worth pricing for those openings.
3) Should I use a hinge pin door stop or a wall stop?
A hinge pin stop like the Ives 69 catches the swing at the hinge, so nothing gets mounted to the wall, the baseboard, or the floor. That is the reason to pick one: drywall with no blocking behind it, tile or glass on the wall the door swings toward, a floor you do not want to drill, or a door with no overhead closer or holder to hang a stop from. The trade is leverage. A wall or floor stop takes the force out at the far edge of the door where the swing has the least mechanical advantage against it, while a hinge pin stop resists it right at the pivot. That is why the 69 is a residential-duty part rather than a corridor solution, and why the wall stop is still the better answer on a door that gets slammed.
4) What other hinge pin door stops mount the same way as the Ives 69?
The Ives 69 is a steel hinge pin stop that rides on the hinge pin itself, using removable bushings for 1/4 inch to 5/16 inch pins, and caps the door anywhere from 70 to 100 degrees with a positive slip-proof adjustment. Hinge pin stops that go in at the hinge the same way include the Orca Hardware HPDS Hinge Pin Door Stop, the Orca Hardware HPST Series Hinge Pin Stop, the Delaney Door Saver Commercial Hinge Pin Door Stop, and the Delaney Heavy Duty Hinge Pin Door Stop. Because all of them land at the hinge rather than on the wall or the floor, the choice comes down to the duty the opening sees and the finish you need to match: the Ives 69 runs 11 finishes from 632 bright brass to 631 matte black and installs with nothing but a screwdriver.
5) Is the Ives 69 hinge pin door stop meant for commercial traffic, or is there a heavier hinge pin stop to use instead?
The Ives 69 is specified as residential: a steel hinge pin stop for 3-1/2 inch or 4 inch hinged residential doors, with 70 to 100 degree adjustable opening control and white non-marring rubber tips. Where the opening takes commercial traffic, the hinge pin stops carrying that duty in their identity are the Delaney Door Saver Commercial Hinge Pin Door Stop, the Delaney Heavy Duty Hinge Pin Door Stop, and the Orca Hardware HPHD HD Hinge Pin Stop. All three mount at the hinge the way the 69 does, so moving between them does not change the door or frame prep. A property manager standardizing a building can keep the Ives 69 on unit interior doors and specify one of the heavier hinge pin stops on corridor, laundry, or utility doors that get worked harder.
6) Does the Ives 69 hold a door open at a set position, or only limit how far it swings?
The Ives 69 limits travel. You set the adjustment between 70 and 100 degrees, the positive slip-proof mechanism keeps that setting from drifting, and the white non-marring rubber tips take the contact so the door, wall, and frame are not marked. If the job actually calls for holding the door standing open rather than capping its swing, the Orca Hardware HPDS, HPHD, and HPST hinge pin stops each carry a door holder function. Settle that distinction before you order, because a stop and a holder both ride on the hinge pin and look nearly identical once they are on the door.
7) Do I have to drill the door or the frame to put in a hinge pin door stop?
No drilling and no fasteners into the door, frame, wall, or floor. Installing the Ives 69 takes a screwdriver: pull the hinge pin, fit the bushing that matches the pin diameter, thread the pin back through the stop and into the hinge, then set the opening angle and tighten. The door stays hung while you do it. For a landlord or a property manager that matters twice over, since it goes on a door already in service and comes back off later without patching holes in the wall.
8) I need the door stop to match the hinges and levers already in my building. What finishes does the Ives 69 come in?

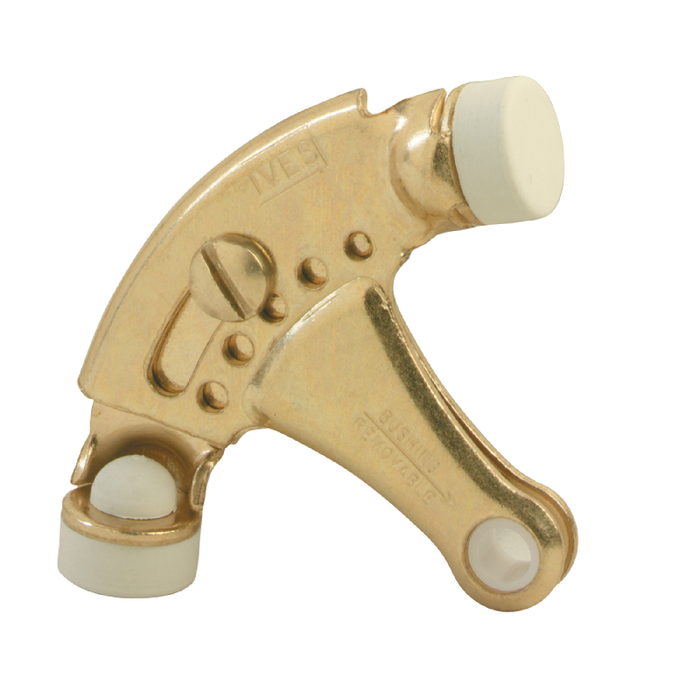

Eleven, ordered by finish code: 632 bright brass (69-F3), 638 blackened brass (69-F5), 639 satin bronze (69-F10), 640 satin bronze oil-rubbed (69-F10B), 643E aged bronze (69F-716), 645 bright nickel (69-F14), 646 satin nickel (69-F15), 647 antique nickel (69-F15A), 651 bright chrome (69-F26), 652 satin chrome (69-F26D), and 631 matte black (69F-BLK). Those are standard BHMA finish codes, so if the hardware schedule on the rest of the building calls out 626 or 652 or 630 you can match the number straight across rather than eyeballing it.
9) Will a hinge pin stop hold my door open, or does it only stop it?
It only stops it. The Ives 69 limits how far the door swings, set anywhere from 70 to 100 degrees, and the slip-proof adjustment keeps that limit from drifting. It is not a hold-open, so the door still closes on its own or with a push. If what you actually want is the door parked open, Orca Hardware's HPDS, HPHD, and HPST hinge pin stops all carry a door holder function, and those are the ones to look at for a unit door you need to prop while moving furniture through it.
10) Does the Ives 69 meet ANSI/BHMA for door stops, and how much room does it take up at the hinge?
It meets ANSI/BHMA 156.16, the standard covering door stops and holders. Size is 1 x 9/16 x 3-1/4 inches, small enough that it lives on the hinge pin without anything projecting into the opening or onto the wall. One caution for an institutional spec: the 69 is designated residential, so if your hardware schedule calls out an auxiliary hardware grade for a commercial opening, read that callout against the residential designation before you commit the order.
11) How does the Emtek 2241 pivot stop compare with the Ives 69 hinge pin door stop?
The Ives 69 is a steel hinge pin stop with removable bushings for 1/4 inch to 5/16 inch hinge pins, a 70 to 100 degree adjustable opening limit, and an overall size of 1 inch by 9/16 inch by 3-1/4 inch. The Emtek 2241 is a brass pivot stop in Emtek's Hinges Pivot Stop series. Material is the first split - steel on the Ives 69, brass on the Emtek 2241 - and the second is the adjustable stop angle: on a door where the swing has to be capped at a specific point, the 69's 70 to 100 degree range is the spec that settles it.
12) My hinges are solid brass - do I need a brass stop like the Emtek 2241, or will the Ives 69 match?
The Ives 69 is steel, but it is finished in 11 architectural finishes, including 632 bright brass, 638 blackened brass, 639 satin bronze, 640 satin bronze oil-rubbed, and 643E aged bronze, so it matches brass hinges by finish rather than by base metal. The Emtek 2241 is a brass pivot stop in the Hinges Pivot Stop series if solid brass is the material called out on the spec, which happens on historic and high-end residential work. On a standard apartment or house door, matching the Ives 69 finish code to the hinge finish is the usual route, and the same code carries across the rest of an Ives trim package.
13) Will the Ives 69 door stop mark the door or the frame where it makes contact?
Contact is taken on white non-marring rubber tips, so the stop meets painted or finished surfaces on rubber rather than on steel. Worth knowing before you order: those tips are white on every finish, including 631 matte black and 643E aged bronze, so on a dark opening the metal matches your other hardware but the tips read light against it.
14) Is the Ives 69 hinge pin stop solid brass?
The 69 is steel. The brass and bronze options, 632 bright brass, 638 blackened brass, 639 satin bronze, are finishes over a steel body rather than solid brass stock. That is fine for the job it does, but if a spec or a designer calls for solid brass at the hinge, the Emtek 2241 Brass Hinges Pivot Stop is the brass hinge pin stop to look at instead.
15) I am cross-referencing hinge pin stops - what separates the Orca HPDS, HPHD, and HPST from the Ives 69?
The Ives 69 is Ives model 69, a residential steel hinge pin stop with removable 1/4 inch to 5/16 inch bushings and a 70 to 100 degree adjustment. On the Orca side the identity runs by series: the HPDS Hinge Pin Door Stop is the HPDS Series, the HPHD HD Hinge Pin Stop is the HPHD Series, and the HPST Series Hinge Pin Stop is listed as the HTSP Series, and all three carry a door holder function. One ordering note when you build the quote: the Ives finish rides inside the part number - 69-F26D for 652 satin chrome, 69F-BLK for 631 matte black - so the finish is not a separate line item.
