Ives 73 Zinc Hinge Pin Door Stop with Adjustable Opening Control

Ives 73 Zinc Hinge Pin Door Stop with Adjustable Opening Control

Economical Door Protection Solution for Narrow Trim Applications

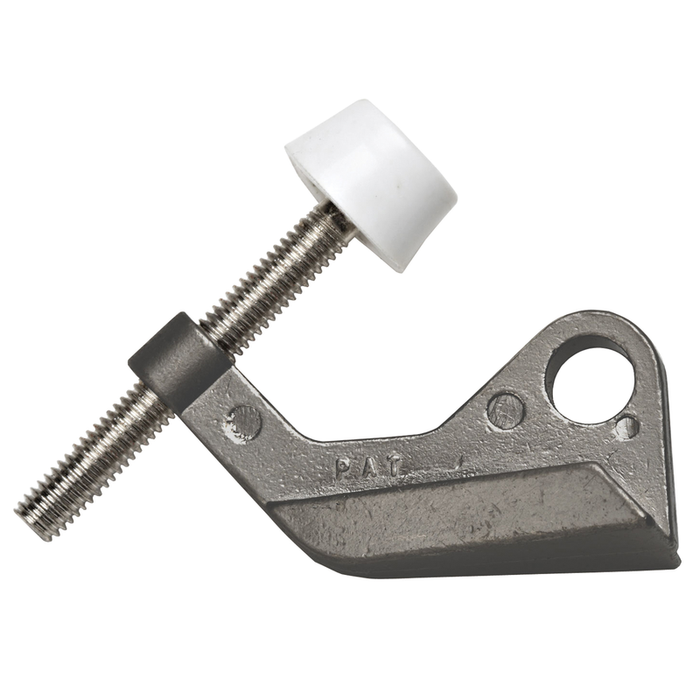

The Ives 73 Zinc Hinge Pin Door Stop provides an economical solution for controlling door opening on 4 1/2" hinges or above where standard door stops or overhead stops are not desirable. This zinc construction door stop offers 85° to 125° door opening adjustments and is specifically designed for narrow trim installations. The white rubber bumpers feature a shoulder on stud design that supports the rubber through the entire body for engineered cushioning, while removable bushings accommodate 1/4" to 5/16" diameter hinge pins.

Professional Features & Benefits

• Adjustable Opening Control: 85° to 125° door opening adjustments allow precise control of door swing to prevent wall damage.
• Hinge Pin Compatibility: Removable bushings accommodate 1/4" to 5/16" diameter hinge pins for versatile installation options.
• Engineered Cushioning System: White rubber bumpers with shoulder on stud design support rubber through entire body for superior impact absorption.
• Narrow Trim Design: Specifically designed for narrow trim installations where standard door stops are not suitable.
• Zinc Construction: Durable zinc material provides reliable performance for residential applications.
• Easy Installation: Simple hinge pin mounting eliminates need for floor or wall modifications.
• Non-Marring Protection: Rubber bumpers protect wall, molding, and door finishes from damage.
• ANSI/BHMA Compliance: Meets ANSI/BHMA 156.16 standards for door stops and holders.

Technical Specifications

• Commercial/Residential: Residential
• Department: Door Hardware
• Product Category: Door Trim and Accessories
• Product Group: Door Trim and Accessories
• Product Model: 73
• Product Subgroup: Door Stops, Holders, Silencers & Bumpers
• Product Substrate: Zinc
• Product Type: Door Stops - Hinge Pin
• Subcategory: Stops

Installation & Operation

1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

• Residential Door Protection
• Apartment and Condominium Units
• Single-Family Home Interior Doors
• Narrow Trim Door Applications
• Low-Frequency Use Doors
• Retrofit Door Stop Solutions
• Multi-Family Housing Projects

Why Choose Ives Quality?

Ives door stops deliver professional-grade reliability with zinc construction and engineered rubber cushioning systems that meet ANSI/BHMA 156.16 standards. The 73 series hinge pin stop provides an economical solution specifically designed for narrow trim installations where traditional stops are not suitable. Engineered for residential applications where dependable door protection and wall preservation are essential.
