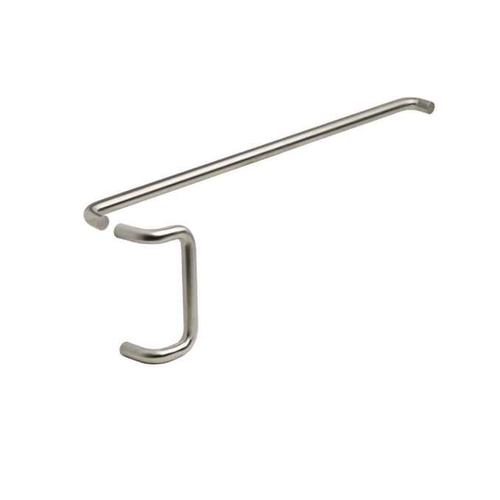

Ives 9190HD Heavy-Duty 90 Degree Offset Pull and Push Bar Combo

(No reviews yet) Write a Review

Model: 9190HD 28 8 US32D
$464.50
$277.34
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$464.50
$277.34
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Ives 9190HD Heavy-Duty 90 Degree Offset Pull and Push Bar Combo

Professional Solid Bar Stock Pull and Push Bar Solution

The Ives 9190HD combines a 90-degree offset pull with push bar functionality in a single heavy-duty unit. Available in standard lengths of 28" and 33", with custom sizing available in whole 1" increments from 25" to 45". Constructed from solid bar stock with heavy-duty machining and mounting hardware, this combo unit exceeds ANSI A156.06 standards for demanding commercial applications.

Professional Features & Benefits

  • Standard Length Options: Available in 28" and 33" standard lengths with custom sizing from 25" to 45" in 1" increments for versatile installation requirements.
  • Heavy-Duty Construction: Made from solid bar stock with heavy-duty machining and mounting hardware for exceptional durability in high-traffic applications.
  • 90-Degree Offset Design: Solid offset configuration provides ergonomic operation and enhanced door clearance for comfortable use.
  • ANSI Compliance: Exceeds industry and ANSI A156.06 standards ensuring reliable performance and code compliance.
  • Premium Material Options: Available in brass and stainless steel substrates including 316 Series stainless steel for superior corrosion resistance.
  • Versatile Mounting Systems: Compatible with multiple mounting schemes including standard thru-bolt, concealed mounts, back-to-back configurations, and security options.
  • Anti-Microbial Finish Options: BHMA standard finishes available including antimicrobial treatments for enhanced hygiene in healthcare and food service applications.
  • ADA Compliance Ready: Part of Ives line that includes ADA-compliant pulls with 2-1/2" or greater door-to-pull clearance when specified.

Technical Specifications

  • ANSI/BHMA: ANSI A156.06
  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Duty Level: Heavy Duty
  • Hang Type: Offset Hung
  • Product Category: Door Trim and Accessories
  • Product Group: Door Trim and Accessories
  • Product Model: 9190HD
  • Product Subgroup: Door Pulls, Push and Pull Plates
  • Product Substrate: Brass, Stainless Steel
  • Product Type: Push and Pull Bars
  • Subcategory: Pulls and Push Plates

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and mounting location clearances for the selected length.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door surfaces, ensuring proper center-to-center spacing for the selected pull length.
  3. Prepare door by drilling required holes and routing as specified in manufacturer instructions for the selected mounting hardware configuration.
  4. Install all mounting hardware and secure the pull/push bar combo to door per manufacturer torque specifications using the heavy-duty mounting hardware provided.
  5. Adjust operational components for proper alignment and smooth operation throughout the full range of motion for both pull and push functions.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Ives Quality?

Ives 9190HD pull and push bar combos deliver professional-grade reliability with solid bar stock construction and heavy-duty machining that exceeds ANSI A156.06 standards. Available in premium brass and stainless steel substrates including 316 Series stainless steel for demanding applications. Engineered for high-traffic commercial environments where dependable performance and durability are essential.

Manufacturer Resources

Ives Full Line Catalog

Product Specs

Subcategory:
Pulls and Push Plates
Product Group:
Door Trim and Accessories
Duty Level:
Heavy Duty
Product Subgroup:
Door Pulls, Push and Pull Plates
Product Type:
Push and Pull Bars
ANSI/BHMA:
ANSI A156.06
Commercial/Residential:
Commercial
Hang Type:
Offset Hung
Product Model:
9190HD
Product Category:
Door Trim and Accessories
Product Substrate:
Brass, Stainless Steel
Department:
Door Hardware

Ives 9190HD 28 8 US32D – Frequently Asked Questions

1) Does the Ives 9190HD cover both sides of the door, or do I need to order a separate push plate?
One order number covers both sides. The 9190HD puts a 90 degree offset pull and a push bar together in a single heavy-duty unit, so the pull side and the push side of one door are handled by the same assembly. What you still have to pick is the bar length, the center-to-center, and the finish. If the opening only needs something to push on and nothing on the pull side, the Rockwood Series 47 1 inch push bar is the single-function alternative.
2) Will the Ives 9190HD line up with the pull holes already drilled in my door?
That comes down to center-to-center, not overall length. The 9190HD is ordered with 8, 10, 12, or 18 inch center-to-center spacing, so measure the existing prep from the middle of one hole to the middle of the other and order the matching figure. If your prep measures something other than those four, the door has to be re-prepped for the new pattern. Length (28 or 33 inches, or a custom size) is a separate choice from the center-to-center, so confirm both numbers before the order goes in.
3) What is the difference between the Ives 9190HD and the Rockwood Series 47 push bar?
They cover different amounts of the opening. The Ives 9190HD is a combination unit: a 90 degree offset pull worked together with push bar functionality in a single solid bar stock assembly, ordered in 28 inch and 33 inch standard lengths with custom sizing in whole 1 inch increments from 25 inch to 45 inch. The Rockwood Series 47 is a 1 inch push bar from the 47 Series. Order the Series 47 when the opening needs a bar on the push face and the pull face is already handled by other hardware. Order the 9190HD when one part number needs to cover both the pull and the push side of the same door.
4) The drawing calls for a 6 inch center-to-center pull. Does the Ives 9190HD come that way?
The Ives 9190HD is ordered in 8 inch, 10 inch, 12 inch, and 18 inch center-to-center. For a 6 inch center-to-center pull, the Trimco 1015 is a bar style pull plate with a 6 inch CTC pull, carried at a heavy duty level in the 1015 Series. Confirm which dimension the drawing is calling: if it is the overall bar length rather than the mounting centers, the 9190HD runs 28 inch and 33 inch standard with custom sizing from 25 inch to 45 inch and the 6 inch note is describing something else on the door.
5) What mounting hardware comes with the Ives 9190HD, and what do I have to specify when I order?
Heavy-duty mounting hardware ships with the unit, and the mounting scheme is a choice you make. Ives offers the 9190HD in standard thru-bolt, concealed mounting, back-to-back configurations, and security options. Thru-bolt is the usual answer on a hollow metal or wood door where you can get at both faces; concealed hides the fasteners on the finished side; security fasteners are the call for an exposed exterior or a corrections or transit opening. Pick the scheme against the door construction and the face you want clean, then use the Ives template to lay out the holes for the center-to-center you ordered.
6) Is the Ives 9190HD pull and push bar heavy enough for a main entrance in a school or hospital?
It is built for exactly that traffic. The 9190HD is solid bar stock, not tube, with heavy-duty machining, and Ives rates it Heavy Duty for commercial use. Ives states it exceeds ANSI A156.06, the architectural door trim standard. Solid bar resists the bending and loosening you get on an entrance that swings hundreds of times a day, which is where thinner pulls start to work in their holes.
7) Our spec calls for door trim meeting ANSI A156.06. Does the Ives 9190HD meet that?
ANSI A156.06 is the standard the 9190HD is built to, and Ives states the unit exceeds it. For a submittal you can carry the model as Ives 9190HD, the duty level as heavy duty commercial, the substrate as brass or stainless steel, and the finish as a BHMA code from the twelve offered. Length and center-to-center are specified separately on the same line.
8) Will an Ives 9190HD offset pull hold up on an exterior door near salt air or a pool deck?
Order it in stainless. The 9190HD is made in brass and stainless steel substrates, and Ives includes 316 series stainless for corrosion resistance, which is the grade you want in coastal, pool, or wash-down conditions. On the finish side that means 629 bright stainless or 630 satin stainless. Brass and the plated finishes such as 625 bright chrome will look right indoors but are not the choice for chloride exposure. Specify the security or thru-bolt mounting to suit the door as well, since exterior fasteners take the same weather.
9) What finishes does the Ives 9190HD push and pull bar come in, and can I match the levers on my other doors?
Twelve finishes, all called out by BHMA number, so they line up with the codes on the rest of your hardware schedule: 605 bright brass, 606 satin brass, 612 satin bronze, 613 satin bronze oil-rubbed, 619 satin nickel, 625 bright chrome, 626 satin chrome, 629 bright stainless, 630 satin stainless, 631 matte black, 643E aged bronze, and 695 dark bronze. If your existing openings were specified as 626 or 630, ask your locksmith or check the hardware schedule for that number and order the same code. Matching by name alone is where finishes go wrong, since satin chrome and satin stainless read similarly on a door but are different codes.
10) How is the Ives 9190HD different from a pull plate like the Trimco 1015?
Two different things on the door face. The 9190HD is a bare solid bar assembly, an offset pull on one side with a push bar on the other, ordered at 8 to 18 inch center-to-center. The Trimco 1015 is a bar style heavy duty pull plate with a 6 inch center-to-center pull, so the pull is mounted on a plate that sits against the door and shields the face. Go with the plate where you want the door face protected from hands and carts, or where old prep needs covering. Go with the 9190HD where the pull has to be long enough to grab anywhere along the stile and you want a push bar on the opposite face from the same unit.
11) Is the Trimco 1015 a drop-in replacement for an Ives 9190HD?
They are not the same part, so the door prep will not carry over. The Trimco 1015 is a bar style pull plate with a 6 inch CTC pull, meaning the pull is carried on a plate that covers the door face behind it, and it addresses one face of the door. The Ives 9190HD is a solid bar stock 90 degree offset pull paired with push bar functionality across both faces, mounted with thru-bolt, concealed, back-to-back, or security mounting schemes rather than on a plate. Choose the 1015 when the face around the pull needs to be covered or protected; choose the 9190HD when a bar on both sides of the door is what the opening calls for.
12) We need ADA clearance behind the pull. What do I have to specify on an Ives offset pull?
Clearance has to be called out, not assumed. Ives builds ADA-compliant pulls with 2-1/2 inches or greater door-to-pull clearance when that is specified, so state the clearance requirement with the length, center-to-center, finish, and mounting scheme when the order goes in. On an opening under ADA scoping that dimension is what lets a closed fist or a gloved hand get behind the bar, so it belongs on the order line rather than being sorted out at install.
13) What does the 90 degree offset on the Ives 9190HD do compared to a straight pull?
The bar returns to the door at a right angle instead of running straight across, which stands the grip off the face and opens up the space behind it. Practical effect on the job: more room for a hand in a glove or a full grip when someone is hauling the door open, and more clearance from the door face for the fingers. It is a solid offset formed from the same bar stock, not a bent tube, so the returns take the same load as the grip.
14) For a high traffic entrance that has to hold up, how does the Ives 9190HD compare with the Trimco 1015 on duty level?
Both are heavy duty parts. The Trimco 1015 is a heavy duty bar style pull plate in the 1015 Series. The Ives 9190HD is a heavy duty commercial unit built from solid bar stock with heavy-duty machining and mounting hardware, exceeding ANSI A156.06, and it is offered in brass and stainless steel substrates including 316 Series stainless for corrosive environments. The deciding factor between them on a heavy traffic opening is usually form rather than duty: the 1015 puts the pull on a plate, the 9190HD puts an offset pull and a push bar on the two faces of the same door.
