Ives LG10 Lock Guard for Rose and Escutcheon Protection

Ives LG10 Lock Guard for Rose and Escutcheon Protection

Professional Latch Point Security Solution

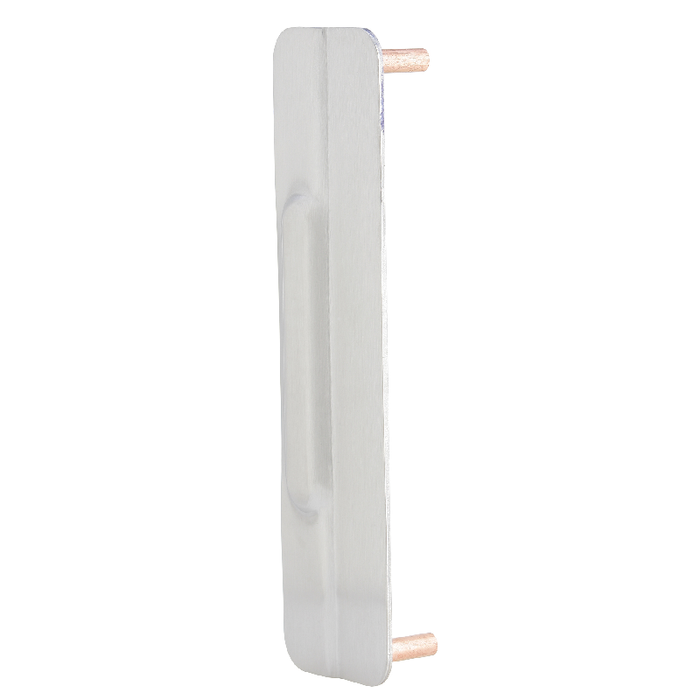

The Ives LG10 Lock Guard provides maximum security protection for commercial door applications, virtually eliminating the opening between door and frame at the latch point. Ideally suited for use with rose or escutcheon trim 2-3/4" wide or less, this non-handed unit is designed for type 86 mortise and type 161 cylindrical locks meeting ANSI 156.13 Series 1000 and ANSI 156.2 Series 4000 standards. The unit features 2 welded mounting studs with no exposed fasteners on the face for enhanced security and clean appearance.

Professional Features & Benefits

• Optimal Trim Compatibility: Designed for rose or escutcheon trim 2-3/4" wide or less for precise fit and maximum coverage.
• Universal Lock Compatibility: Works with type 86 mortise and type 161 cylindrical locks conforming to ANSI 156.13 Series 1000 and ANSI 156.2 Series 4000 standards.
• Maximum Security Design: Unique construction virtually eliminates the opening between door and frame at the latch point, preventing unauthorized access attempts.
• Non-Handed Installation: Universal design fits both left and right-hand door applications without modification.
• Secure Mounting System: Features 2 welded mounting studs with no exposed fasteners on the unit face for tamper resistance and professional appearance.
• Heavy-Duty Construction: Available in 12 gauge steel or 13 gauge stainless steel for exceptional durability in demanding commercial environments.
• Fire Rating Compliance: UL10C Listed with 3-hour fire rating for code compliance in fire-rated door assemblies.
• Professional Dimensions: Measures W: 2-1/2", H: 9-1/2" for comprehensive latch area protection.

Technical Specifications

• ANSI/BHMA: UL10C Listed (3 hour)
• Commercial/Residential: Commercial
• Department: Door Hardware
• Door Hand Direction: Non-Handed
• Package Includes: 2 welded mounting studs
• Product Category: Door Trim and Accessories
• Product Dimension: W: 2-1/2", H: 9-1/2"
• Product Group: Door Trim and Accessories
• Product Model: LG10
• Product Subgroup: Door Trim and Latch Protection
• Product Substrate: Steel or Stainless Steel
• Product Type: Latch Protectors
• Subcategory: Exterior Hardware

Installation & Operation

1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and compatibility with existing lock hardware.
2. Use manufacturer-provided templates to mark mounting hole locations accurately on door surface for the 2 welded mounting studs.
3. Prepare door by drilling required holes as specified in manufacturer instructions for secure stud mounting.
4. Install the lock guard using the welded mounting studs and secure per manufacturer torque specifications.
5. Verify proper alignment with existing rose or escutcheon trim to ensure complete latch point coverage.
6. Test door operation to verify proper function and clearance throughout the full range of motion. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

• Commercial Office Buildings
• Educational Facilities
• Healthcare Institutions
• Retail Establishments
• Industrial and Warehouse Facilities
• Multi-Tenant Residential Properties
• Government and Municipal Buildings

Why Choose Ives Quality?

Ives lock guard products deliver professional-grade security with heavy-duty steel or stainless steel construction and UL10C Listed 3-hour fire rating for demanding commercial applications. The unique design provides maximum security protection while maintaining compatibility with standard ANSI lock series. Engineered for exterior hardware applications where dependable latch point protection and weather resistance are essential.
