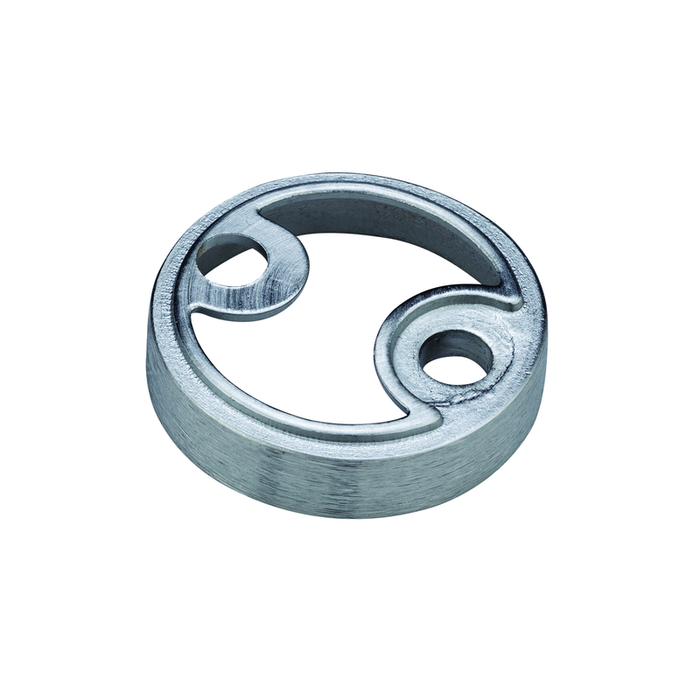

Ives R14 Dome Stop Riser - 5/16" Height Brass Adapter for FS13 Threshold Installation
Professional Door Stop Adapter for Threshold Applications
The Ives R14 Dome Stop Riser is a specialized brass adapter designed to convert the FS13 Dome Stop for threshold installation applications. This 5/16" height riser with 1-3/4" diameter provides the necessary elevation to adapt floor-mounted dome stops for use with threshold configurations. Constructed from durable brass material, this adapter ensures reliable performance in commercial door hardware applications while maintaining the protective functionality of the original dome stop design.
Professional Features & Benefits
- Precise Dimensions: 5/16" height with 1-3/4" diameter designed specifically for FS13 Dome Stop compatibility and threshold applications.
- Brass Construction: Durable brass material provides corrosion resistance and long-lasting performance in commercial environments.
- Threshold Adaptation: Converts standard FS13 Dome Stop for specialized threshold mounting configurations where standard floor installation is not suitable.
- Door Protection System: Maintains door stop functionality to prevent door, wall, and frame damage while stopping doors from opening too far.
- Non-Marring Design: Utilizes protective rubber components to safeguard wall, molding, and door finishes from damage.
- ANSI/BHMA Compliance: Meets ANSI/BHMA 156.16 standards for door stops and holders ensuring professional-grade performance.
- Commercial Grade: Engineered for commercial applications requiring reliable door control and protection solutions.
Technical Specifications
- Commercial/Residential: Commercial
- Department: Door Hardware
- Product Category: Door Trim and Accessories
- Product Dimension: H: 5/16", DI: 1-3/4"
- Product Group: Door Trim and Accessories
- Product Model: R14
- Product Subgroup: Door Stops, Holders, Silencers & Bumpers
- Product Substrate: Brass
- Product Type: Door Stops - Floor
- Subcategory: Stops
Installation & Operation
This adapter component is designed for use with compatible FS13 Dome Stop hardware. Refer to the parent device installation instructions and manufacturer documentation for proper integration. Ensure compatibility with existing hardware before installation.
Professional Applications
- Commercial Office Buildings
- Educational Facilities
- Healthcare Institutions
- Retail Establishments
- Industrial and Warehouse Facilities
- Multi-Tenant Residential Properties
- Government and Municipal Buildings
Why Choose Ives Quality?
Ives door hardware accessories deliver professional-grade reliability with brass construction and ANSI/BHMA 156.16 compliance for demanding commercial applications. The R14 riser provides precise dimensional compatibility for specialized threshold installations while maintaining the protective performance standards expected from Ives door stop systems. Engineered for commercial environments where dependable door protection and control solutions are essential.
Manufacturer Resources
Ives Full Line Catalog
Product Specs
- Product Group:
- Door Trim and Accessories
- Subcategory:
- Stops
- Product Subgroup:
- Door Stops, Holders, Silencers & Bumpers
- Product Type:
- Door Stops - Floor
- Commercial/Residential:
- Commercial
- Product Model:
- R14
- Product Dimension:
- H: 5/16", DI: 1-3/4"
- Product Category:
- Door Trim and Accessories
- Product Substrate:
- Brass
- Department:
- Door Hardware
Ives IVE-R14-26D – Frequently Asked Questions
1) What does the Ives R14 riser actually do, and do I need one with an FS13 dome stop?
The R14 is a brass riser, not a stop on its own. It sits under an Ives FS13 dome stop and lifts it 5/16 inch so the stop can be mounted on a threshold instead of directly on the floor. If you're mounting an FS13 flat to a finished floor, you don't need it. If the stop lands on a threshold and the dome needs to clear it, that 5/16 inch of elevation is what the R14 provides. Order it in addition to the stop, not instead of it.
2) Will the Ives R14 riser fit under a dome stop other than the FS13?
The R14 is dimensioned for the Ives FS13 dome stop, at 1-3/4 inch diameter and 5/16 inch high. Match that 1-3/4 inch footprint to the base of whatever stop you're raising before you commit to it. On another manufacturer's dome, like the Delaney Dome Door Stop or the Orca 23LP low-rise dome stop, the base diameter and the fastener location are what decide it, and Ives publishes the R14 as an FS13 part.
3) Is 5/16 inch enough rise to clear my threshold?
The R14 gives one fixed lift of 5/16 inch, which handles a low-profile saddle or a shallow threshold ramp. It won't raise a dome stop over a tall panic threshold. Measure from the mounting surface up to the point the door bottom or sweep needs to clear before you order, because there is no taller version of this riser to fall back on. Where the geometry doesn't work, a wall-mounted or gooseneck floor stop such as the Orca 22HD gooseneck floor stop takes the strike off the floor entirely.
4) Is there a dome floor stop that already sits high enough without adding a riser under it?
The Ives R14 is a brass riser, 5/16 inch high and 1-3/4 inch in diameter, that lifts an FS13 dome stop for threshold use rather than acting as a stop on its own. If you want a one-piece dome stop instead of a stop plus an adapter, the Orca Hardware 23LP Series is a dome floor stop with a gray tip, and the Delaney 40260X is a dome stop as well. Both mount as a complete stop, so the strike height is whatever the stop itself gives you rather than something you set with a riser.
5) Can a universal floor bumper be used in place of an Ives R14?
No, they solve different problems. The R14 is an adapter that raises an FS13 dome stop for threshold installation; it is not a stop by itself. The Deltana universal floor bumpers are complete stops in solid brass: the UFB4505 at 1-1/2 inch round, the UFBP4505 at 1-5/8 inch round with a pattern cap, the UFBS138 at 1-3/8 inch square, and the UFBD3505 at 3-1/2 inch decorative round. Order one of those if you need the stop itself, and the R14 only if an FS13 is going onto a threshold.
6) What should I use if the door needs to be held open, not just stopped?
The Ives R14 riser supports a dome stop, which stops the door and protects the wall and frame but does not hold the door open. For hold-open, the Orca Hardware 22HD Series is a goose neck floor stop with a black tip listed as a door holder for 1-3/8 inch or 1-3/4 inch doors, and the SOSS MDH is a heavy duty magnetic door holder and stop measuring 3-5/16 inch by 1-3/4 inch. Those are different devices from a dome stop and mount on their own, so no riser is involved.
7) What finishes does the Ives R14 dome stop riser come in?
Six, and they're the standard Ives architectural finishes so the riser disappears under the stop rather than sitting under it as a mismatched ring: 605 bright brass, 606 satin brass, 612 satin bronze, 613 satin bronze oil-rubbed, 625 bright chrome, and 626 satin chrome. Order the riser in the same finish code as the FS13 it goes under, since the edge of the riser stays visible above the threshold.
8) How do I order the right Ives R14 riser, and what's the part number?
Model R14, with the finish suffix on the end. Satin chrome is R14-26D, bright chrome R14-26, bright brass R14-US3, satin brass R14-US4, satin bronze R14-US10, and oil-rubbed satin bronze R14-US10B. The riser is a single 5/16 inch height, so finish is the only choice you make on the order form.
9) Does the Ives R14 meet ANSI/BHMA standards for door stops?
The R14 riser is stated as meeting ANSI/BHMA 156.16 for door stops and holders, which is the auxiliary hardware standard institutional specs usually call out for stops. If you're writing a submittal for a school or hospital, that's the reference to cite alongside the FS13 dome stop it mounts under.
10) I'm replacing floor stops across a building. Can I standardize on the R14 riser everywhere?
Only at the openings that actually have a threshold. The R14 exists to solve one condition, an FS13 dome stop that has to sit on a threshold rather than flat floor, so buying it for every door means paying for elevation you don't need at most of them. Order FS13 stops for the plain floor openings and add R14 risers only for the threshold ones, keeping the finish code consistent across both so the fleet matches.
11) Is a dome stop with a riser the right choice, or should I use a floor bumper or gooseneck instead?
A dome stop plus riser is low-profile: it stops the door close to the floor and stays out of the walking path, which is why it's used at thresholds where a tall stop would be a trip hazard. A gooseneck like the Delaney Gooseneck Floor Door Stop or the Emtek 2253 goose style stop reaches higher up the door and is better when the door needs to be caught well above the floor. A simple floor bumper such as the Deltana UFB4505 at 1-1/2 inch or the Emtek 2254 at 1-3/8 by 1-1/4 inch is a plain cushion with no riser option, so it can't be adapted to a threshold the way the FS13 and R14 can.
12) Will the R14 hold my door open, or does it only stop it?
Stopping only. The R14 raises an FS13 dome stop, and a dome stop arrests the door swing to protect the wall and the door edge, it doesn't hold the leaf open. For hold-open you need a different device: the Orca 22HD is catalogued as a door holder, and the SOSS MDH is a magnetic door holder and stop at 3-5/16 by 1-3/4 inches, heavy duty.
13) The door swings too far and I want the stop farther off the floor - is a taller stop better than an R14 riser?
The R14 adds a fixed 5/16 inch of brass height under an FS13, so it changes the mounting elevation for a threshold, not the reach of the stop. If the issue is that the door needs catching higher or farther out, a goose neck style reaches up off the floor instead: the Emtek 2253 Goose Style Door Stop and the Delaney 40118X Gooseneck Floor Door Stop are both gooseneck floor stops. A low-profile bumper such as the Emtek 2254 at 1-3/8 inch by 1-1/4 inch stays down at floor level.
14) I want a dome-shaped stop in brass to match the R14 finishes - what are the options?
The Ives R14 riser is brass and comes in 605 bright brass, 606 satin brass, 612 satin bronze, 613 satin bronze oil-rubbed, 625 bright chrome and 626 satin chrome, and it carries an FS13 dome stop. If you want the dome profile as a standalone stop, the Emtek 2251 is a half dome door stop and the Orca 23LP Series is a dome floor stop. For a rounded solid brass floor bumper in a different profile, the Emtek 2257 is a 1-1/2 inch cylindrical floor bumper and the Deltana UFB4505 is a 1-1/2 inch round solid brass bumper.
15) Is the Ives R14 riser rated for commercial door traffic?
Yes, it's specified as a commercial component, and it's solid brass rather than a plated pot metal casting, so it holds up in an entry threshold where it gets kicked, mopped, and rolled over by carts. That's the reason it shows up in office, school, healthcare, and multi-tenant entrances rather than residential work.
