Kaba Ilco Dummy Mortise Cylinders

(2 reviews) Write a Review

Model: 7120-DC-26D
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$11.65
Adding to cart… The item has been added
Free Shipping on orders over $99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks

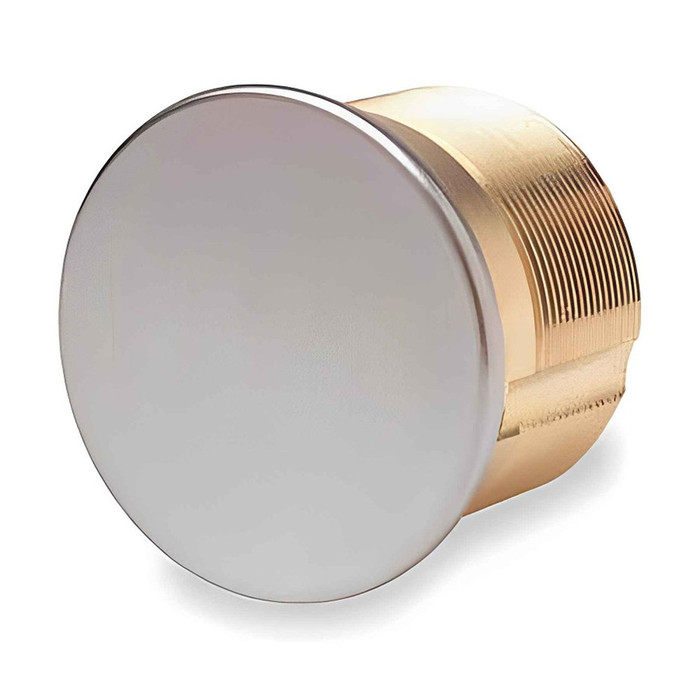

Kaba Ilco Dummy Mortise Cylinders

The Ilco Brass Mortise Cylinder line is a broad selection that allows the flexibility to cover numerous applications.



Finishes:

  • Bright Brass
  • Satin Brass
  • Antique Brass
  • Satin Bronze
  • Oil Rubbed Bronze
  • Satin Nickel
  • Bright Chrome
  • Satin Chrome
  • Black Aluminum
  • Bright Stainless Steel
  • Satin Stainless Steel



Product Downloads

Manufacturer Resources

Product Specs

Product Group:
Parts and Accessories
Product Subgroup:
Cylinders
Product Type:
Cylinders
Subcategory:
Cylinders
Commercial/Residential:
Commercial
Keyed Function:
Non-Keyed
Lock Type:
Mortise
Keyed:
No
Lock Function:
Dummy
Parts and Accessories Type:
Replacement Parts
Product Attribute:
Parts and Accessories
Product Function:
Dummy
Product Category:
Parts and Accessories

Kaba Ilco 7120-DC-26D – Frequently Asked Questions

1) What is a dummy mortise cylinder and how is it used?
A dummy mortise cylinder is a non-functional cylinder that provides the appearance of a working lock without accepting keys. Used on inactive doors, push/pull doors, or as placeholders during construction. Maintains consistent visual appearance across multiple door openings.
2) Are these cylinders compatible with standard mortise locksets?
Yes, Kaba Ilco dummy cylinders fit standard mortise lock housings with 1-1/8" diameter cylinder holes. Compatible with most commercial mortise locksets including Corbin Russwin, ASSA ABLOY, and Yale brands. Always verify cylinder threading and dimensions.
3) Do dummy cylinders come in different finishes?
Available in standard commercial finishes including satin chrome, polished brass, satin brass, and bronze. Choose finish to match existing hardware on project. Consult product specifications for available finish options on specific models.
4) How do you install a dummy mortise cylinder?
Remove existing cylinder or install in prepared mortise housing. Insert dummy cylinder through door thickness. Thread tailpiece cam or retainer to secure cylinder in place. No wiring or key cutting required. Installation takes minutes with basic tools.
5) Can dummy cylinders be keyed later if needed?
No, dummy cylinders have no internal pin tumbler mechanism and cannot be converted to functional cylinders. If future keying is possible, install a working cylinder initially. Changing from dummy to functional requires complete cylinder replacement.
6) What door thicknesses do these cylinders accommodate?
Standard dummy cylinders fit door thicknesses from 1-3/4" to 2-1/4". Extended cylinders available for thicker doors up to 3". Verify door thickness before ordering to ensure proper fit and appearance.
7) Are dummy cylinders required by fire codes?
Some jurisdictions require dummy cylinders on fire doors to maintain door integrity and prevent unauthorized access attempts. Check local fire codes and AHJ requirements. Dummy cylinders help maintain consistent security appearance across door systems.
8) Do dummy cylinders require any maintenance?
Minimal maintenance required. Periodically check mounting security and clean exterior finish. No lubrication or internal adjustments needed since there are no moving parts. Replace if cylinder becomes loose or damaged.
9) Can dummy cylinders be used on exterior doors?
Yes, but only on doors that do not require security control. Common on push/pull entrance doors with other locking mechanisms or panic hardware. Not suitable as primary security on doors requiring access control.
10) What's the difference between dummy and blank cylinders?
Dummy cylinders have no internal mechanism and cannot accept keys. Blank cylinders have pin chambers but no cuts, requiring professional preparation. Construction cylinders are temporary working cylinders. Choose based on immediate and future security needs.
11) Are replacement parts available for dummy cylinders?
Limited parts available since dummy cylinders are simple devices. Replacement tailpieces, cams, and retainers typically available. Face caps and cylinder bodies usually require complete unit replacement if damaged.
12) How do you specify dummy cylinders for a project?
Specify finish, door thickness, and threading type. Include manufacturer part numbers in specifications. Coordinate with lockset schedule to ensure consistent appearance. Consider future needs before specifying dummy versus functional cylinders.
