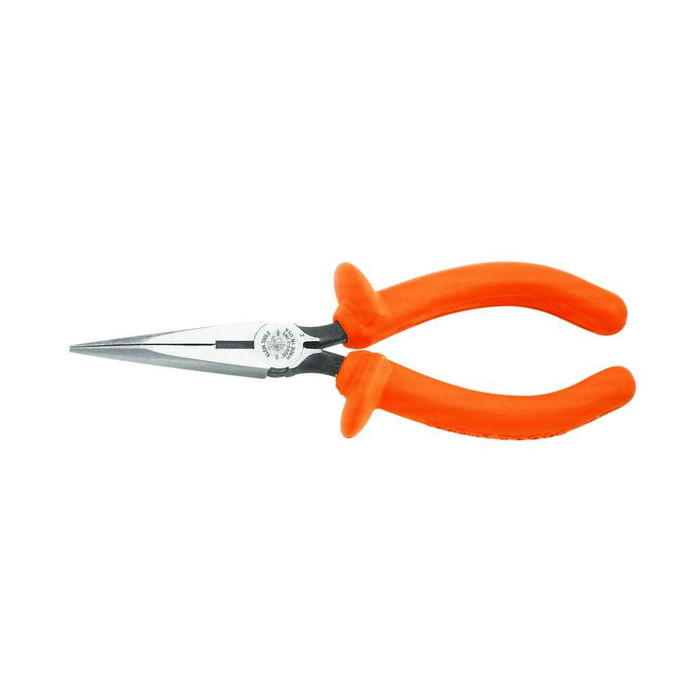

Long Nose Pliers, Insulated, 6-Inch
D203-6-INS - spec sheet
Features
- Thick, exceptionally tough, high-dielectric white inner coating is bonded to the tool
- Integral guards help prevent hand contact with conductive parts
- Hot-riveted joint ensures smooth action and no handle wobble
- Slim head design for working in confined areas
- Forged in the USA with custom, US-made tool steel for maximum durability
- Side-cutting knives at the hinge
- Flame Retardant and Impact Resistant Handle
- Curved handles provide greater tool control
- Induction hardened cutting knives for long life
- Flame retardant, impact-resistant, bright orange outer coating with two layers of insulation provide protection against electric shock
- Pliers are individually tested to exceed the IEC 60900 and ASTM F1505 standards, for insulated tools, and clearly marked with the official 1000-volt rating symbol
- Knurled jaws for sure wrapping and looping
Warnings
- Wear approved eye protection.
- Always inspect your tools before use. Destroy tool if insulation becomes damaged in any way.
- Do NOT touch uninsulated portion of the tool or any conductive object when either might contact an energized source.
- Because moisture, films, or other surface contaminants are conductive, Klein insulated tools must be kept clean, dry, and free of any surface contaminants.
- Only use tools that are marked with the official international 1000-volt rating symbol shown above, if there is any chance that the tools will make contact with an energized source.
- Whenever possible, always de-energize lines and equipment prior to working on or around them. Klein insulated tools are designed only to reduce the chance of injury where the tool may make contact with an energized source.
D203-6-INS - spec sheet
Manufacturer Resources
Product Specs
- Department:
- Tools
- Product Type:
- Long Nose Pliers
- Handle Color:
- Orange
- Product Details:
- Long Nose Side Cutting Pliers
- Product Subgroup:
- Pliers & Cutters
- Handle Finish:
- 2-Layer Insulation
- Product Material:
- Induction Hardened Steel
- Joint Type:
- Hot-Riveted
- Cutting Knives:
- Standard
- Cut Style:
- Side-Cutting
- Insulated:
- Yes
- Standards:
- IEC 60900 and ASTM F1505
- Product Group:
- Hand Tools
- Country Of Origin:
- United States
Klein Tools D203-6-INS – Frequently Asked Questions
1) What sizes do Klein insulated long nose pliers come in, and which part number is which?
Three lengths are offered: 6-inch as D203-6-INS, 7-inch as D203-7-INS, and 8-inch as D203-8-INS. All three are the same tool otherwise, insulated, side-cutting, with the same handle construction. Electricians pulling and looping conductors in a device box usually take the 6-inch for the shorter reach and lighter feel; the 7 and 8-inch give more leverage and deeper reach into panels and gutters.
2) How should insulated pliers be stored and inspected on a job site?
Keep them clean and dry. Moisture, films, and surface contaminants are conductive, so Klein requires insulated tools be kept free of surface contamination. Inspect before every use, and if the insulation is cut, cracked, or compromised in any way, destroy the tool rather than keep it in the pouch. Eye protection is required when using them. For an MRO or facilities program, that inspection step is what keeps an insulated tool set compliant between formal retests.
3) What keeps the handles from wobbling on these pliers after heavy use?
The joint is hot-riveted, which Klein uses to give smooth action with no handle wobble over the life of the tool. The tools are forged in the USA from custom US-made tool steel, and the cutting knives are induction hardened. Handles are curved for control, and the outer coating is flame retardant and impact resistant.
