Kwikset 740PHL-S Perth Lever E...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$124.30
$84.78

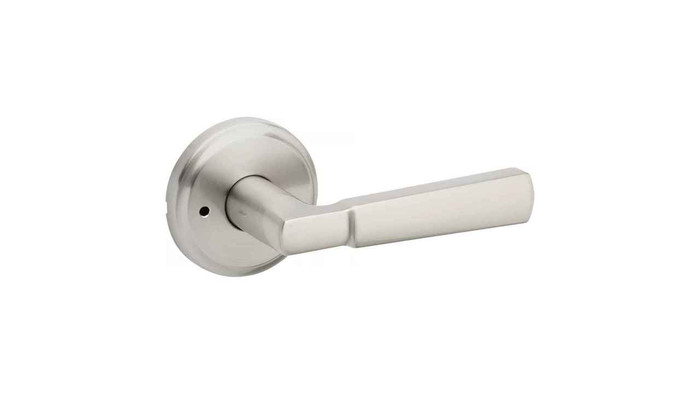

Kwikset 740PHL-S Perth Lever Entry Door Lock SmartKey with 6AL Latch and RCS Strike

Kwikset 740PHL-S Perth Lever Entry Door Lock SmartKey with 6AL Latch and RCS Strike

(No reviews yet) Write a Review

Model: 740PHL-15S
From the Perth Lever Collection
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$124.30
$84.78
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Kwikset 740PHL-S Perth Lever Entry Door Lock SmartKey with 6AL Latch and RCS Strike

PRODUCT FEATURES

  • Designer style and superior security with this Kwikset Signature Series™ product
  • For use on interior doors where a privacy locking function is required, such as a bedroom or bathroom
  • Latch has 3 interchangeable faceplates; round corner, square corner, and drive-in collar
  • ANSI/BHMA grade 2 certified
  • Latch has adjustable backset 2-3/8" to 2-3/4" to fit all standard door preparations
  • Locking mechanism functions by pressing the push button on the interior of the lock
  • Fully reversible lever, can be installed on both right handed and left handed doors
  • Easily installs in minutes with just a screwdriver
  • Lifetime mechanical and finish warranty
  • Microban Antimicrobial product protection keeps door hardware 99.9% cleaner than unprotected surfaces



Kwikset KWI-730PHL Perth Lever Privacy Door Lock with 6AL Latch and RCS Strike Installation Guide

Manufacturer Resources

Product Specs

Product Group:
Mechanical Locks
Product Subgroup:
Handlesets
Product Type:
Handlesets
Subcategory:
Handlesets
Keyed Function:
Single Cylinder
Commercial/Residential:
Residential
Handle Type:
Handleset
Features:
Microban
Keyed:
Yes
Collection:
Perth Lever
Product Function:
Entry
Latch Specification:
6AL
Keyway Profile:
Kwikset SmartKey
Door Strike:
Round Corner Full Lip Strike
Product Category:
Mechanical Locks
Department:
Door Hardware

Kwikset 740PHL-15S – Frequently Asked Questions

1) Will the Kwikset Perth lever fit a 2-3/8 inch backset door, or do I need 2-3/4?
Either one. The Perth lever ships with the 6AL latch, which adjusts between 2-3/8 inch and 2-3/4 inch backset, so it drops into both standard residential door preps without ordering a different latch.
2) Does the Kwikset Perth lever need to be ordered left hand or right hand?
No handing to specify. The Perth lever is fully reversible and installs on either a right hand or left hand door, so one part number covers every opening in a building.
3) Can I key the Kwikset Perth entry lever to match the other locks in my building?
It uses the Kwikset SmartKey keyway in a single cylinder keyed entry configuration, so it keys alike with other SmartKey Kwikset hardware and can be re-keyed by the owner to an existing SmartKey key rather than pulling the cylinder. It will not key into a Schlage or Kwikset KW1 conventional system.
4) What strike and faceplate come with the Kwikset Perth lever, and will they match my existing door prep?
A round corner full lip strike is included, and the latch carries three interchangeable faceplates: round corner, square corner, and a drive-in collar. That covers a mortised round corner prep, a square corner prep, or a bored hole with no faceplate mortise at all, so most existing door and jamb preps are handled without extra parts.
5) What is the closest single cylinder keyed entry handleset with a lever to the Kwikset 740PHL-S Perth?
The Schlage Residential F60 Addison single cylinder keyed entry handleset with Accent lever is the closest match in form: keyed entry function with a lever inside handle, Grade 2, fitting doors 1-3/8 inch to 1-3/4 inch. The Kwikset 740PHL-S Perth is also a single cylinder keyed entry handleset, but it uses the Kwikset SmartKey keyway, so a property already keyed to Kwikset SmartKey stays consistent with the Perth while the F60 would put a Schlage keyway on that opening.
6) Which handlesets look like the Kwikset Perth 740PHL-S but will not lock the door?
Several handlesets in the same visual family are dummy trim with no latch or cylinder: the Emtek 3002 Memphis, 3004 Hamilton, 3005 Melrose and 3006 Manhattan brass mortise entrance handlesets are all dummy function, as are the Weslock 2815 Hillcrest with New Heaven lever and the Weslock 6695 Belmont with Impresa knob. Those mount to an inactive leaf and pull only. The Kwikset 740PHL-S Perth is a keyed entry handleset with a 6AL latch and round corner full lip strike, so it is the one that actually secures the opening.
7) The Perth handleset will not work on my 2 inch thick door - what else can I use?
For thicker doors, the Weslock 2810 Hillcrest single cylinder handleset and the Deltana 810871 Montego handleset both cover 1-3/8 inch to 2 inch, and the Weslock 1411 Traditionale Colonial single cylinder handleset covers 1-3/4 inch to 2-1/4 inch. The Baldwin Estates 6542 Tremont single cylinder entry mortise trim is built specifically for 1-3/4 inch doors.
8) The opening needs to be keyed on both sides - is the Kwikset Perth 740PHL-S the right lock?
No. The 740PHL-S Perth is single cylinder, meaning key outside and thumbturn or lever release inside. For a double keyed opening, such as a door with glass beside the lock, the Baldwin Estates 6542 Tremont double cylinder entry mortise trim is the double cylinder option and is built for 1-3/4 inch doors. Check local egress code before specifying double cylinder on a dwelling exit.
9) I need a keyed deadbolt and a separate latch operated together - is the Perth handleset that?
The Kwikset 740PHL-S Perth is a keyed entry handleset with a 6AL latch and round corner full lip strike. If the opening calls for an interconnected lock where the lever retracts the latch and deadbolt together, the Schlage Residential JI18/19 interconnected passage lock with keyed deadbolt and Torino lever is the one built for that, Grade 2, for doors 1-3/8 inch to 1-3/4 inch.
10) Is the Kwikset Perth lever rated for commercial use or apartment turnover?
It is ANSI/BHMA Grade 2 certified but catalogued as residential hardware, so it suits apartments, single family and light multi-family doors. For a commercial opening with heavy public traffic, look at a Grade 1 cylindrical lockset instead.
11) What are the alternatives to a Kwikset SmartKey entry lever if I want a full handleset with a gripped exterior handle?
The Perth is a lever-only entry lockset. If you want an exterior thumb-latch grip, the Schlage Residential F60 Addison single cylinder keyed entry handleset with Accent lever is a Grade 2 option rated for 1-3/8 to 1-3/4 inch doors, and the Pamex FS7P31 Lexington single cylinder handleset in satin nickel covers the same 1-3/8 to 1-3/4 inch range. For thicker doors, the Weslock 1411 Traditionale Colonial single cylinder handleset covers 1-3/4 to 2-1/4 inch. None of those use the SmartKey keyway, so they cannot be keyed into an existing SmartKey system.
12) I need a keyed handleset with a knob instead of a lever - what are my options?
The Kwikset 740PHL-S Perth is a lever handleset with a fully reversible lever. For a knob interior on a keyed opening, the Weslock 2810 Hillcrest single cylinder handleset pairs with a Hudson knob and fits doors 1-3/8 inch to 2 inch, the Weslock 1411 Traditionale Colonial single cylinder handleset uses an Eleganti knob for doors 1-3/4 inch to 2-1/4 inch, and the Baldwin Wesley handleset is offered with either an Alcott or a Carnaby knob in entrance function.
13) Is there a handleset like the Kwikset Perth that does not need a key?
Yes. The Schlage Residential JE285 Barcelona style handleset with Seville lever is a non-keyed entry handleset, Grade 2, for doors 1-3/8 inch to 1-3/4 inch, and the Yale Real Living BYRD256 CBARX pairs a key free touchscreen deadbolt with a Ridgefield passage handleset for doors 1-3/4 inch to 2-1/4 inch. The Kwikset 740PHL-S Perth is keyed, single cylinder, on the SmartKey keyway.
14) I want an electronic version instead of the keyed Kwikset Perth handleset - what is available?
The Yale Real Living Assure line puts a touchscreen deadbolt on a Ridgefield handleset: the BYRD226NRRX is a standalone touchscreen deadbolt, the BYRD226CBARX adds Wi-Fi and Bluetooth, and both fit doors 1-3/4 inch to 2-1/4 inch. The Kwikset 740PHL-S Perth is a mechanical keyed handleset using a SmartKey cylinder, which is the choice when the opening has to work without power or a network.
15) What other keyed entry handlesets have an adjustable backset like the Kwikset Perth?
The Perth latch has an adjustable backset of 2-3/8 inch to 2-3/4 inch. Among comparable keyed handlesets, the Sure-Loc Aspen single cylinder keyed entry handleset and the Sure-Loc Madison keyed entry handleset are both built with adjustable backset, as are the Sure-Loc Alta tubular and Coral handlesets, so any of them will drop into an existing bore without confirming which backset was drilled.
16) Is there a Grade 2 alternative to the Kwikset Perth handleset for a rental property?
The Perth is ANSI/BHMA Grade 2 certified and rated residential. Other Grade 2 handlesets include the Master Lock HDLB Series single cylinder deadbolt handleset and the Schlage Residential F60 Addison with Accent lever, which fits doors 1-3/8 inch to 1-3/4 inch. All three suit residential entry duty; the difference for a portfolio is which keyway you standardize on, since the Perth is SmartKey.
17) What finishes does the Kwikset Perth entry lever come in?
Two: Satin Nickel and Matte Black. Both carry the same Microban antimicrobial surface treatment, which is useful on shared-entry or healthcare doors where touch surfaces get cleaned often.
18) What tools are needed to install the Kwikset Perth lever on an existing bored door?
A screwdriver. On a door already bored to standard prep, the lockset goes in with no drilling, since the latch adjusts to both 2-3/8 and 2-3/4 inch backsets and the faceplate options match round corner, square corner, or drive-in holes.
19) Is there a solid brass entry handleset alternative to the Kwikset Perth?
Deltana offers several solid brass entry handlesets: the 803871B Hanover, the 815871 St. Ann and the 825871 Kingston, all in entry function. The Kwikset 740PHL-S Perth is a Signature Series lever handleset with Microban antimicrobial protection on the finish, offered in Satin Nickel and Matte Black.
20) What is a satin nickel single cylinder handleset alternative to the Kwikset Perth in satin nickel?
The Pamex FS7P31 Lexington single cylinder handleset comes in a satin nickel finish and fits doors 1-3/8 inch to 1-3/4 inch in entry function. The Kwikset 740PHL-S Perth is also offered in Satin Nickel, alongside Matte Black, and is single cylinder on the SmartKey keyway.
