Kwikset Kwikset CP818PTHXTNL SMT Prescott Handleset and Tustin Lever with Smartkey KWI-CP818PTHTNL-S

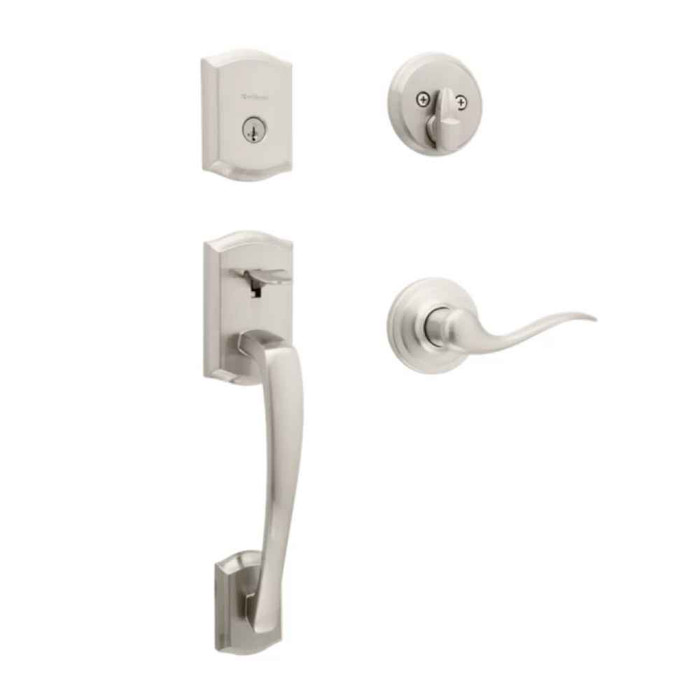

Kwikset CP818PTHXTNL SMT Prescott Handleset and Tustin Lever with Smartkey

(No reviews yet) Write a Review

Model: CP818PTHTNL-15S
From the Prescott Collection
$293.90
$194.40
Selected Finish is
Selected FREE KEYING Options is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$293.90
$194.40
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

KWIKSET CP818PTHXTNL SMT PRESCOTT HANDLSET AND TUSTIN LEVER WITH SMARTKEY OVERVIEW

Prescott Handleset and Tustin Lever With Smartkey, Exterior Only. Interior Pack required.

Looking for a door lock that combines style and security? Look no further than the Kwikset Signature Series™ product. This lock is perfect for exterior doors that require key entry and top-notch security. Featuring SmartKey Security™ technology, this lock protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds. Plus, it's compatible with Kwikset (KW1) keyway or (SC1) keyway options, making it a versatile choice for any home. This lock comes with 2 keys. The latch has a round corner faceplate and the handleset deadbolt is ANSI/BHMA Grade AAA Certified, meaning it has been rigorously tested for strength and durability. With an adjustable backset of 2-3/8" to 2-3/4", this lock fits all standard door preparations. The 1-inch deadbolt throw ensures maximum security for your home. And don't worry about installation - it's easy and can be done in just a few minutes with a screwdriver. You'll also receive a lifetime mechanical and finish warranty, so you can trust that this lock will last for years to come. And with Microban Antimicrobial product protection, your door hardware will stay 99.9% cleaner than unprotected surfaces, giving you peace of mind and a healthier home.

Buy this Kwikset Prescott Handleset and Tustin Lever Signature Series™ handleset today for style, security, and peace of mind for your home!

CP818PTHXTNL SMT PRESCOTT HANDLESET PRODUCT FEATURES

  • Designer style and superior security with this Kwikset Signature Series™ product
  • For use on exterior doors where keyed entry and security is needed
  • Featuring SmartKey Security™, which protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds.
  • SmartKey Security™ re-key technology is compatible with Kwikset (KW1) keyway or (SC1) keyway options - On applicable locks and deadbolts
  • Comes with 2 keys
  • Latch has round corner faceplate
  • Deadbolt Latch has 2 interchangeable faceplates - round corner and square corner
  • Certified Highest Residential Security, Durability and Finish - ANSI/BHMA Grade AAA
  • Latch has adjustable backset 2-3/8" to 2-3/4" to fit all standard door preparations
  • Includes round deadbolt strike
  • 1 inch deadbolt throw
  • Easily installs in minutes with just a screwdriver
  • Lifetime mechanical and finish warranty
  • Microban Antimicrobial product protection keeps door hardware 99.9% cleaner than unprotected surfaces

COLOR VARIATIONS

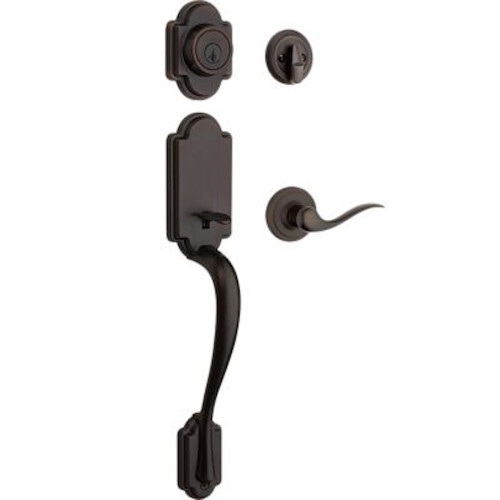

Kwikset CP818PTHTNL SMT Prescott Handle Only and Tustin Lever with Smartkey 11PS (Venetian Bronze)
Kwikset CP818PTHTNL SMT Prescott Handle Only and Tustin Lever with Smartkey 15S (Satin Nickel)

Note: Some concept images shown with item are not included.

PRESCOTT HANDLESET COLLECTION

Kwikset CP815PTHXTNL Prescott Handle Only with Tustin Lever (No Deadbolt)
Kwikset CP818PTHXTNL SMT Prescott Handleset and Tustin Lever with Smartkey

RESOURCES & DOWNLOADS

CP818PTHXTNL SMT Prescott Handleset Door Installation Sheet
CP818PTHXTNL SMT Prescott Handleset Door Installation Guide
Kwikset Handleset Drilling Template
Smartkey Instructions

Manufacturer Resources

Product Specs

Collection:
Prescott
Grade:
Grade 1
Warranty:
Limited Lifetime Finish, Limited Lifetime Mechanical
Product Group:
Mechanical Locks
Product Subgroup:
Handlesets
Product Type:
Handlesets
Subcategory:
Handlesets
Commercial/Residential:
Residential
Handle Type:
Handleset
UL Listing Type:
Optional 1/3 Hour UL fire rating for all functions except 802, 819 and 502
Lock Function:
Entry/Office
Cylinder and Keyways:
SmartKey Security
Keyed:
Yes
Keyed Function:
Single Cylinder
Features:
SmartKey
Backset (Distance):
Adjustable 2-3/8 or 2-3/4
Product Function:
Entrance
Door Hand Direction:
Reversible
Door Thickness Range:
1-3/4"
Product Details:
Complete Set
Door Strike:
2-1/4" Full Lip Round Corner Strike
Product Style:
Traditional
Product Category:
Mechanical Locks
Department:
Door Hardware

Kwikset CP818PTHTNL-15S – Frequently Asked Questions

1) Does the Kwikset CP818PTHXTNL Prescott handleset come with the inside trim, or do I need to order more?
Exterior only. The CP818PTHXTNL Prescott handleset with Tustin lever ships as the outside handle, deadbolt and exterior lever trim, and a separate interior pack is required to finish the door. Budget for that second line item on every opening you're doing, or you'll have a handle on the outside and nothing to grab on the inside.
2) What door thickness does the Kwikset Prescott CP818 handleset fit?
It's specified for 1-3/4 inch doors, which is the standard thickness for an exterior entry door. If you're working on a thinner 1-3/8 inch door or a thick 2 inch plus slab, look at something with a stated range instead, like the Pamex FS7P31 Lexington handleset at 1-3/8 to 1-3/4, or the Weslock 1411 Traditionale at 1-3/4 to 2-1/4.
3) Will the Prescott handleset fit my existing door prep, or do I have to re-drill?
The latch has an adjustable backset that sets to either 2-3/8 or 2-3/4 inches, which are the two backsets used on virtually all residential door prep, so it drops into an existing bored door either way. The deadbolt latch comes with two interchangeable faceplates, round corner and square corner, so it matches whatever mortise is already cut in the edge of the door. A 2-1/4 inch full lip round corner strike is included for the frame side.
4) Can I have several Kwikset Prescott handlesets keyed alike to one key?
Yes. Keying is selected at order time, keyed different or keyed alike, and there's an optional field for supplying an existing key code if you're matching hardware already on the building. Beyond that, SmartKey lets you re-key the cylinder yourself in seconds without pulling the lock, and it accepts either the Kwikset KW1 or Schlage SC1 keyway, so you can bring a mixed building onto one key without changing every cylinder. Two keys ship with the set.
5) How secure is the deadbolt on the Kwikset Prescott handleset?
The deadbolt throws a full 1 inch, which is what you want to reach past the jamb and into the framing on an exterior door, and the handleset deadbolt is ANSI/BHMA Grade AAA certified for residential security, durability and finish. SmartKey Security is the cylinder technology and it's built to resist picking and bumping. Among comparable residential handlesets, the Master Lock HDLB Series and the Schlage F60 Addison are listed at Grade 2.
6) What is the closest equivalent to the Kwikset CP818PTHXTNL Prescott handleset with Tustin lever from another brand?
The Schlage Residential F60 Addison single cylinder keyed entry handleset with Accent lever is the nearest match in form and function. Both are single cylinder keyed entry handlesets with a lever interior trim. The Kwikset Prescott carries a Grade 1 rating and SmartKey Security re-keyable cylinder, while the Schlage F60 Addison is a Grade 2 F Series set covering 1-3/8 inch to 1-3/4 inch doors. The Kwikset Prescott is built for 1-3/4 inch doors.
7) What handleset should I order for a thick or oversized door instead of the Kwikset Prescott?
The Kwikset CP818PTHXTNL Prescott set is built for 1-3/4 inch doors. For thicker slabs, the Weslock 1411 Traditionale Colonial handleset with Eleganti knob is a single cylinder keyed entry set covering 1-3/4 inch to 2-1/4 inch, and the Weslock 2810 Hillcrest single cylinder handleset with Hudson knob covers 1-3/8 inch to 2 inch. Both use a knob interior rather than the Tustin lever.
8) My door is prepped for a mortise lock, not a tubular handleset. What takes the place of the Kwikset Prescott?
The Kwikset CP818PTHXTNL Prescott is a tubular handleset with an adjustable 2-3/8 or 2-3/4 inch backset. For a mortise-prepped door, the Baldwin Estates 6542 Tremont single cylinder entry mortise trim fits 1-3/4 inch doors, and the Baldwin 6542 Tremont double cylinder entry mortise trim is the version keyed on both sides.
9) Do I need to specify handing for the Kwikset Prescott Tustin handleset?
No handing to specify. The Prescott handleset with Tustin lever is reversible, so one part number covers both left and right hand doors and the lever is field-adjusted during install. For a property manager stocking spares, that means one SKU per finish instead of two.
10) Is the Kwikset CP818 a single cylinder or double cylinder handleset?
Single cylinder: key on the outside, thumbturn on the inside. That's the normal choice for an entry door and the one that keeps you clear of code trouble on an egress door. If the door has glass within reach of the turn and you specifically want key-both-sides, you'd need a double cylinder unit such as the Baldwin Estates 6542 Tremont double cylinder entry mortise trim.
11) Is the Kwikset Prescott handleset OK for a commercial building, or is it residential only?
It's a residential product. Prescott is part of Kwikset's Signature Series for exterior house doors, and the certification behind it is highest residential security under ANSI/BHMA Grade AAA. For single family, townhome, and low rise multi-family entry doors it's the right class of hardware. A true commercial opening with heavy traffic or a code-specified grade should be specified with commercial lock hardware instead.
12) What's the difference between the Kwikset CP818PTHXTNL and the CP815PTHXTNL Prescott?
Deadbolt. The CP818PTHXTNL is the full handleset with the SmartKey deadbolt above the Tustin lever, for a keyed entry door. The CP815PTHXTNL is the Prescott handle only with Tustin lever and no deadbolt, which you'd use where a separate deadbolt is already installed or where no keyed security is needed.
13) What other brands of keyed entry handleset could I use instead of the Kwikset Prescott?
Several, depending on what matters. For a like-for-like lever handleset, the Schlage Residential F60 Addison with Accent lever is a Grade 2 single cylinder keyed entry for 1-3/8 to 1-3/4 inch doors. Sure-Loc's Aspen AN507 and Madison MA507 are keyed entry handlesets with adjustable backset like the Kwikset. If you'd rather have a knob than a lever inside, the Weslock 2810 Hillcrest with Hudson knob is a single cylinder handleset for 1-3/8 to 2 inch doors. And if the goal is keyless, the Yale Assure BYRD226NRRX standalone touchscreen deadbolt comes with the Ridgefield handleset for 1-3/4 to 2-1/4 inch doors.
14) I need a matching handleset on a door that doesn't get keyed. What do I use?
Not this one. The Prescott CP818 is a keyed entry/office function with a live single cylinder deadbolt. For a non-keyed opening you want either a dummy handleset or a passage set: the Emtek 3002 Memphis and 3004 Hamilton are brass mortise entrance handlesets in dummy function, the Weslock 2815 Hillcrest with New Heaven lever is a dummy for 1-3/8 to 2 inch doors, and the Schlage JE285 Barcelona with Seville lever is a non-keyed entry handleset.
15) Is the Emtek 3002 Memphis mortise entrance handleset a substitute for the Kwikset CP818PTHXTNL Prescott?
No. The Emtek 3002 Memphis brass mortise entrance handleset is a dummy function set, meaning it has no keyed operation. The same applies to the Emtek 3004 Hamilton, 3005 Melrose and 3006 Manhattan. The Kwikset CP818PTHXTNL Prescott is a keyed single cylinder entrance set with a SmartKey cylinder, so a dummy handleset will not secure the opening.
16) What handleset can I use instead of the Kwikset Prescott if I want keyless electronic entry?
The Yale Real Living BYRD226NRRX Assure Lock standalone touchscreen deadbolt with Ridgefield handleset covers 1-3/4 inch to 2-1/4 inch doors, and the BYRD226CBARX adds Wi-Fi and Bluetooth on the same door range. The BYRD256 CBARX is a key free touchscreen deadbolt with Ridgefield passage handleset and trim. The Kwikset CP818PTHXTNL Prescott is a mechanical single cylinder set keyed with a SmartKey cylinder.
17) Which keyed entry handlesets also offer an adjustable backset like the Kwikset Prescott?
The Kwikset CP818PTHXTNL Prescott latch adjusts between 2-3/8 and 2-3/4 inch backset. Among other handlesets, the Sure-Loc Aspen AN507 single cylinder keyed entry handleset and the Sure-Loc Madison MA507 keyed entry handleset both use an adjustable backset, as do the Sure-Loc Alta AT507 tubular handleset and the Sure-Loc Coral CR507.
18) Is the Master Lock HDLBA0615/4D handleset the same grade as the Kwikset CP818PTHXTNL Prescott?
No. The Master Lock HDLB Series HDLBA0615/4D is a Grade 2 single cylinder deadbolt handleset in entrance function. The Kwikset CP818PTHXTNL Prescott handleset is Grade 1 and uses a SmartKey Security cylinder that can be re-keyed by the owner.
19) Do I need special tools to install a Kwikset Prescott handleset?
A screwdriver is all it takes on a door that's already bored, and the install runs a few minutes. If you're starting from a blank slab, you'll need to bore the door first, and Kwikset publishes a handleset drilling template along with the installation sheet and guide for this set. Remember the interior pack is a separate order, so have it on site before you start.
20) Is the Schlage JI18/19 interconnected lock an alternative to the Kwikset Prescott handleset?
They solve different openings. The Schlage Residential JI18/19 is an interconnected passage lock with keyed deadbolt and Torino lever in satin stainless steel, Grade 2, for 1-3/8 inch to 1-3/4 inch doors, with a passage function lever. The Kwikset CP818PTHXTNL Prescott is a gripped handleset with a keyed single cylinder entry function on 1-3/4 inch doors.
