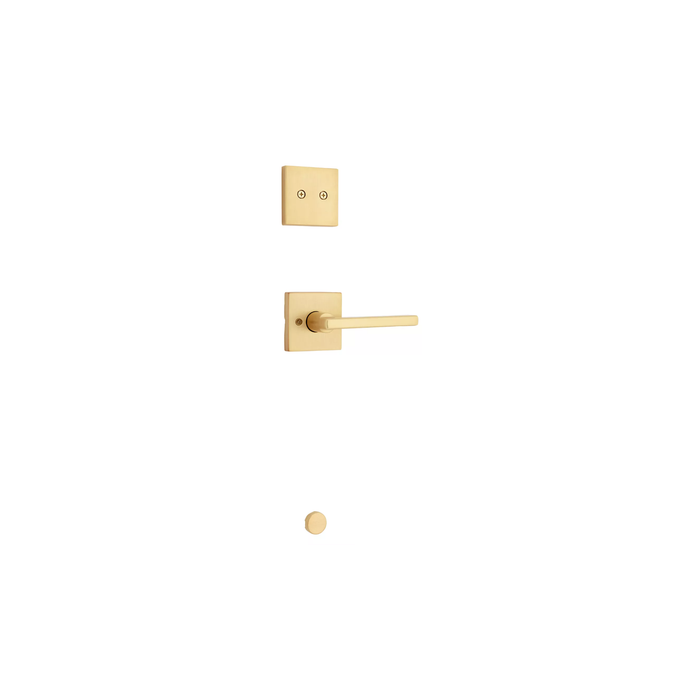

Kwikset KWI-973HFLSQT Dummy Interior Halifax Lever Trim with Square Rose

It's a dummy trim, so nothing moves a latch. The Halifax lever with square rose is a non-functioning pull that mounts to the inside face of the door as the interior half of a Kwikset handleset. There is no spindle, no latch and no cylinder in the pack. If you need a lever that retracts a latch on that opening, this is the wrong part.

Yes, the exterior half. The Halifax interior pack is sold on its own and the matching Kwikset exterior pack has to be ordered separately; it's built to install with Kwikset handlesets. Install itself needs nothing but a screwdriver.

It's a residential product, ANSI/BHMA Grade 2 certified, and it meets ADA/ANSI A117.1 requirements. For a commercial opening that needs heavier duty dummy trim, a Grade 1 heavy duty option like the BEST 9K Series 1DT single dummy is the commercial equivalent, and the BEST 7KC Series 1DT is the medium duty Grade 2 version of the same idea.

Not this one. A dummy trim is fixed and only dresses the inside of a handleset opening. For a door where the lever needs to work, you want a passage function leverset: the Bravura Tampa with square trim is a Grade 2 passage lever if you want to keep the square look, and the Accentra 5301LN Augusta or Hager 2510 are other Grade 2 passage levers.

Both carry the dummy function, but they are not ordered the same way. The Kwikset 973HFL Halifax is fully reversible and suits both right and left handed doors. The Baldwin Estate 5103 half dummy with the 5048 rose is handed at the part number: BAL-5103-LDM is the left hand half dummy and BAL-5103-RDM is the right hand. If you go the Baldwin route you have to confirm the swing before you order; with the Halifax you do not.

The Kwikset 973HFL Halifax is a non-functioning dummy lever trim in a residential ANSI/BHMA Grade 2 line, sold as an interior pack that pairs with a Kwikset handleset. For a commercial-duty single dummy, the BEST 9K Series 1DT is a Grade 1 heavy duty non-keyed single dummy trim cylindrical lever lock, and the Accentra 455LN Augusta is a Grade 1 single dummy cylindrical lever lock in the 5400 Series. Both are standalone single dummy trims rather than an interior half of a handleset pack.

The Kwikset 973HFL Halifax is a non-functioning lever, so it does not retract a latch. For an opening that needs a working handle with no lock, a passage function lever is the right part: the Accentra 5301LN Augusta is a Grade 2 cylindrical lever lock with passage/closet function, the Hager 2510 is a Grade 2 passage cylindrical lever lock with the Withnell design and a 1-3/8 inch to 2 inch door thickness range, and the Falcon B101 is a Grade 2 medium duty cylindrical passage lever lock with a non-handed design.

Six: Venetian Bronze, Satin Nickel, Bright Chrome, Satin Chrome, Satin Brass and Matte Black. If you're matching a run of doors, pick the finish that matches the Kwikset exterior handleset pack you're pairing it with, since the two are bought separately.

You'd need two, and each still requires its own Kwikset exterior pack, because the Halifax pack is sold as the interior half only. If what you actually want is a matched pair of dummy levers with no handleset involved, the Emtek dummy leversets are sold as pairs, including the Arts and Crafts, Hammered and Cortina levers.

It meets ADA/ANSI A117.1 requirements, which is what the lever shape buys you over a knob: no tight grasping or wrist twisting to operate. Bear in mind it's a fixed pull, so the operating hardware on that opening is the exterior handleset, not this trim.

It fits Kwikset handlesets, so a Kwikset Signature Series 819 style handleset opening is what it's made for. The square rose is the trim shape, so check that against the round rose most older Kwikset interior trims use if you care about the screw pattern showing on refinished doors. Reversible either hand, and it goes on with a screwdriver.

The Kwikset 973HFL Halifax is an interior pack intended for installation with a Kwikset handleset, so it covers one side of one door. For a double door where both leaves need a fixed pull, Emtek sells dummy levers as a pair: the Arts & Crafts lever dummy pair and the Hammered lever dummy pair in the Arts & Crafts and Hammered series, and the Classic Brass Cortina lever dummy pair. Each of those ships two dummy levers on one part number.

The Kwikset 973HFL Halifax is a residential lever trim, so for a commercial opening the swap is a heavy duty passage lever. The Falcon K101 is a Grade 1 heavy duty passage cylindrical lock with non-handed levers, fire rated, with a 1-3/8 inch to 2-1/4 inch door thickness range. The Corbin Russwin CL3110 is a Grade 1 vandal resistant passage/closet cylindrical lever lock, fire rated, for 1-3/4 inch to 2 inch doors. The Design Hardware X75 is a Grade 1 passage lever lockset with a flat lever for 1-3/4 inch doors.

Both use square trim, but they do different jobs. The Kwikset 973HFL Halifax is a dummy lever trim with a square rose and a non-functioning lever, meant to pair with a Kwikset handleset exterior pack. The Bravura Tampa with square trim is a Grade 2 passage leverset in the Tampa series, so the lever turns and works a latch on its own. If you want the square look on a door that needs to latch, the Tampa is the working version; the Halifax is a fixed pull.

No. The Kwikset 973HFL Halifax carries the dummy function with a non-functioning lever, so there is nothing to convert. For a bed or bath door, order a privacy lever: the Baldwin Estate 5103 privacy lever with the 5048 rose keeps the same 5103 lever family as the Baldwin dummy and passage versions, and the Hager 2540 is a Grade 2 privacy cylindrical lock with the Withnell lever for 1-3/8 inch to 2 inch doors.

It is not the same part. The Accentra 4601LN is a Grade 2 passage cylindrical lever lock with Augusta trim in the 4600 Series, meaning it carries a latch and a full cylindrical chassis through the door. The Kwikset 973HFL Halifax is dummy trim with a non-functioning lever that installs with a screwdriver and no chassis. Swapping to the 4601LN means the door has to be bored for a cylindrical lock and prepped for a latch and strike.

The Kwikset 973HFL Halifax comes in Venetian Bronze, Satin Nickel, Bright Chrome, Satin Chrome, Satin Brass and Matte Black, but it is a dummy only, so a unit with closet, bedroom and entry doors needs other functions too. Baldwin covers those in one lever family: the Estate 5103 with the 5048 rose is offered as a passage lever, a privacy lever and a half dummy in left and right hand. Standardizing on one series keeps the lever and rose identical across every door in the unit.
