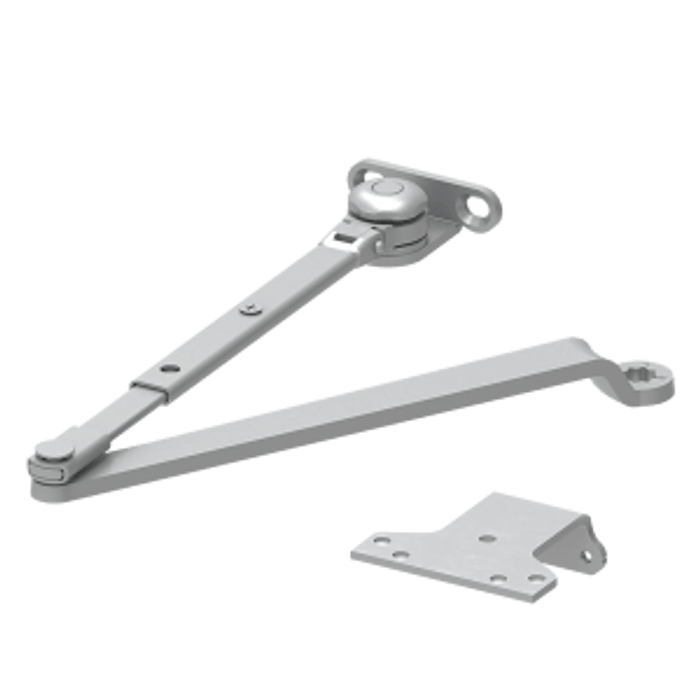

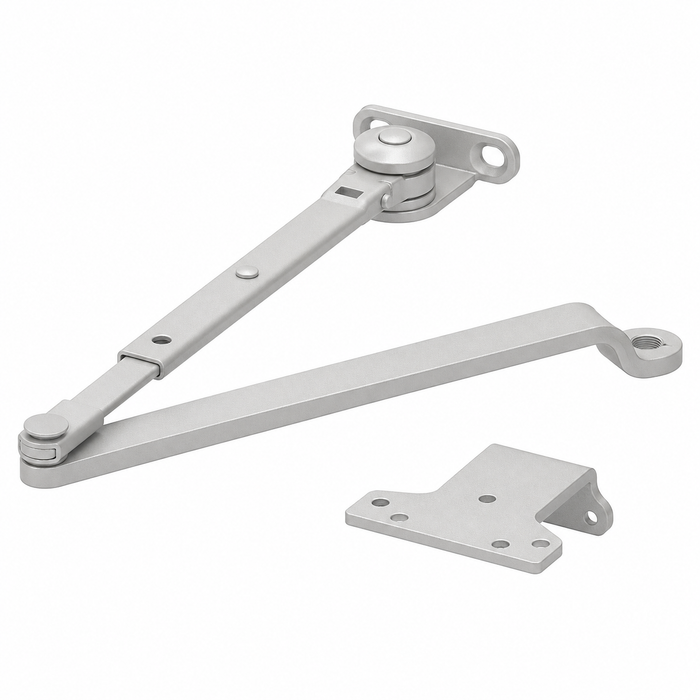

LCN 1260-3049/PA Hold Open Arm with 62PA Parallel Arm Bracket for Door Closers

LCN 1260-3049/PA Hold Open Arm with 62PA Parallel Arm Bracket for Door Closers

(No reviews yet) Write a Review

Model: 1260-3049/PA 689
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$200.81
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

LCN Hold Open Arm with 62PA Parallel Arm Bracket for Door Closers

Professional Door Closer Hold Open Solution

The LCN Hold Open Arm with 62PA Parallel Arm Bracket provides reliable hold-open functionality for commercial door closer applications. This professional-grade accessory integrates with compatible LCN door closers to maintain doors in the open position when needed, while allowing controlled closing when released. The 62PA parallel arm bracket ensures proper mounting and alignment for optimal performance in commercial environments.

Professional Features & Benefits

  • Hold Open Functionality: Maintains door in open position for improved traffic flow and accessibility in commercial applications.
  • Parallel Arm Design: 62PA bracket provides stable mounting configuration for consistent operation and alignment.
  • Professional Integration: Designed for compatibility with LCN door closer systems for seamless installation and operation.
  • Commercial Construction: Built to withstand frequent use in high-traffic commercial and institutional environments.
  • Controlled Release: Allows smooth transition from hold-open to normal closing cycle when activated.
  • Versatile Application: Suitable for various door types and commercial installation requirements.
  • Precision Engineering: LCN quality construction designed for demanding commercial applications where controlled door operation is essential.

Technical Specifications

  • Department: Door Hardware

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose LCN Quality?

LCN door closer accessories deliver professional-grade reliability with precision engineering designed for demanding commercial applications. This hold open arm system provides dependable performance where controlled door operation is essential for traffic flow and accessibility compliance in high-traffic environments.

Manufacturer Resources

LCN Full Line Catalog

Product Specs

Department:
Door Hardware

LCN 1260-3049/PA 689 – Frequently Asked Questions

1) What does the LCN 1260-3049/PA hold open arm assembly actually include?
It is an arm package for LCN door closers: the hold open arm itself plus the 62PA parallel arm bracket (shoe) that mounts it in a parallel arm configuration. It does not include a closer body. You are buying the arm and bracket to fit onto a compatible LCN closer, so the closer itself has to be ordered or already on the door.
2) What is the difference between a parallel arm hold open and a regular arm hold open on a door closer?
Parallel arm means the arm and shoe mount to the push side of the door with the bracket on the door face, so the arm runs flat back along the door rather than projecting out into the opening. That is what the 62PA bracket is for. A regular arm mounts on the pull side with the shoe on the frame and projects into the opening. Choose parallel arm when the closer body is on the push side of the door, when you want the hardware tucked against the door for appearance or to avoid snagging traffic, or when frame conditions leave no room for a pull-side shoe.
3) How does the hold open work on this LCN parallel arm, and how do you release the door?
It is a mechanical hold open built into the arm. You swing the door to the hold open point and the arm holds it there; releasing it is done by pulling the door past the hold open position, after which the closer takes over and closes the door under its normal control. There is no electrical release involved, so if you need a door that drops on a fire alarm signal you want an electromagnetic hold open closer instead, not a mechanical arm.
4) Can I put a mechanical hold open arm on a fire rated door?
No. Fire doors have to be self closing and self latching, so a mechanical hold open arm that props the door open is not acceptable on a labeled fire door opening. Use a fire rated door with an electromagnetic hold open or a magnetic door holder tied to the fire alarm system so the door releases on alarm. The LCN 1260-3049/PA arm is for non-rated openings where you simply want the door to stand open on demand.
5) I am replacing a broken arm on an existing LCN closer. Will this hold open arm work with my closer?
It is an LCN arm and 62PA bracket sized for LCN door closer bodies, so the closer has to be an LCN unit the 62PA shoe is listed for. Check the series number cast into your closer body first, then match the arm to that series. Swapping an arm between manufacturers does not work: the pinion spline and arm-to-shoe geometry are brand and series specific.
6) What finishes does the LCN hold open arm with 62PA bracket come in?
Six finishes: 689 aluminum, 690 statuary bronze, 691 light bronze, 693 gloss black, 695 dark bronze, and 696 brass. Painted closer finishes like 689 and 695 are the two you will most often be matching to an existing LCN closer on the opening, so pick the number already stamped on the closer body rather than eyeballing the color.
7) Do I need a separate blade stop spacer or drop plate with a parallel arm hold open bracket?
It depends on the frame, not the arm. The 62PA bracket mounts to the door face on the push side, and on a frame with a deep stop or on a door with insufficient top rail you may still need a blade stop spacer or a drop plate to get the closer body mounted flat. Those are separate LCN accessories ordered by closer series. The arm and bracket here cover the arm side of the installation only.
8) Is a hold open arm the right choice for an accessible entrance, or should I look at a power operator?
A hold open arm just parks the door open; it does nothing to reduce the opening force a user has to apply. If the requirement is push button or automatic operation for accessibility, you need a low energy power operator, not an arm. Where the goal is simply keeping a corridor, classroom, or stockroom door open during busy periods and letting it close normally the rest of the time, the hold open parallel arm does that job on any non-rated opening.
9) Where in the swing does a parallel arm hold open catch the door?
Hold open on a parallel arm assembly is set by where the bracket is positioned on the door face during installation, within the range the arm allows. Move the bracket and you shift the hold open point. In practice you want the door held clear of the traffic path but short of hitting an adjacent wall or the frame return, so dry fit the bracket and swing the door before you drill the final holes.
