LCN 2030-3034 Track Roller Ass...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$42.00
$30.44

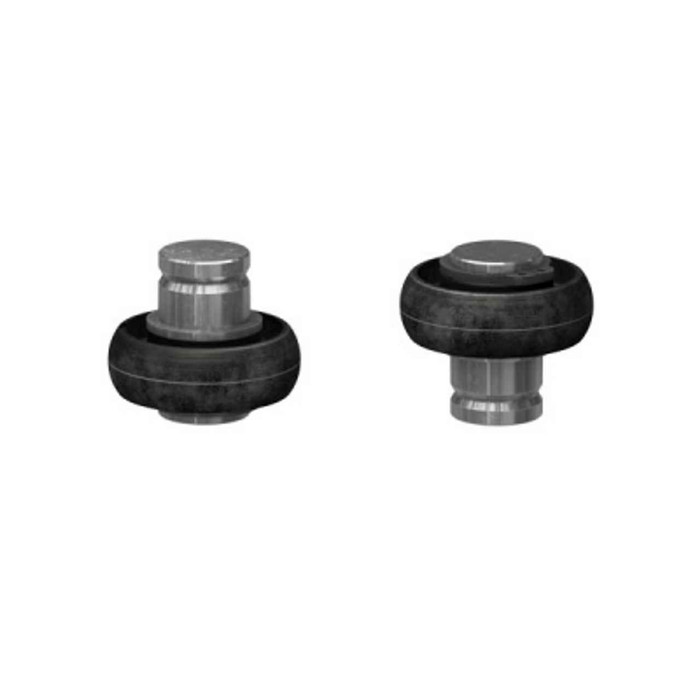

LCN 2030-3034 Track Roller Assembly — two rollers shown, front and side angle views

LCN 2030-3034 Track Roller Assembly

(No reviews yet) Write a Review

Model: LCN-2030-3034
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$42.00
$30.44
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

LCN 2030-3034 Track Roller Assembly

The LCN 2030-3034 Track Roller Assembly is a direct replacement component for LCN 2030 Series door closers. It features a quiet, low-friction roller with a shoulder dimension of 1/16" (2mm) for precise fit and proper alignment in high-traffic commercial entrances.

Features

  • Exact-Fit Dimensions: Shoulder dimension X = 1/16" (2mm) for precise alignment with LCN 2030 Series door closers.
  • Low-Friction Operation: Roller assembly minimizes noise and wear during door cycling.
  • Heavy-Duty Construction: Built for sustained performance in high-traffic commercial applications.
  • Direct Replacement: Engineered specifically for LCN 2030 Series door closers, no modification required.
  • ADA Compliant: Meets ADA requirements for door closer hardware.

Technical Specifications

  • Part Number: 2030-3034
  • Series: LCN 2030 Series
  • Shoulder Dimension (X): 1/16" (2mm)
  • Application: Commercial
  • Part Type: Replacement Part
  • ADA Compliant: Yes
  • Compatible With: LCN 2030 Series Door Closers

Typical Applications

  • Commercial office buildings
  • Educational facilities
  • Healthcare institutions
  • Government and municipal buildings
  • Multi-family and hospitality properties
  • Retail and industrial facilities

Manufacturer Resources

LCN Full Line Catalog

Product Specs

Series:
2030 Series
Product Type:
Parts and Accessories
Subcategory:
Closer Parts and Accessories
Product Group:
Door Closers
Product Subgroup:
Parts and Accessories
Commercial/Residential:
Commercial
Electronic:
No
ADA Compliant:
Yes
Parts and Accessories Type:
Replacement Parts
Product Attribute:
Parts and Accessories
Product Model:
2030-3034
Product Category:
Door Closers
Department:
Door Hardware

LCN LCN-2030-3034 – Frequently Asked Questions

1) What does the LCN 2030-3034 track roller assembly actually do on a 2030 Series closer?
The 2030-3034 is the track roller assembly that rides in the arm track of an LCN 2030 Series door closer. It's the wear part: as the door cycles, the roller travels the track and carries the arm load. When a 2030 starts dragging, chattering, or closing unevenly, the roller is the piece that gets replaced. It's a replacement part, not a complete closer or a complete arm.
2) What is the shoulder dimension on the LCN 2030-3034 track roller, and why does it matter?
Shoulder dimension X is 1/16 inch (2mm). That shoulder is what sets the roller's standoff in the track, so it holds the arm in alignment as the door swings. A roller with a different shoulder rides off-center, which is where the binding and the noise come from. If you are cross-checking a roller pulled off an old closer against this one, the 1/16 inch shoulder is the number to measure.
3) Does replacing the roller on an LCN 2030 affect ADA opening force compliance?
The 2030-3034 is an ADA compliant part, so putting the correct roller back in the track does not compromise the opening's ADA status. Worth knowing the other way round too: a worn or wrong-size roller that binds in the track raises the force needed to push the door, which is exactly what pushes an opening out of ADA opening-force range. Restoring the specified 1/16 inch shoulder roller is part of getting that force back down.
4) I manage a building with LCN 2030 closers on several doors. Can I stock one roller part number for all of them?
Yes, if those closers are all 2030 Series. The 2030-3034 is the roller assembly LCN specifies across that series, with a single 1/16 inch shoulder dimension, so one part number covers the fleet and you can carry a few on the shelf rather than sourcing per door. Doors running a different LCN closer series need their own roller.
5) How many rollers come with the LCN 2030-3034, and is the arm or track included?
The 2030-3034 is sold as the track roller assembly only. The closer arm, the track channel, and the closer body are separate parts and are not part of it. If the track itself is scored or the arm is bent, the roller alone will not fix the door.
6) Is the LCN 2030-3034 roller a commercial-duty part or is it fine for a light residential door?
It's a commercial part. LCN builds the 2030-3034 for high-traffic commercial entrances, and the 2030 Series closers it serves are commercial closers. Typical settings are office buildings, schools, healthcare, government and municipal buildings, multi-family and hospitality, retail and industrial. Nothing stops it working on a low-traffic door, but you would be buying it because the closer on that door is a 2030, not because of the traffic level.
7) Do I need power or wiring for the LCN 2030-3034 track roller?
No wiring involved. The 2030-3034 is a purely mechanical roller assembly with no electronic component, so there is nothing to power, connect, or program. It's a mechanical swap in the closer's arm track.
