LCN 4011 Surface-Mounted Heavy...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$662.00
$377.34
Brand:
LCN
Category:
Door Controls
Subcategory:
Surface Mounted Closers
Series:
4010 Series
Grade:
Grade 1
Model(s):
4011
ADA Compliant:
Yes
BAA Qualified:
Yes
Warranty:
30 Years
Mounting Type(s):
Pull Side
Mounting Detail:
Surface - Hinge (Pull Side)
Construction:
Cast Iron
Duty Level:
Heavy Duty
Finish Type:
Painted/Powder Coat
Handed:
Yes
Default Cylinder:
Cast Iron Cylinder Assembly (CYL)
Default Arm:
Regular Arm
Default Cover:
Plastic Cover
Default Fasteners:
Self Reaming and Tapping Screws
Closer Size(s):
1-5 Adjustable
Fluid:
All-Weather Fluid
Piston Diameter:
1-1/2";Mounting Hole Pattern=2-1/2" x 6""
Templating:
Peel-n-Stick templates
Maximum Opening:
100 to 140 deg.

Model: 4011-REG LH AL

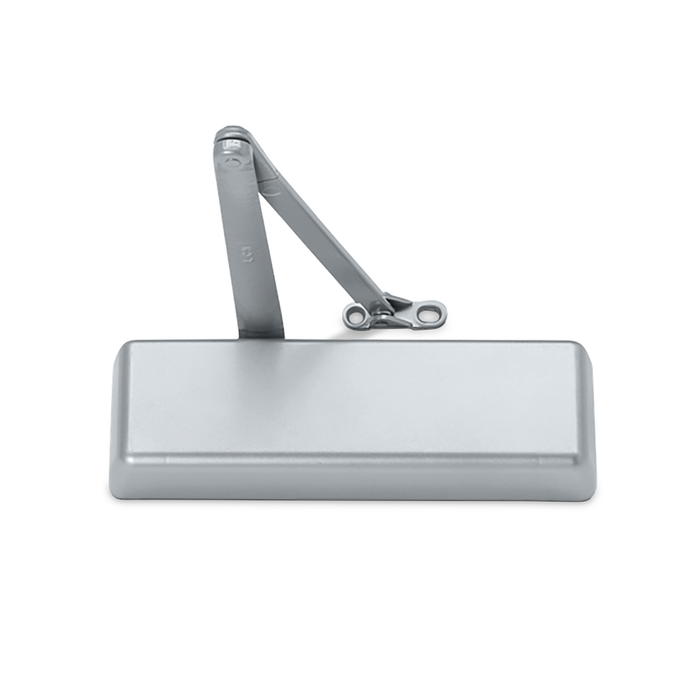

LCN 4011 Surface-Mounted Heavy Duty Door Closer - Powder Coat Finish

Write a Review
$662.00
$377.34
Selected Finish is
Selected Handing is
Adding to cart… The item has been added
FREE SHIPPING for orders over $149
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
Brand:
LCN
Category:
Door Controls
Subcategory:
Surface Mounted Closers
Series:
4010 Series
Grade:
Grade 1
Model(s):
4011
ADA Compliant:
Yes
BAA Qualified:
Yes
Warranty:
30 Years
Mounting Type(s):
Pull Side
Mounting Detail:
Surface - Hinge (Pull Side)
Construction:
Cast Iron
Duty Level:
Heavy Duty
Finish Type:
Painted/Powder Coat
Handed:
Yes
Default Cylinder:
Cast Iron Cylinder Assembly (CYL)
Default Arm:
Regular Arm
Default Cover:
Plastic Cover
Default Fasteners:
Self Reaming and Tapping Screws
Closer Size(s):
1-5 Adjustable
Fluid:
All-Weather Fluid
Piston Diameter:
1-1/2";Mounting Hole Pattern=2-1/2" x 6""
Templating:
Peel-n-Stick templates
Maximum Opening:
100 to 140 deg.

4011 SURFACE-MOUNTED HEAVY DUTY DOOR CLOSER OVERVIEW

The 4010 is LCN’s best performing heavy duty closer designed specifically for institutional and other rugged high traffic applications.

OVERVIEW

The 4010, 4020 and 4110 Series are heavy-duty closers that meet demands for high-traffic installations and each are designed specifically for unique mounting applications. They are UL and cUL listed, meet ANSI/BHMA Grade 1 standards and boast 30-year warranties. They feature a standard plastic cover, with optional plated finishes for the cover, arm and fasteners. They also feature the LCN Green Dial spring force indicator, which takes the guesswork out of adjustment.

FEATURES AND BENEFITS

Body construction

  • Cast iron cylinder with full-complement bearing
  • 1-1/2” diameter piston
  • Double heat-treated steel pinion journal

Quality and durability

  • All-weather fluid
  • LCN patented Green Dial spring force indicator
  • 30-year warranty

Installation

  • Application specific handed
  • Peel-n-stick template and standard plastic cover
  • Adjustable spring sizes 1-5 or 6 only

SPECIFICATIONS

  • Sized cylinders for interior doors to 5'0'' and exterior doors to 4'0''
  • Non-sized cylinder is adjustable for interior doors to 4'6'' and exterior doors to 3'6''
  • Meets ADA requirements
  • UL and cUL listed for self-closing doors with regular or fusible link arms for self-closing doors
  • Tested and certified under ANSI/BHMA A156.4 Grade 1

DESIGNS & FINISHES

  • Powder coat finish offered in standard colors and a large selection of optional custom colors
  • Standard plastic cover and optional handed metal cover available
  • Optional plated finish on metal cover, arm and fasteners
  • Optional SRI primer for installations in corrosive conditions available with powder coat only

MOUNTING/ARM OPTIONS

The 4010 Series mounts hinge pull side, the 4020 Series mounts push side top jamb and the 4110 Series mounts push side parallel arm. Visit the 4010 Series, 4020 Series and 4110 Series catalog pages for mounting details, arm options and accessories.
