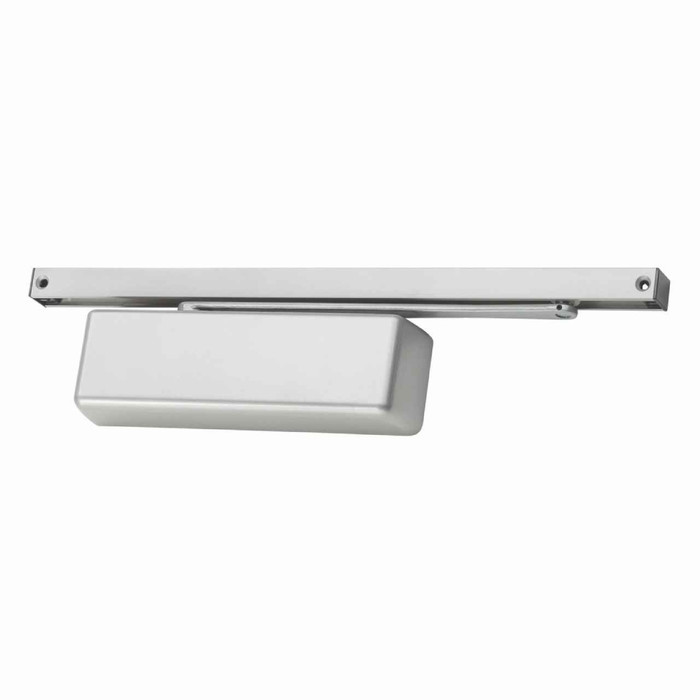

Name: LCN 4013T-PLATED Heavy Duty Surface-Mounted Door Closer with Plated Finish and 1-1/2" Piston
Brand: LCN
SKU: 4013T-652
Price: 811.11 USD
Availability: InStock

Product Overview
FAQs

LCN 4013T Heavy Duty Surface-Mounted Door Closer with Plated Finish and 1-1/2" Piston

Professional Heavy Duty Door Closer Solution

The LCN 4013T represents LCN's best performing heavy duty high security door closer designed specifically for interior doors in institutional and other rugged high traffic applications. This surface-mounted closer features a 1-1/2" diameter piston with cast iron cylinder construction and full-complement bearing for exceptional durability. The unit accommodates interior doors up to 5'0" and exterior doors up to 4'0" with sized cylinders, meeting ANSI/BHMA Grade 1 standards and UL listing requirements.

Professional Features & Benefits

Door Size Compatibility: Sized cylinders accommodate interior doors to 5'0" and exterior doors to 4'0" with non-sized cylinder adjustable for interior doors to 4'6" and exterior doors to 3'6".
Heavy-Duty Construction: Cast iron cylinder with full-complement bearing and double heat-treated steel pinion journal provides exceptional durability for high-traffic commercial applications.
Large Diameter Piston: 1-1/2" diameter piston delivers superior closing force and control for demanding institutional environments.
Grade 1 Certification: Tested and certified under ANSI/BHMA A156.4 Grade 1 standards with UL and cUL listing for reliable performance and code compliance.
LCN Green Dial Technology: Patented Green Dial Spring force indicator eliminates guesswork during adjustment for precise operational control.
All-Weather Performance: All-weather fluid ensures consistent operation across temperature variations and environmental conditions.
Premium Plated Finish: Optional plated finish on metal cover, arm and fasteners provides enhanced appearance and corrosion resistance for demanding applications.
Manufacturer Warranty: 30-year warranty provides long-term confidence and protection for institutional investments.

Technical Specifications

ADA Compliant: Yes
BAA Qualified: Yes
Closer Size: 3
Commercial/Residential: Commercial
Cover Type: Metal
Delay Function: No
Department: Door Hardware
Duty Level: Heavy Duty
Finish Type: Plated
Fluid Type: All-Weather
MAP Policy: Yes
Mounting Detail: Surface - Hinge (Pull Side)
Mounting Hole Pattern: 2-1/2" x 6"
Mounting Location: Pull Side
Mounting Method: Surface Mount
Product Category: Door Controls
Product Group: Door Controls
Product Model: 4013T
Product Subgroup: Door Closers - Surface Mounted
Product Substrate: Iron
Product Type: Surface Mounted Door Closers
Series: 4000 Series
Subcategory: Door Closers - Surface Mounted
Warranty: 30 Year

Professional Applications

Commercial Office Buildings
Educational Facilities
Healthcare Institutions
Retail Establishments
Industrial and Warehouse Facilities
Multi-Tenant Residential Properties
Government and Municipal Buildings

Why Choose LCN Quality?

LCN door closer products deliver professional-grade reliability with cast iron cylinder construction and double heat-treated steel components rated for demanding high-traffic applications. The 30-year warranty demonstrates LCN's confidence in their engineering and manufacturing quality. Engineered for demanding commercial applications where dependable performance is essential, LCN closers meet the rigorous demands of institutional and high-security environments.

Manufacturer Resources

LCN Full Line Catalog

LCN 4000 Series Surface Mounted Closers Catalog Section

Choosing the Right Surface Mounted Door Closer

LCN 4000 Series Metal Template

LCN Installation Instructions/Templates Index

Product Specs

Series:: 4000 Series
Duty Level:: Heavy Duty
ADA Compliant:: Yes
BAA Qualified:: Yes
Mounting Hole Pattern:: 2-1/2" x 6"
Warranty:: 30 Year
Closer Size:: 3
Mounting Detail:: Surface - Hinge (Pull Side)
Mounting Location:: Pull Side
Subcategory:: Door Closers - Surface Mounted
Product Group:: Door Controls
Product Subgroup:: Door Closers - Surface Mounted
Product Type:: Surface Mounted Door Closers
Finish Type:: Plated
Fluid Type:: All-Weather
Commercial/Residential:: Commercial
MAP Policy:: Yes
Product Model:: 4013T
Cover Type:: Metal
Delay Function:: No
Mounting Method:: Surface Mount
Product Category:: Door Controls
Product Substrate:: Iron
Department:: Door Hardware

LCN 4013T-652 – Frequently Asked Questions

1) What size door will the LCN 4013T door closer handle?

With sized cylinders the 4013T covers interior doors up to 5'0" wide and exterior doors up to 4'0". The non-sized cylinder version adjusts for interior doors to 4'6" and exterior to 3'6". The closer ships as size 3, so on a wide institutional interior opening it's within range, but a 5-foot exterior leaf is beyond what this closer is rated to control.

2) Which side of the door does the LCN 4013T mount on, and what is the hole pattern?

It's a surface closer for pull side, hinge side mounting, and the mounting hole pattern is 2-1/2" x 6". If your existing closer used a different pattern you'll be drilling fresh holes or adding a plate. The 4013T is a track closer, so the track mounts to the frame face on the pull side rather than using a parallel arm bracket on the push side.

3) Do I need to specify handing when ordering the LCN 4013T track closer?

Yes. Handing is a required selection, right hand or left hand. Track closers are hand specific because the track and arm geometry are cut for one swing direction, so the wrong hand will not install. There's also a Double Egress arm option for double egress frame pairs where the two leaves swing opposite ways.

4) What track and arm options do I have to pick for the 4013T?

Four tracks: standard track, hold open track, track with bumper, and hold open track with bumper. Arms are standard track arm or double egress arm. Pick hold open where you want the door to stand open at a set point (a classroom or loading corridor), and a bumper track where you need a built in stop so the door does not overswing into a wall or another fixture. All three selections, handing, arm, and track, are required on the order.

5) Is the LCN 4013T ADA compliant and Grade 1 certified?

The 4013T is ADA compliant and tested to ANSI/BHMA A156.4 Grade 1, with UL and cUL listing. It's also BAA qualified, which matters on federally funded work with domestic sourcing requirements. Note that ADA opening force still depends on how the closer is adjusted in the field, which is where the Green Dial spring force indicator helps.

6) What is the closest heavy duty track-mounted alternative to the LCN 4013T for a pull-side slide track opening?

The LCN 4013T is a heavy duty surface closer mounted on the hinge (pull) side and ordered with a track and track arm. The closest track-style peer is the Corbin Russwin DC5230, a Grade 1 surface closer with a slide track arm standard and pull side mounting, listed for 1-3/4 inch doors. The Dorma 8916-JT is also a Grade 1 heavy duty pull side closer using a jamb track with frame face mounting and a flat non-hold open arm, adjustable size 1 through 6, whereas the 4013T is a sized closer at size 3.

7) If the LCN 4013T is more closer than a light traffic interior door needs, what is a lighter option?

The 4013T is a heavy duty commercial closer built for rugged high traffic openings. For lighter interior traffic, the BEST SL6000 Series is a Grade 1 light duty surface closer with adjustable spring sizes, the Norton Rixson 160 Series is a Grade 1 light duty light commercial closer with adjustable spring, and the Falcon SC91A is a Grade 3 light duty cast aluminum closer. Medium duty choices include the BEST HD7000 Series Grade 1 with adjustable spring power and backcheck, the Sargent 1131 Grade 1, and the Falcon SC81A Grade 1 cast aluminum closer.

8) The LCN 4013T is a sized closer at size 3. What heavy duty closers offer an adjustable spring size range instead?

The 4013T is supplied at closer size 3. If you would rather set spring power in the field across a range of door widths, the BEST EHD9000 Series is an extra heavy duty Grade 1 closer with adjustable spring sizes 1 through 6, the Imperial USA TC4300 Series is a heavy duty Grade 1 size 1 through 6 ADA closer, the Dorma 8916-JT adjusts size 1 through 6, and the Sargent 1431 Powerglide heavy duty closer has adjustable spring power. Design Hardware's 116 and 416 Series are heavy duty tri-packed non-hold open arm closers.

9) Does the LCN 4013T mount on the push side or top jamb like a tri-mount closer?

No. The 4013T is a pull side, hinge side surface mounted closer using a track. Closers that ship for regular, parallel, or top jamb mounting from one carton include the Dexter DCH1000 and DCH4000 Grade 1 tri-mount surface closers, the Norton Rixson 1601P Grade 1 tri-mount closer with 180 degree swing, the Norton Rixson 8501A Grade 1 tri-mount closer with adjustable size 1 through 6 spring, and the Arrow DCN325 Grade 1 closer with regular and parallel arm tri-pack.

10) Which closers should I not treat as substitutes for the LCN 4013T?

Several items in the closer aisle will not replace the 4013T on a heavy duty institutional door. The Arrow DCN500DP is a parallel drop plate for the DCN500, a mounting accessory rather than a closer. Stanley Security 327 and 341 are wardrobe pivots, not closers, and the Stanley 57-0100 item is a box of steel machine screws for architectural hinges. Among actual closers, the Cal-Royal 400 Series is Grade 2 and the Falcon SC91A is Grade 3 light duty, while the 4013T is certified to ANSI/BHMA A156.4 Grade 1.

11) Does the LCN 4013T have delayed action?

No delay function on the 4013T. If you need a slow initial close for an accessible entrance, a healthcare room, or anywhere a slower sweep helps a wheelchair user clear the opening, this is not the closer for it. From the comparable closers we carry, the Orca BHDC1958DA/PA and BHDC2011DA/PA are delayed action surface closers.

12) What finishes does the LCN 4013T plated closer come in?

Six plated finishes on the metal cover, arm and fasteners: 632 bright brass, 633 satin brass, 639 satin bronze, 646 satin nickel, 651 bright chrome, and 652 satin chrome. If you're standardizing a building, 652 satin chrome and 626-family satin finishes are the usual match for commercial lever trim, while 632 and 633 suit brass trim packages.

13) Will the LCN 4013T hold up on a high traffic institutional door?

That's exactly its application. Heavy duty rating, cast iron cylinder, 1-1/2" diameter piston, full-complement bearing and a double heat-treated steel pinion journal. All-weather fluid keeps closing speed consistent through temperature swings, which matters on a door near an unconditioned vestibule. This is the build you want on school corridors, hospital doors and municipal buildings rather than an aluminum body light duty closer.

14) How does the LCN 4013T compare to other heavy duty surface closers?

The 4013T is a cast iron, track arm, pull side heavy duty closer at a fixed size 3. Several heavy duty comparables instead use adjustable spring sizing with tri-mount arms: BEST EHD9000 and Falcon SC71A are Grade 1 heavy duty, the Sargent 281 is a Grade 1 heavy duty cast iron closer, and the Sargent 1431 Powerglide offers adjustable spring power. Choose the 4013T when the spec calls for a concealed-track look and pull side mounting; choose a tri-pack adjustable closer when one part number has to cover mixed openings.

15) The LCN 4013T has no delayed action. Which comparable closers offer delayed closing?

The 4013T does not include a delay function. If the opening needs extra time before the door starts to close, the Orca Hardware BHDC1958DA/PA is a delayed action closer with a regular arm and parallel bracket for 1-3/4 inch doors, and the BHDC2011DA/PA is a delayed action closer in the same arm configuration and door thickness.

16) I need hold open on the door. Is the LCN 4013T an option, or should I look at a different closer?

The 4013T can be ordered with a hold open track or a hold open track with bumper, so hold open is available within the same closer. If you prefer a hold open arm instead of a track, the Accentra 51 Series uses a tri-packed hold open arm and the Orca Hardware BHDC1958HO/PA is a hold open closer with a parallel bracket for 1-3/4 inch doors. The Stanley Security A45-501HL is furnished with a long hold open arm standard for top jamb mounting.

17) I need a plated finish closer to match brass or nickel trim. How does the LCN 4013T compare to other closers on finish?

The 4013T is offered with a plated finish on the metal cover, arm and fasteners, in 632 bright brass, 633 satin brass, 639 satin bronze, 646 satin nickel, 651 bright chrome and 652 satin chrome. Among the comparable closers, the Dormakaba 7303 Series and 7414 are supplied in a painted finish, and the Arrow DCN314 and DCN325 are furnished less cover.

18) For a double egress pair, is the LCN 4013T the right closer or is there a peer built for it?

The 4013T can be ordered with a double egress arm, which suits a double egress frame while keeping the heavy duty cast iron closer and pull side track mounting. Among comparable heavy duty Grade 1 closers, the Dormakaba 8616 AF86P FC SNB1 689 uses a flat non-hold open arm in a tri-pack, and the Dorma 8916-JT uses a flat non-hold open arm with jamb track frame face mounting, both of which are flat arm designs used where arm projection must stay tight to the door.

19) Is there a Grade 1 barrier free closer alternative to the LCN 4013T for ADA openings?

The 4013T is ADA compliant as a heavy duty Grade 1 closer. Other Grade 1 barrier free options include the Cal-Royal 500S with adjustable back-check, the Cal-Royal N900PBF barrier free hydraulic surface closer, the Calibre CA4001 adjustable spring tension ADA hydraulic closer, and the Calibre CA9901 tri-pack arm size 2 through 5 ADA closer.

20) I buy to Buy American requirements. Does the LCN 4013T qualify, and what do comparable closers list?

The 4013T is BAA qualified, which matters on federally funded work. The comparable closers are catalogued on performance attributes instead: the Sargent 281 is a Grade 1 heavy duty cast iron closer, the BEST HD8000 Series is Grade 1 heavy duty, and the Corbin Russwin DC8200 Series is a Grade 1 surface closer with a double lever regular arm and pull side mounting for 1-3/4 inch doors. If BAA qualification is the deciding factor on your spec, the 4013T is the one to quote.

21) How do I set the closing force on the LCN 4013T correctly?

It uses LCN's patented Green Dial spring force indicator, so you can see the spring setting instead of counting turns. That's what makes hitting an ADA opening force target repeatable across a run of doors, and it lets a maintenance tech verify a setting later without disassembly.

22) Does the LCN 4013T come with a cover?

Yes, a metal cover is part of the closer, and on the plated versions the cover, arm and fasteners carry the plated finish. That's a difference worth noting against closers sold less cover, such as the Arrow DCN314 and DCN325, where the cover is a separate line item.
